Business Services
Business Services let you build custom maps of your business-critical functions. They can include any combination of devices, resources, application components, and other Business Services that you identify as critical to your operations.
Unlike Application Groups, which are automatically generated from discovered connections and update dynamically, Business Services are static and designed entirely by you. They serve as referenceable documentation of your applications — a stable representation that only changes when you edit it manually or configure alerts to respond to dependency changes.
Building Business Services is typically the final step in the Application Dependency Mapping workflow: after discovery has populated your devices, services, and Application Groups, you assemble them into Business Services that represent how your organization delivers value.
Use Business Services to:
- Create services from scratch or from existing Application Groups.
- Relate Business Services to other Business Services, breaking large services into smaller, reusable components.
- Add and remove devices, resources, and application components.
- Customize the layout, connections, and labels on the visualization canvas.

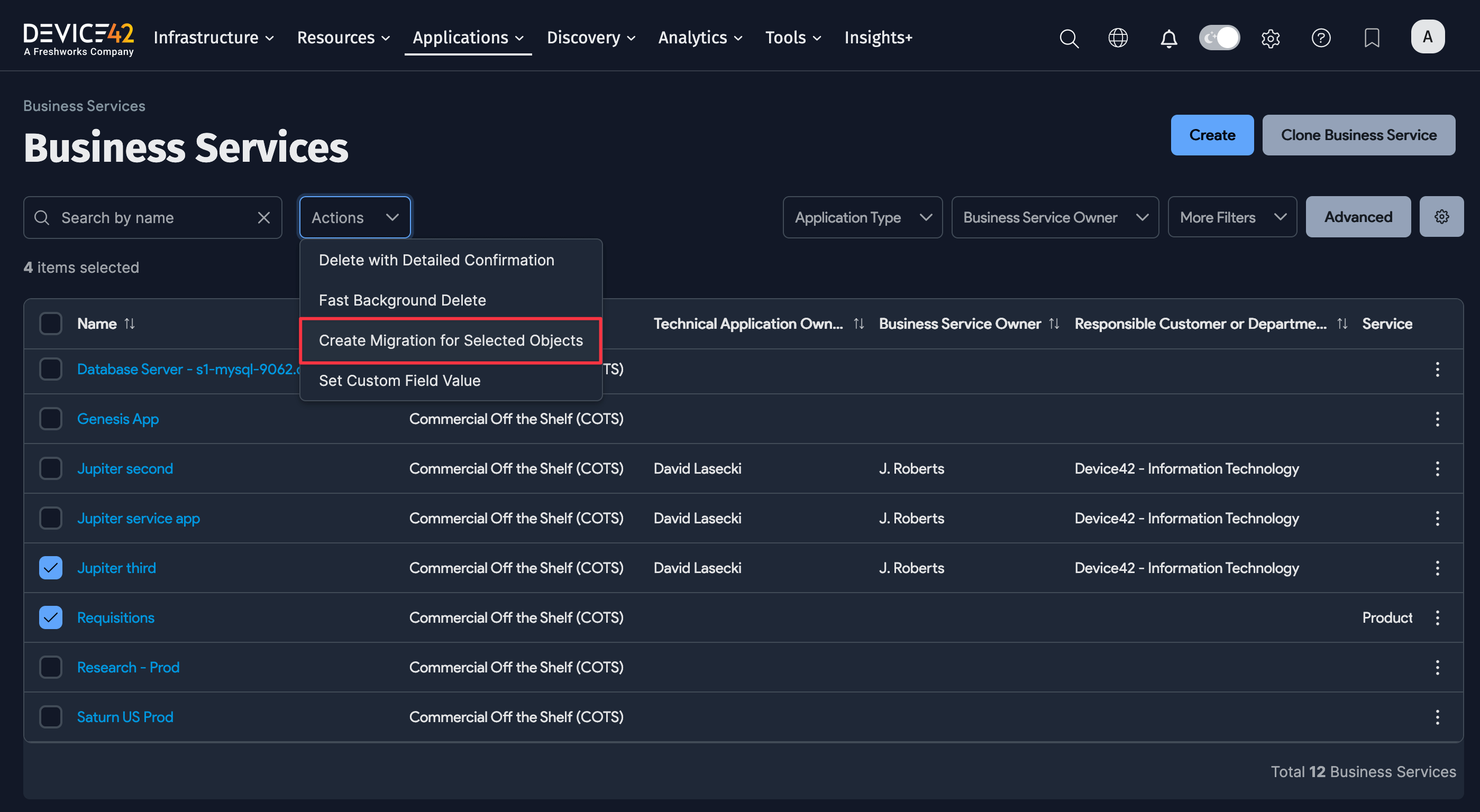

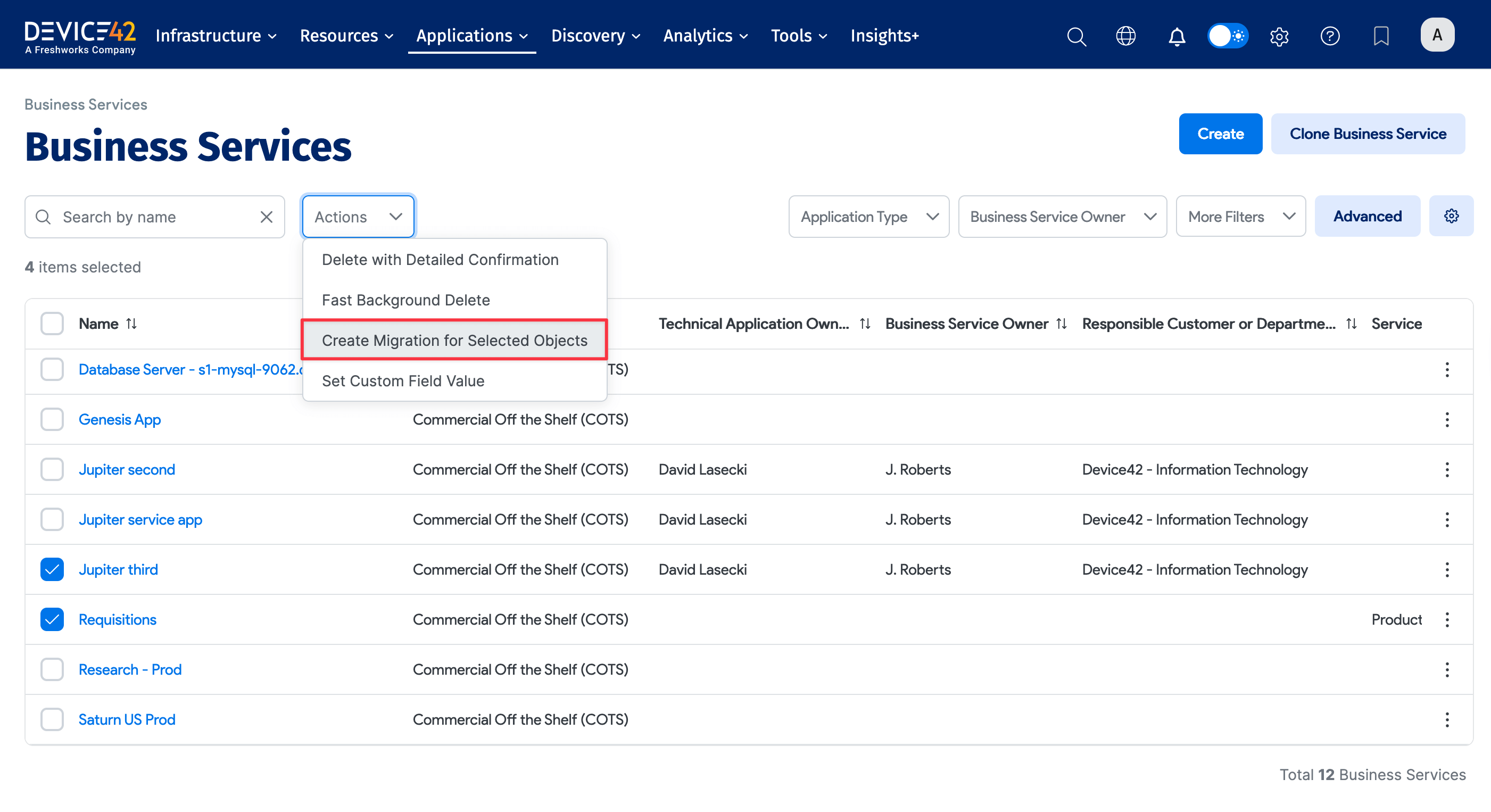

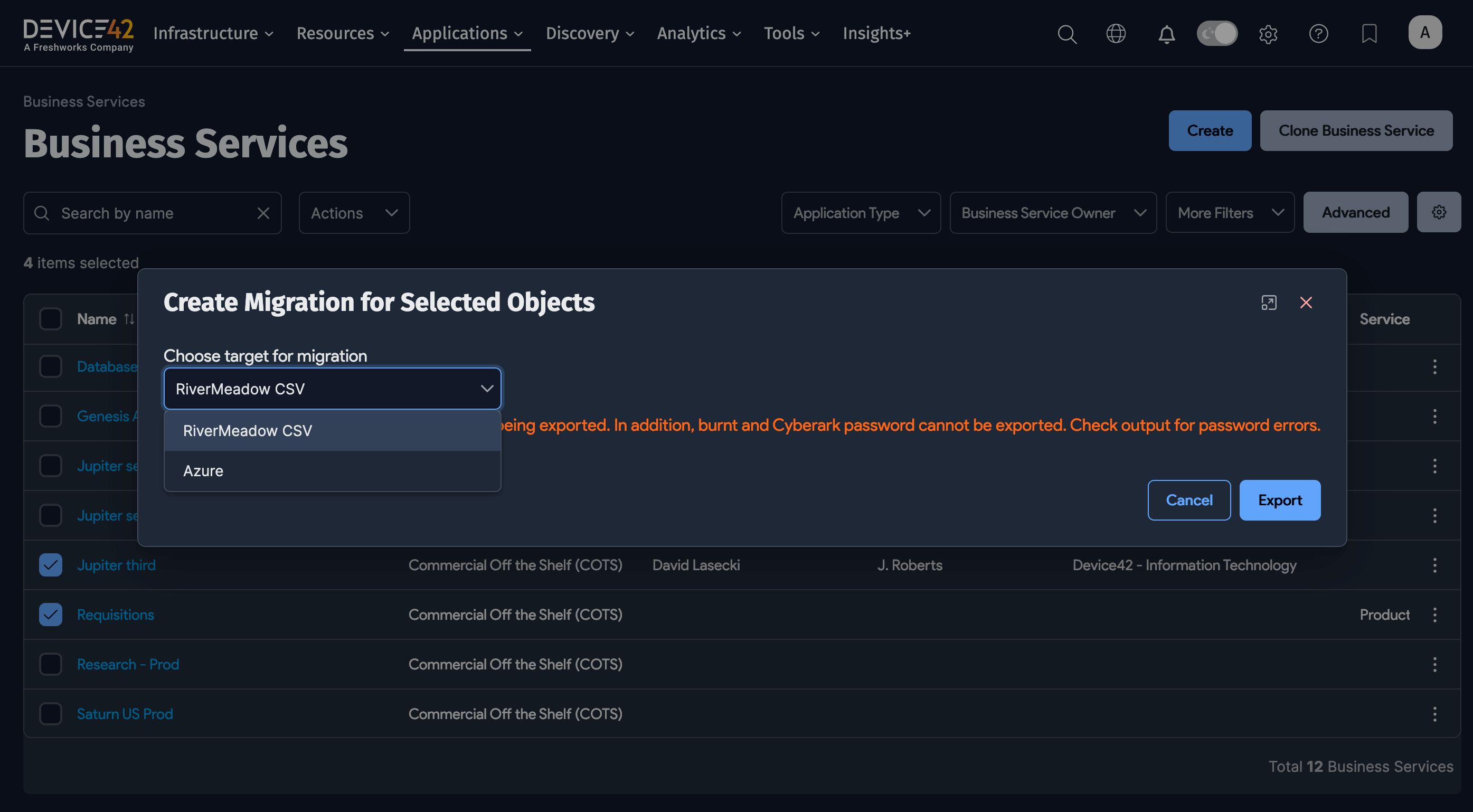

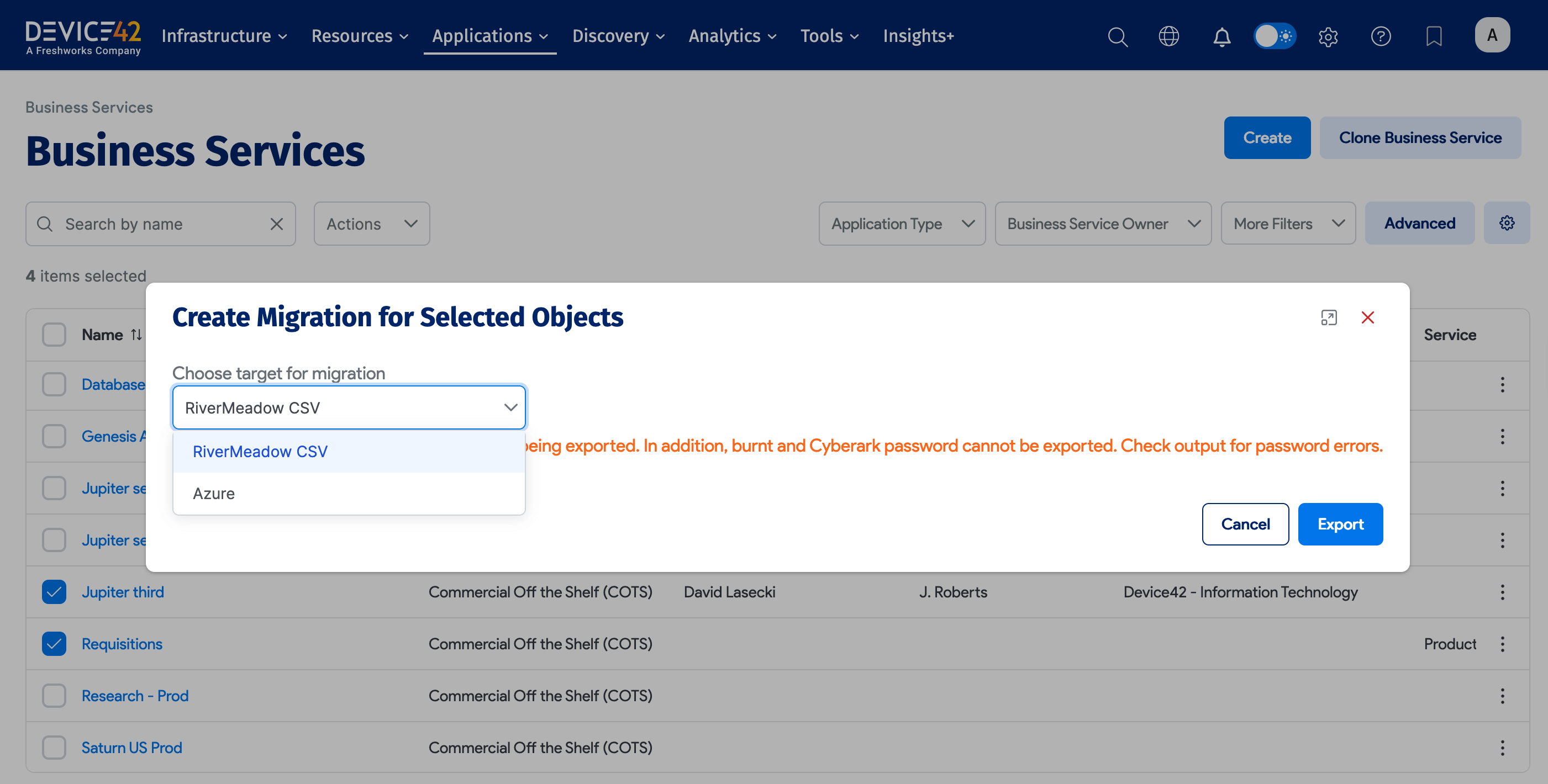

- Migrate Business Services to third-party platforms like Microsoft Azure.
Explore Existing Business Services

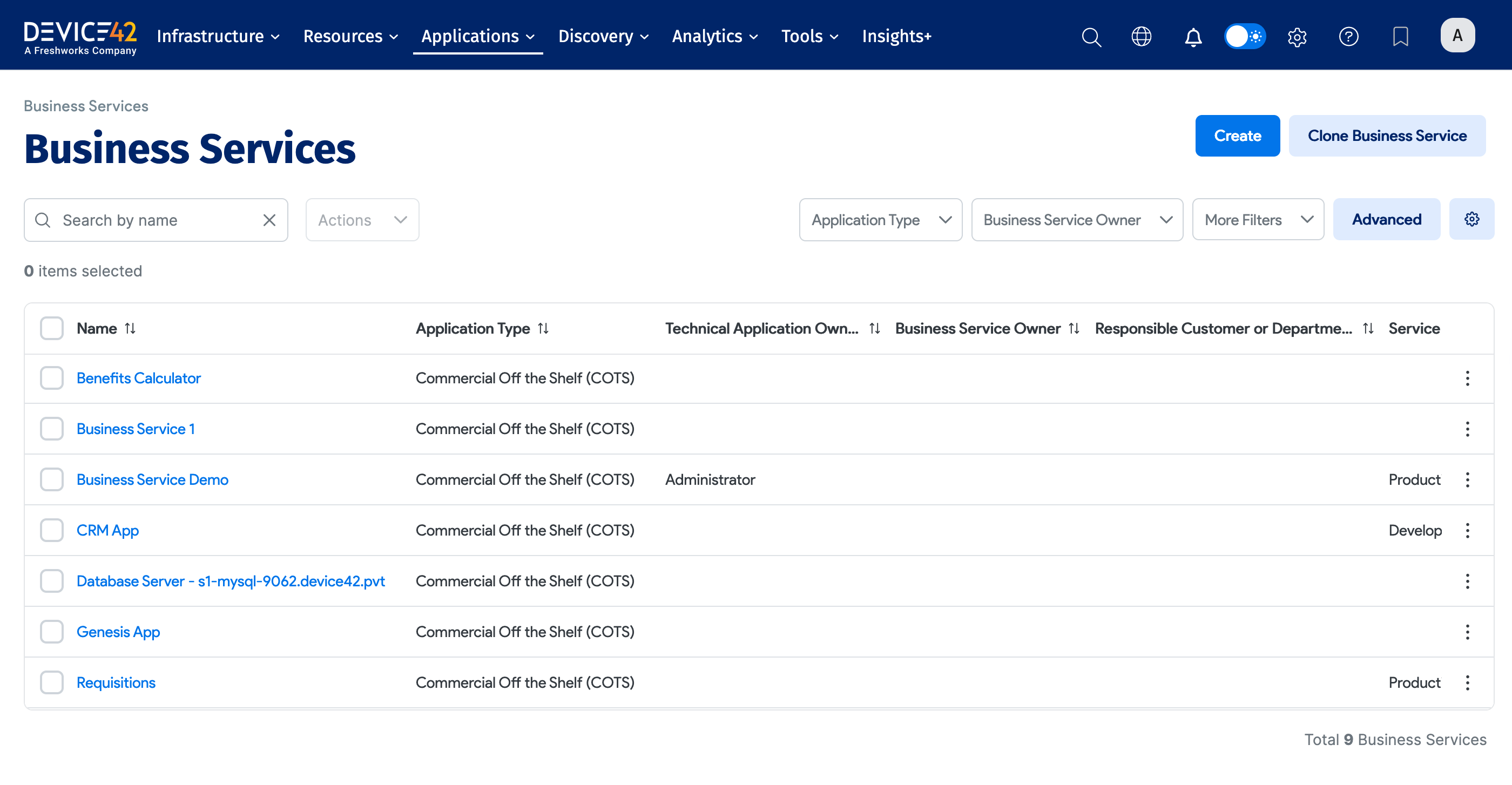

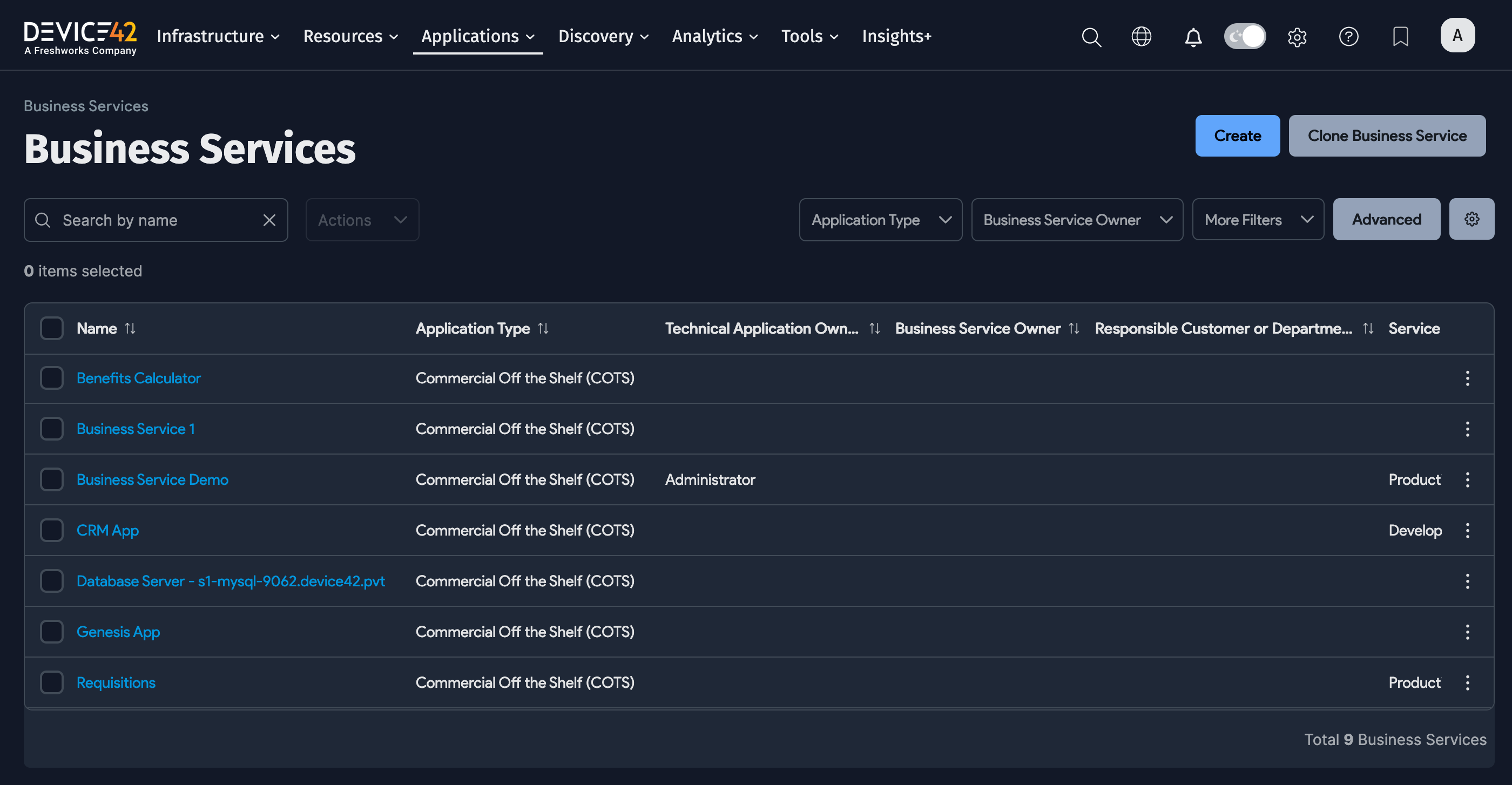

Navigate to Applications > Business Services to view the list page. It shows all your Business Services along with their associated Devices and Application Components. Device42 automatically categorizes Application Components as Database, Application Layer, Web Server, Load Balancer, or Other.

-

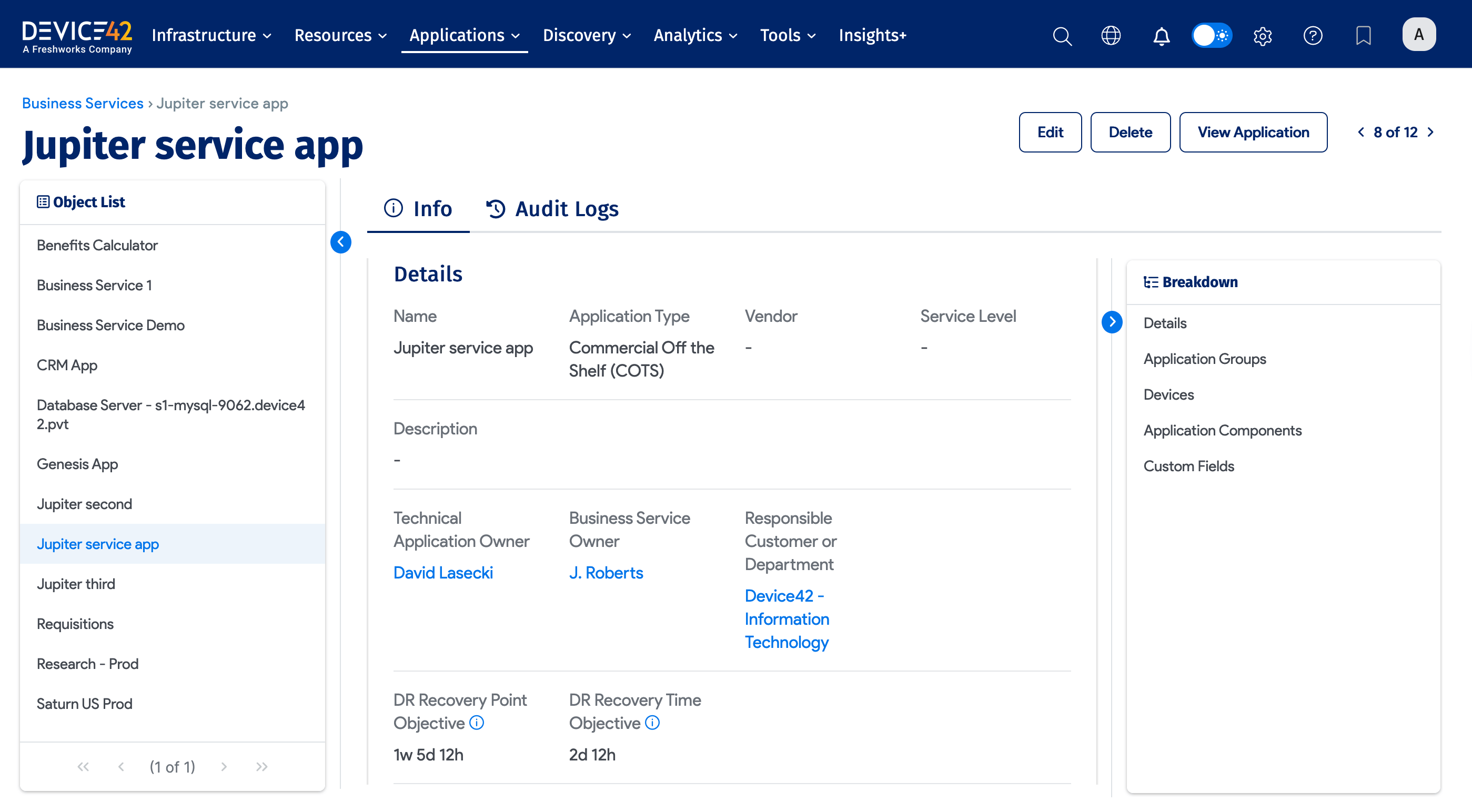

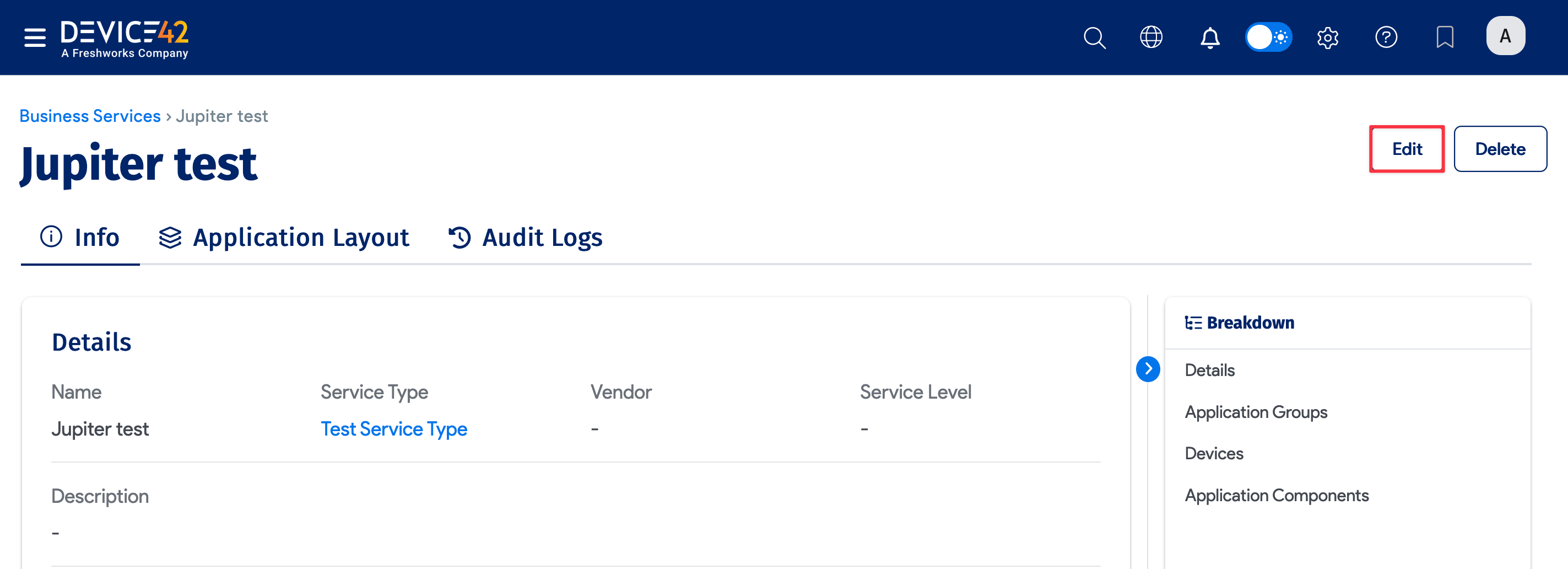

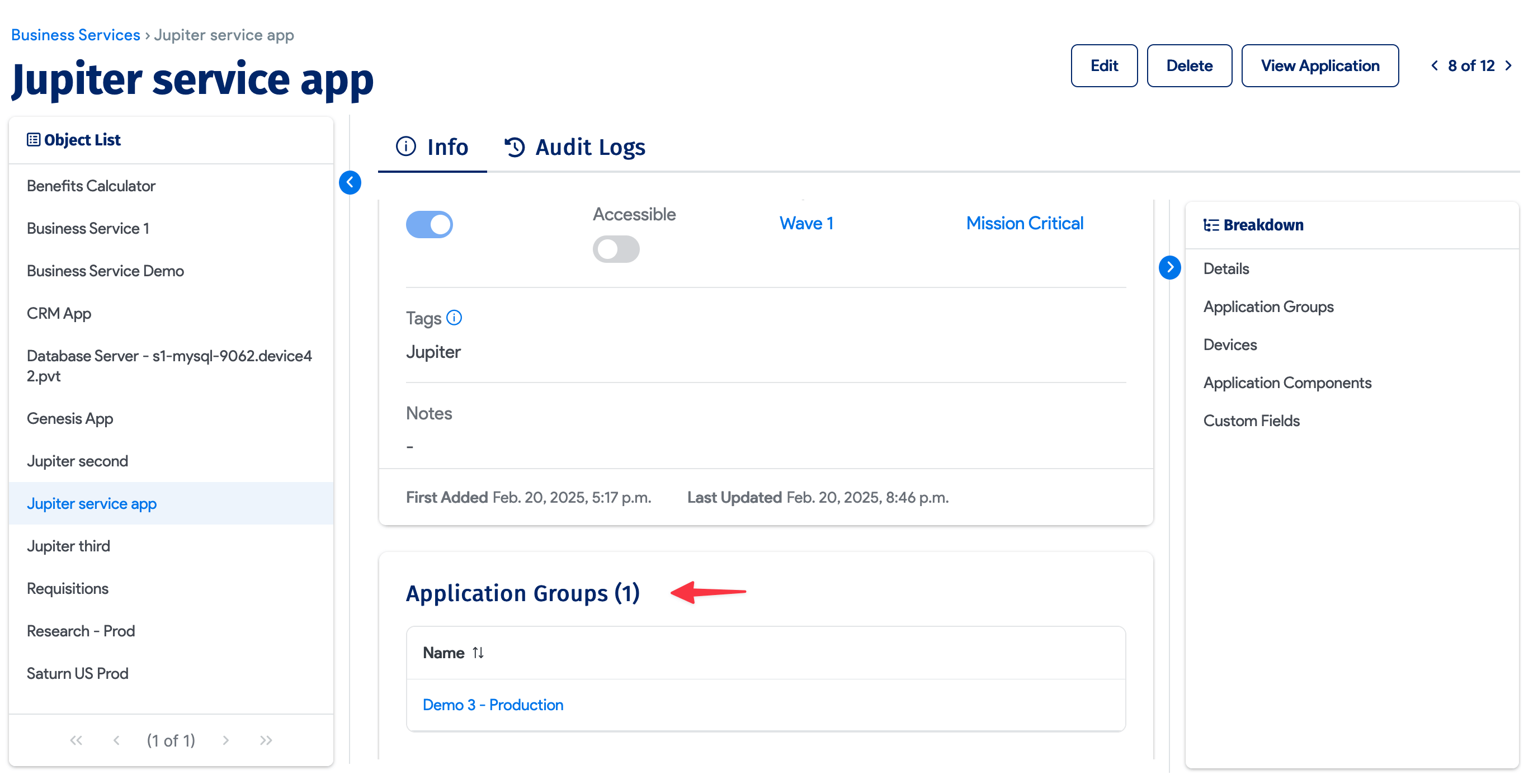

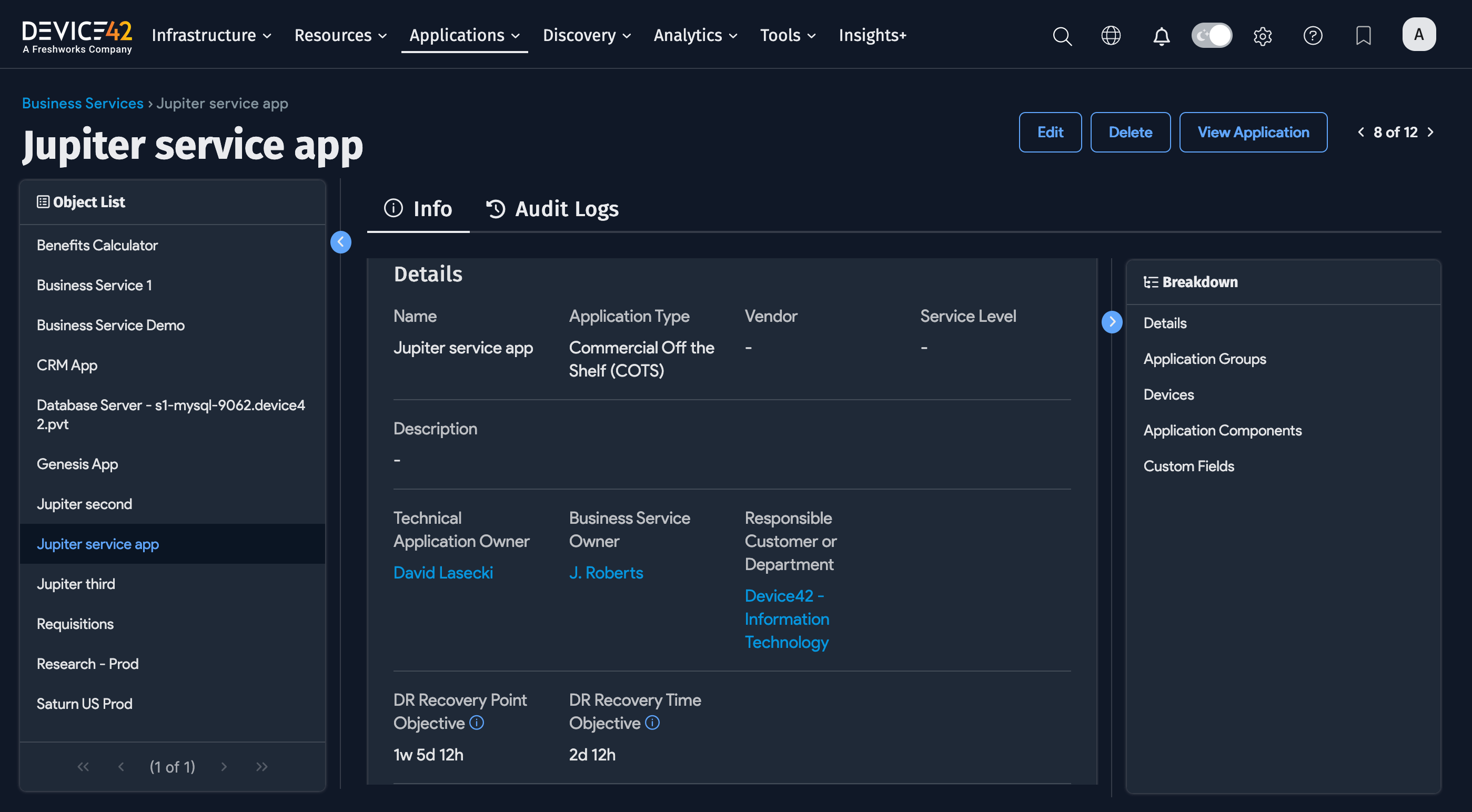

Click a Business Service to open its info panel. The left Object List panel lets you select other Business Services, and the right Breakdown panel links to sections within the selected Business Service.

-
Any associated Business Services, Application Groups, Application Components, Resources, Devices, and more are displayed under Info or are accessible from the Breakdown panel.

-

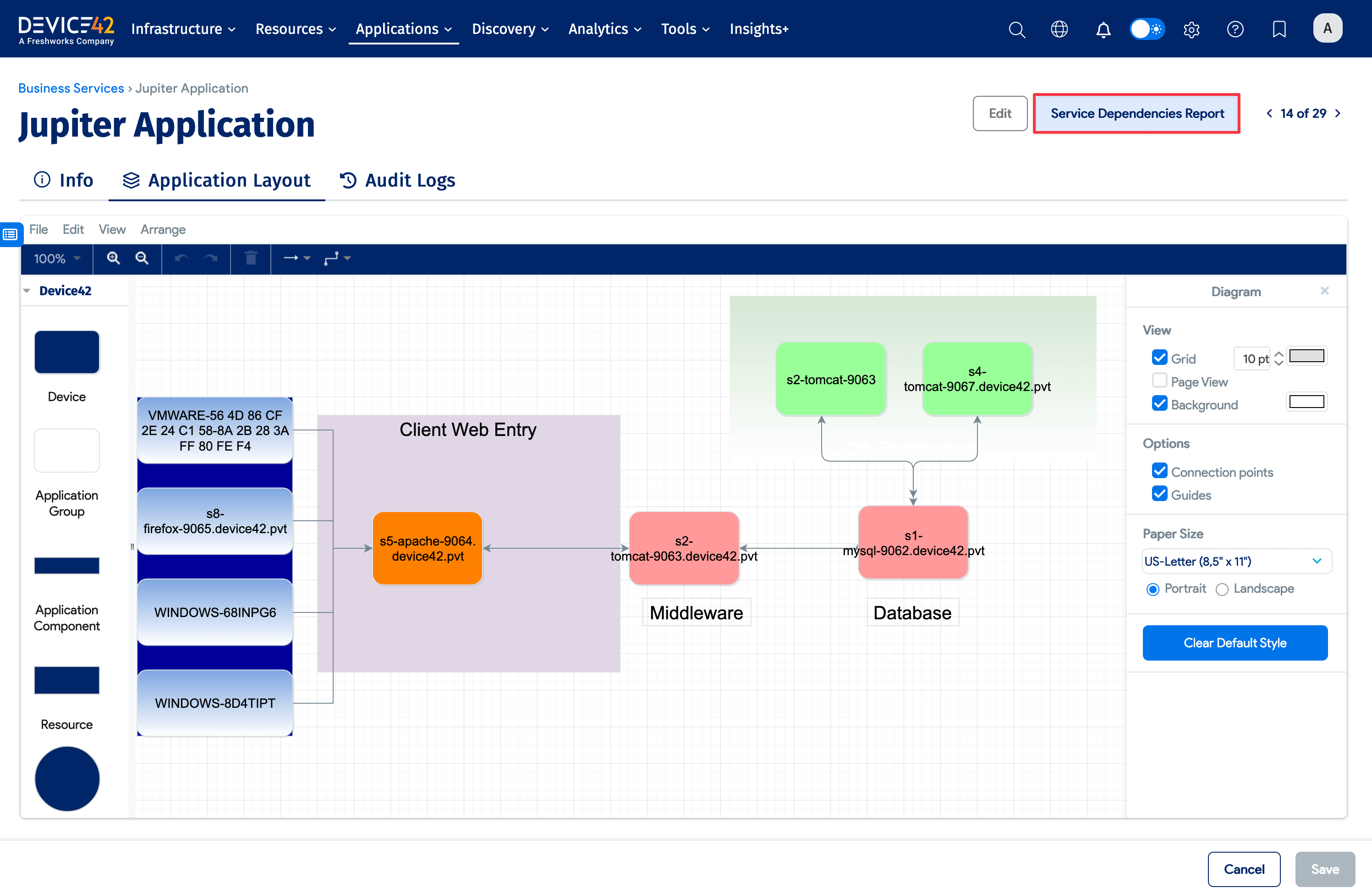

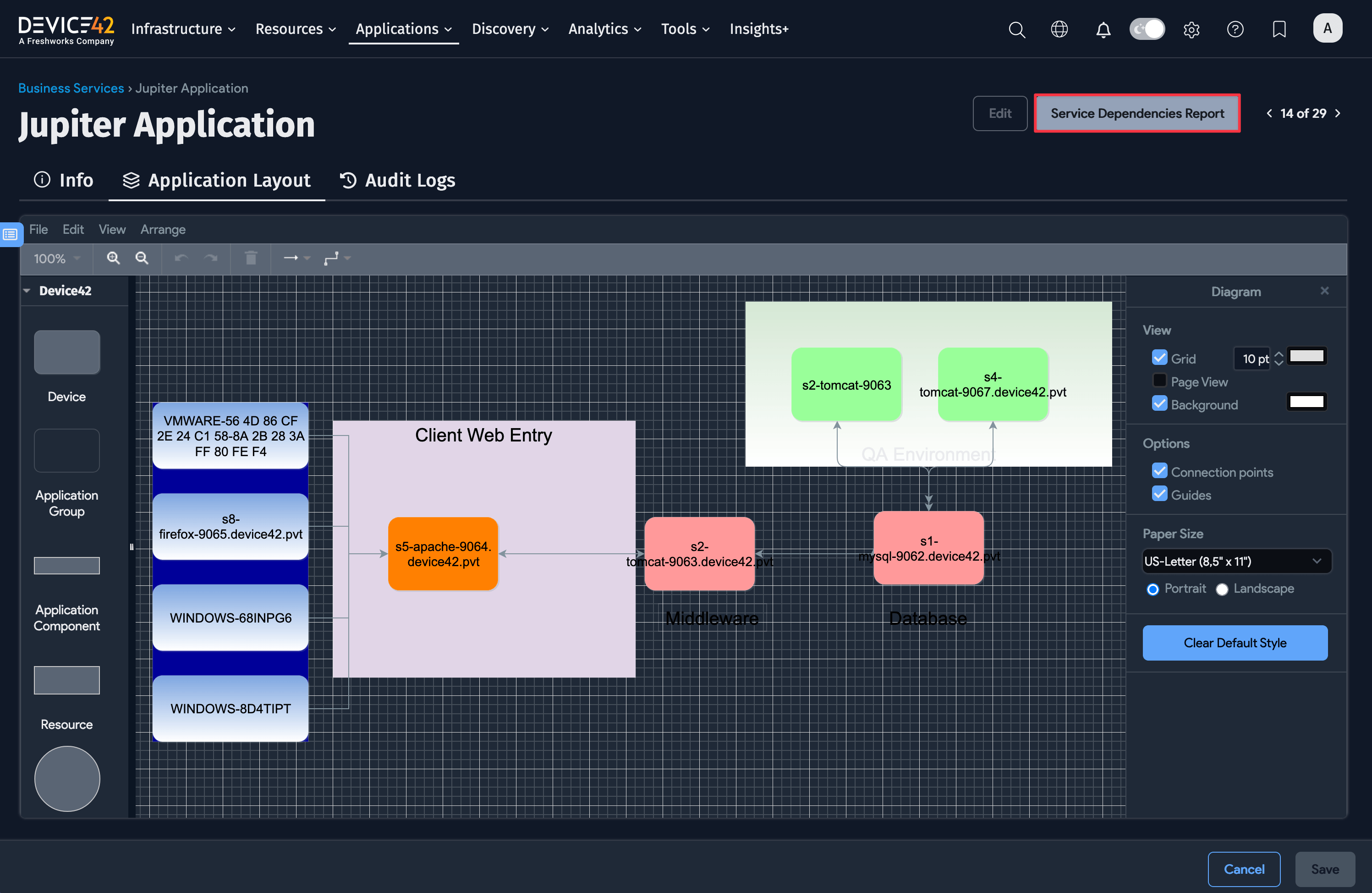

Click View Application to open the visualization canvas. The left panel provides options for adding items to the Business Service. You can also run a Service Dependencies Report to view all communications between devices in the Business Service.

-

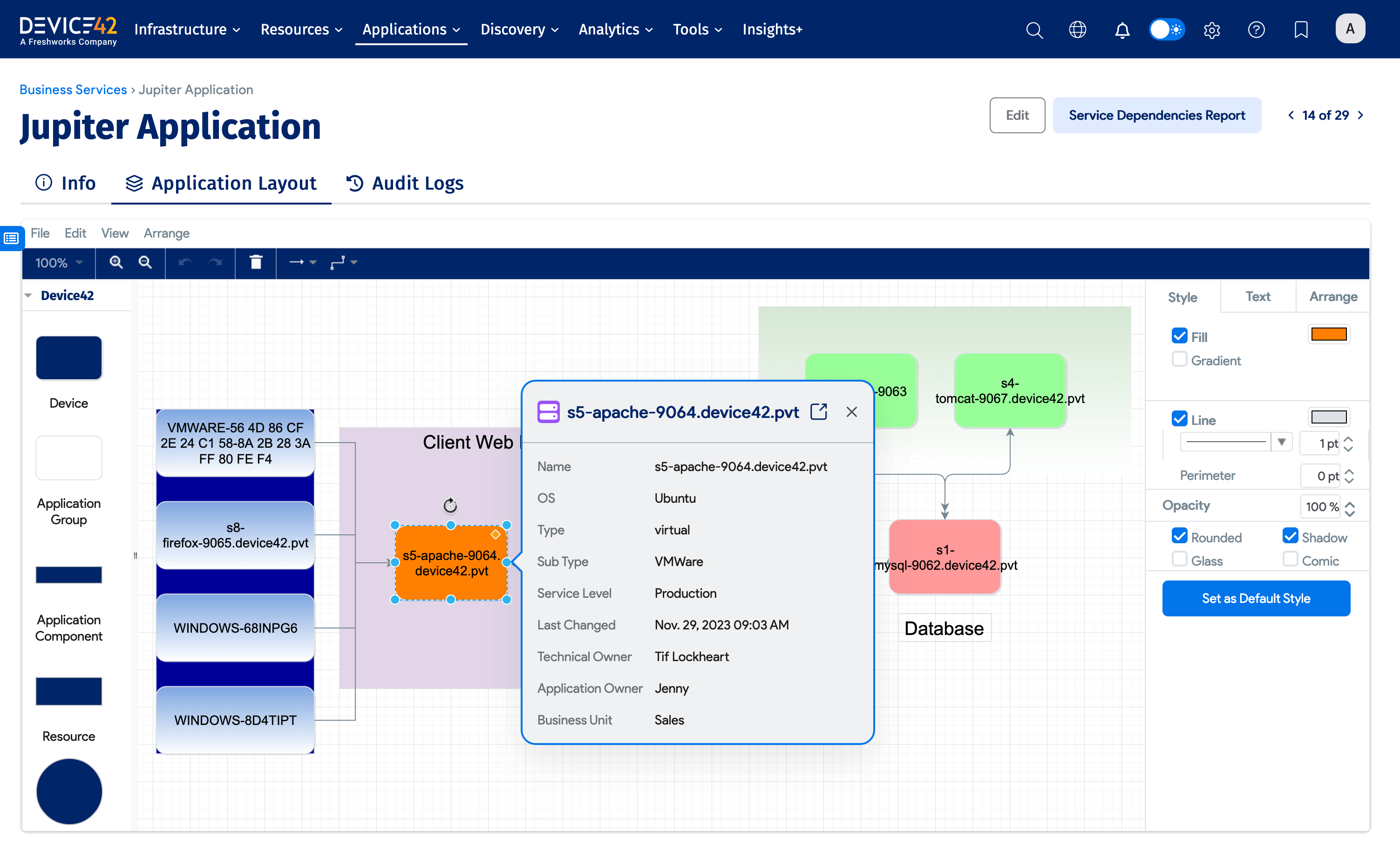

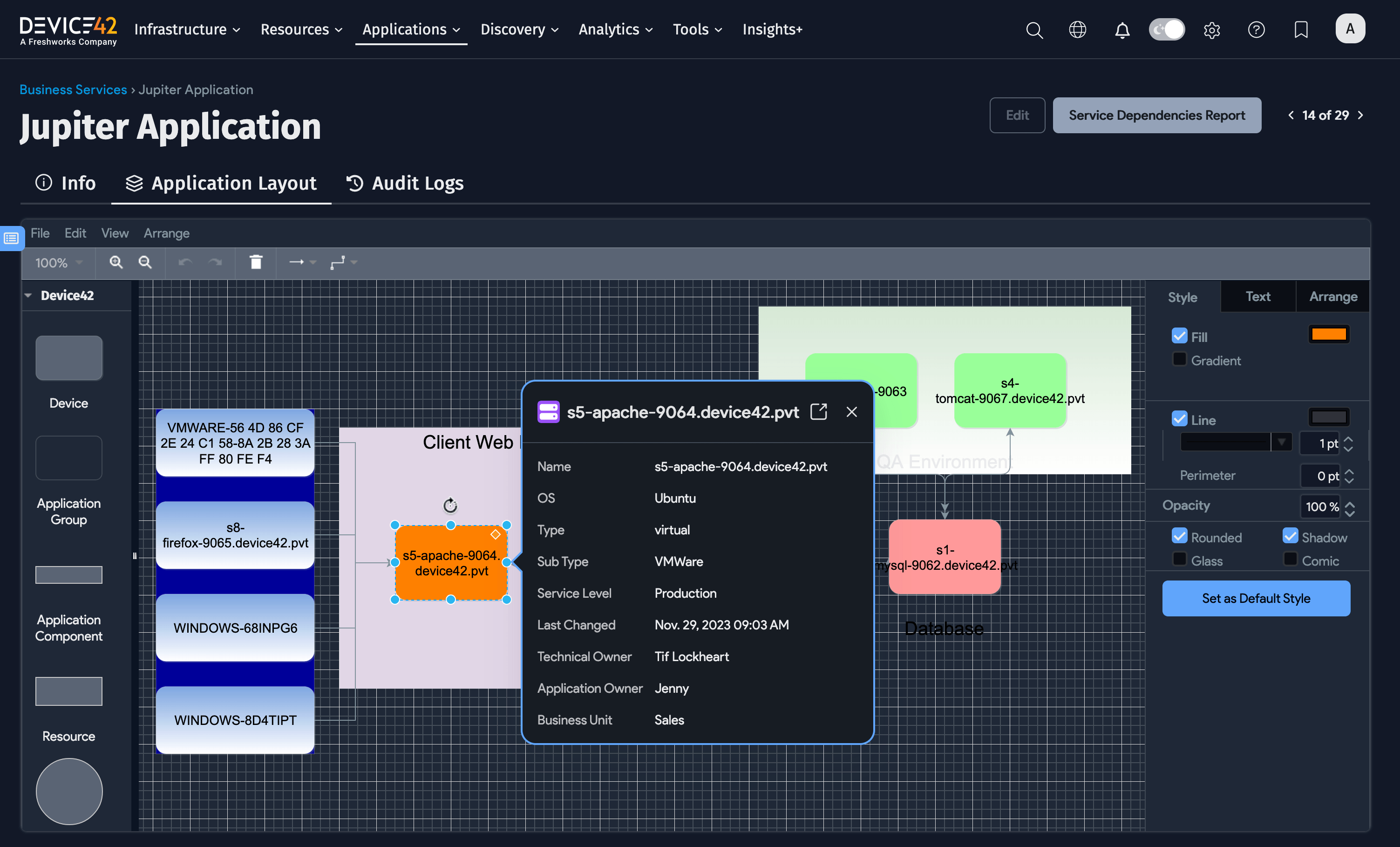

Click any object on the canvas to see its details. Links in the details panel take you to the full view page for that item.

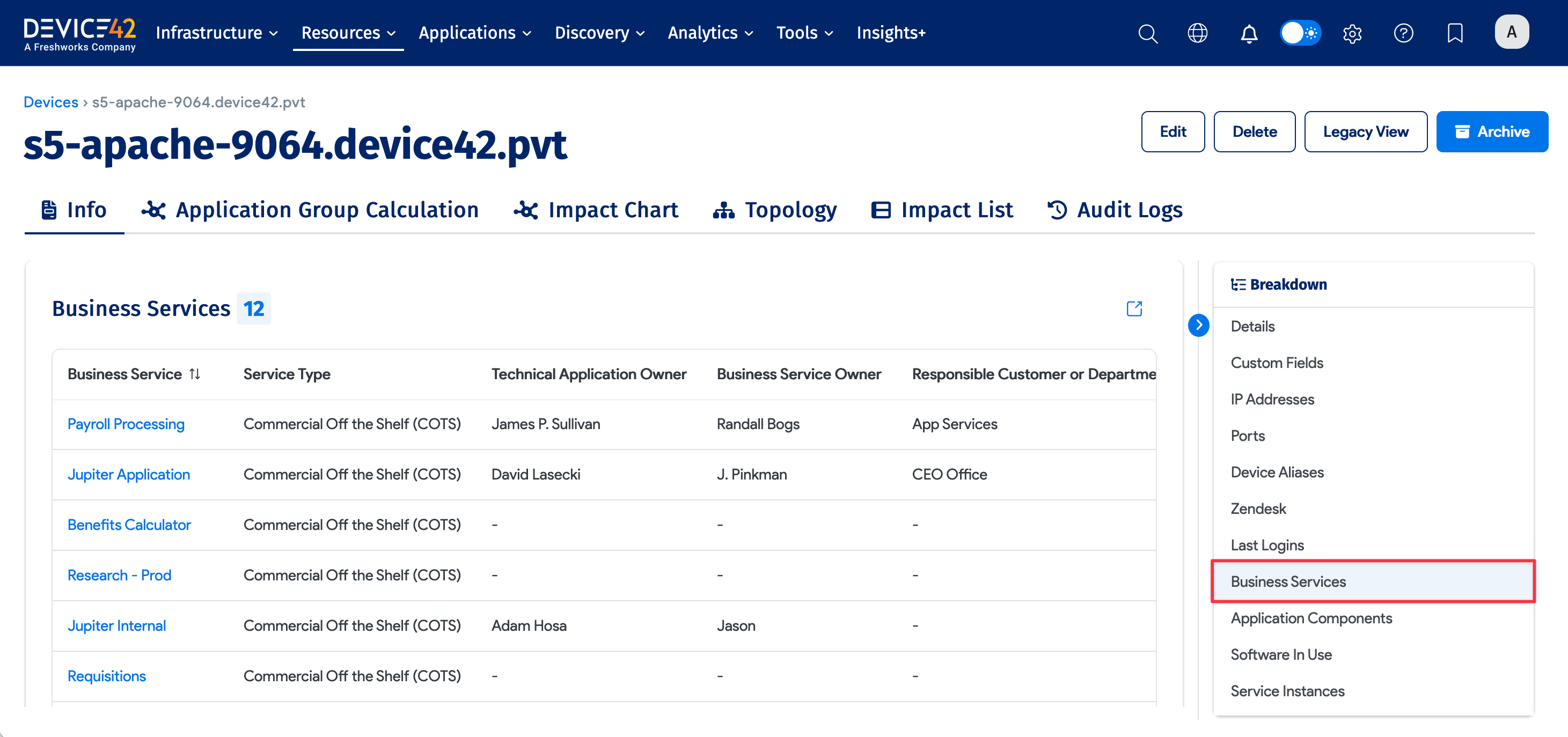

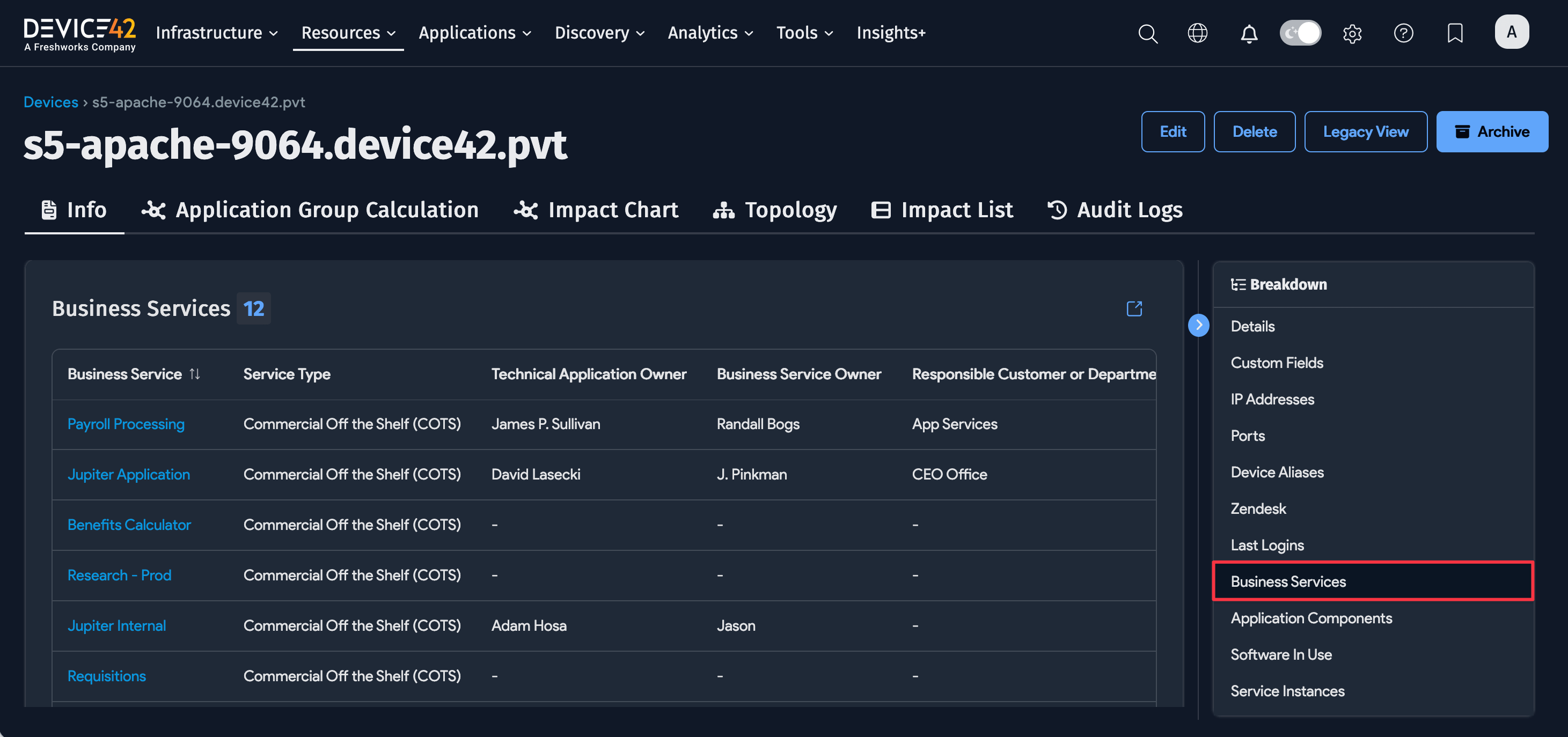

You can also check which Business Services a device belongs to from the All Devices list or the device record itself. On the All Devices list, use the System Column List settings to display the optional Business Services column. Each Business Service in the column links to its details page. From the device record, open the Info tab to see the associated Business Services.

Create a Business Service

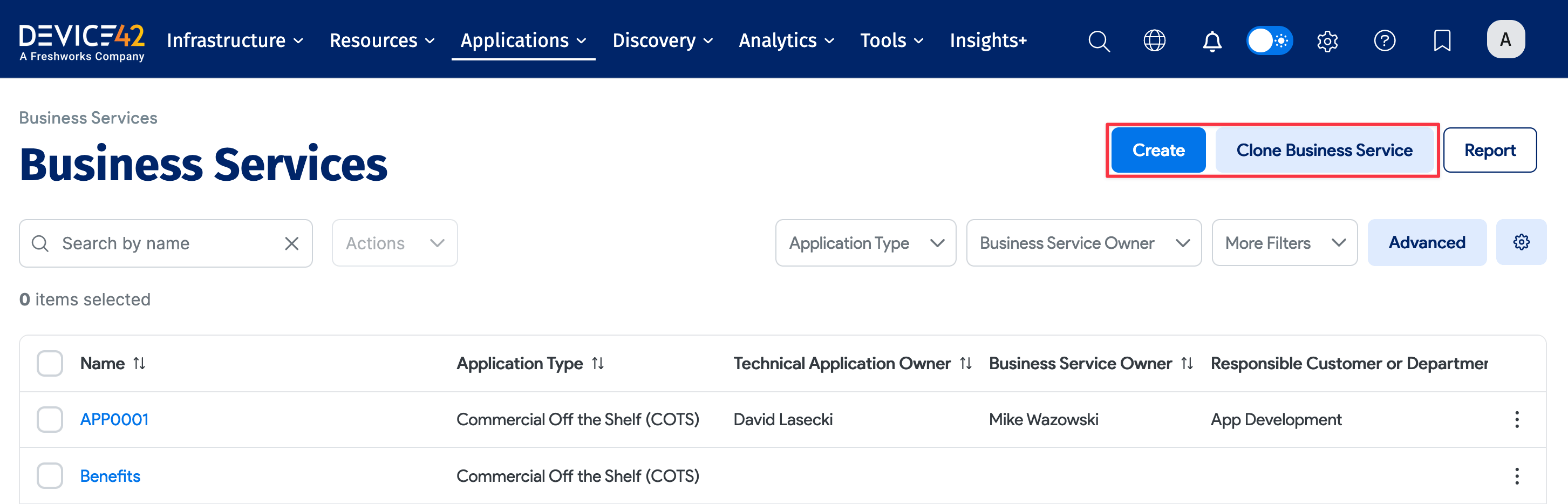

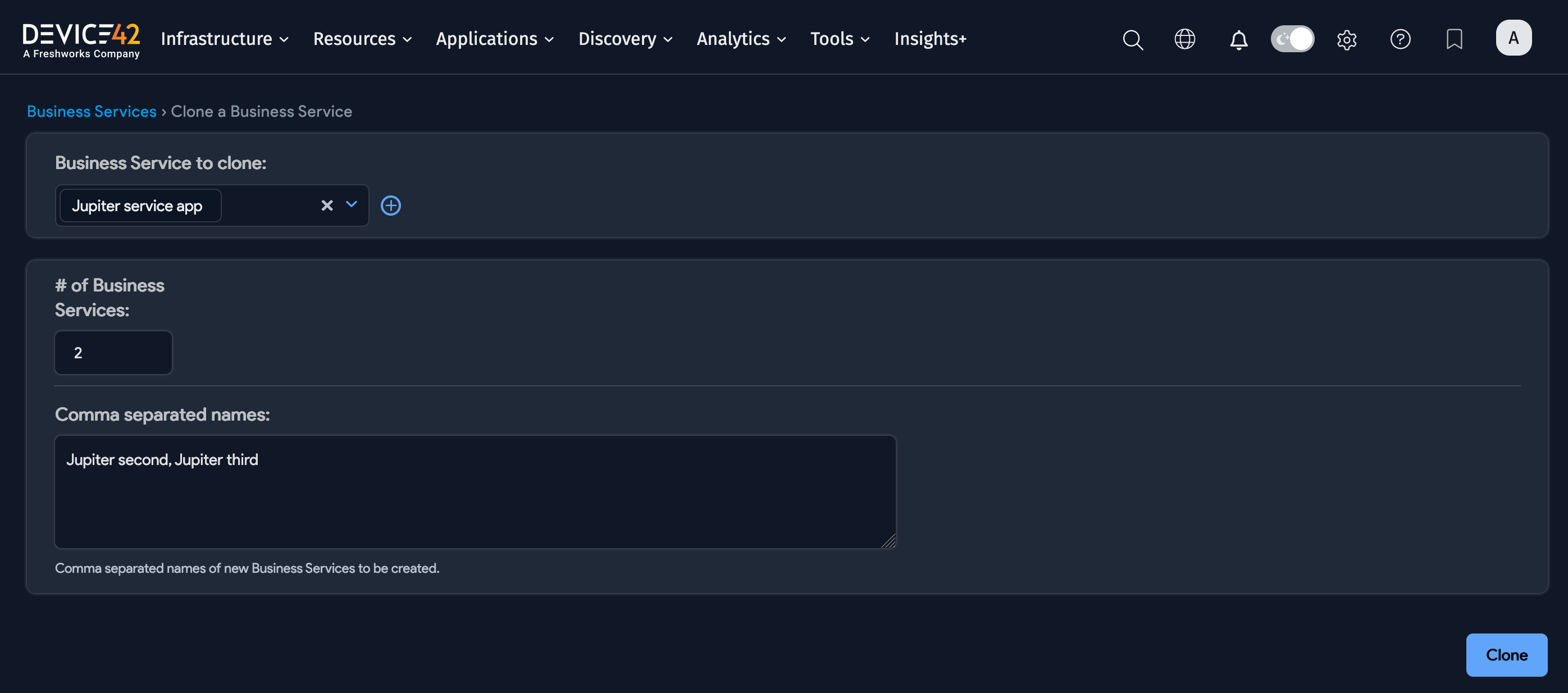

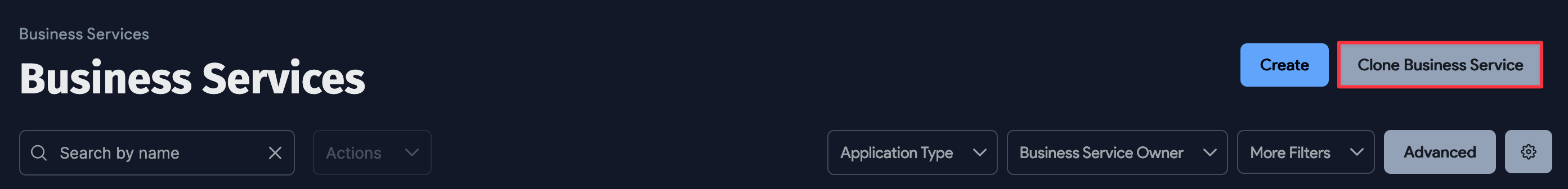

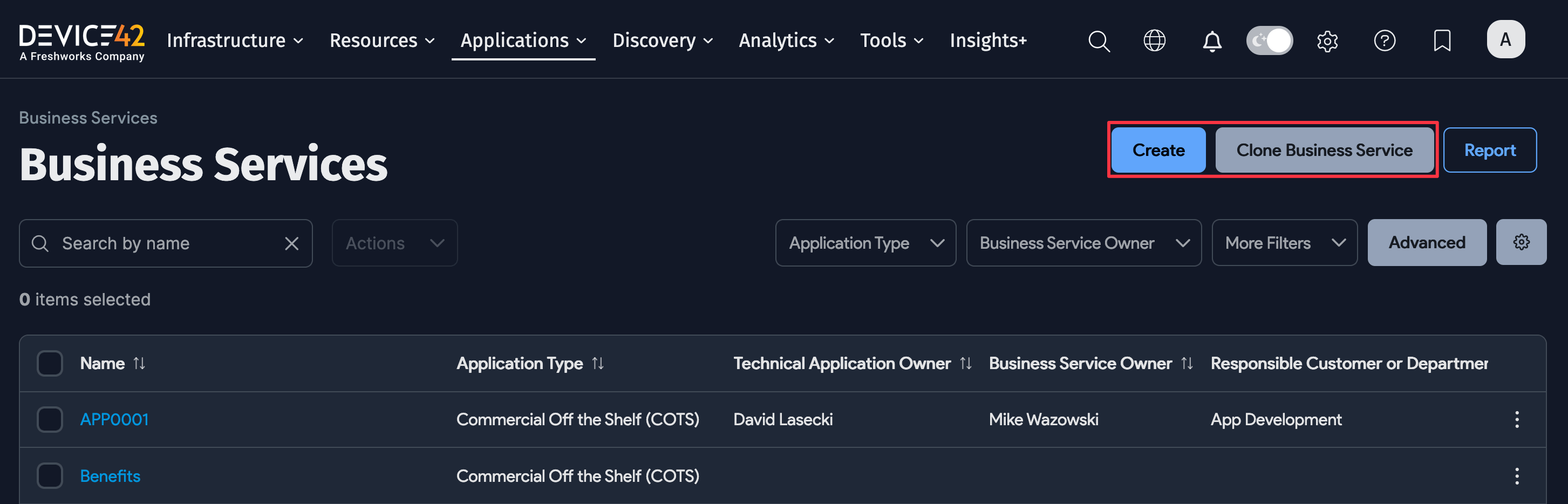

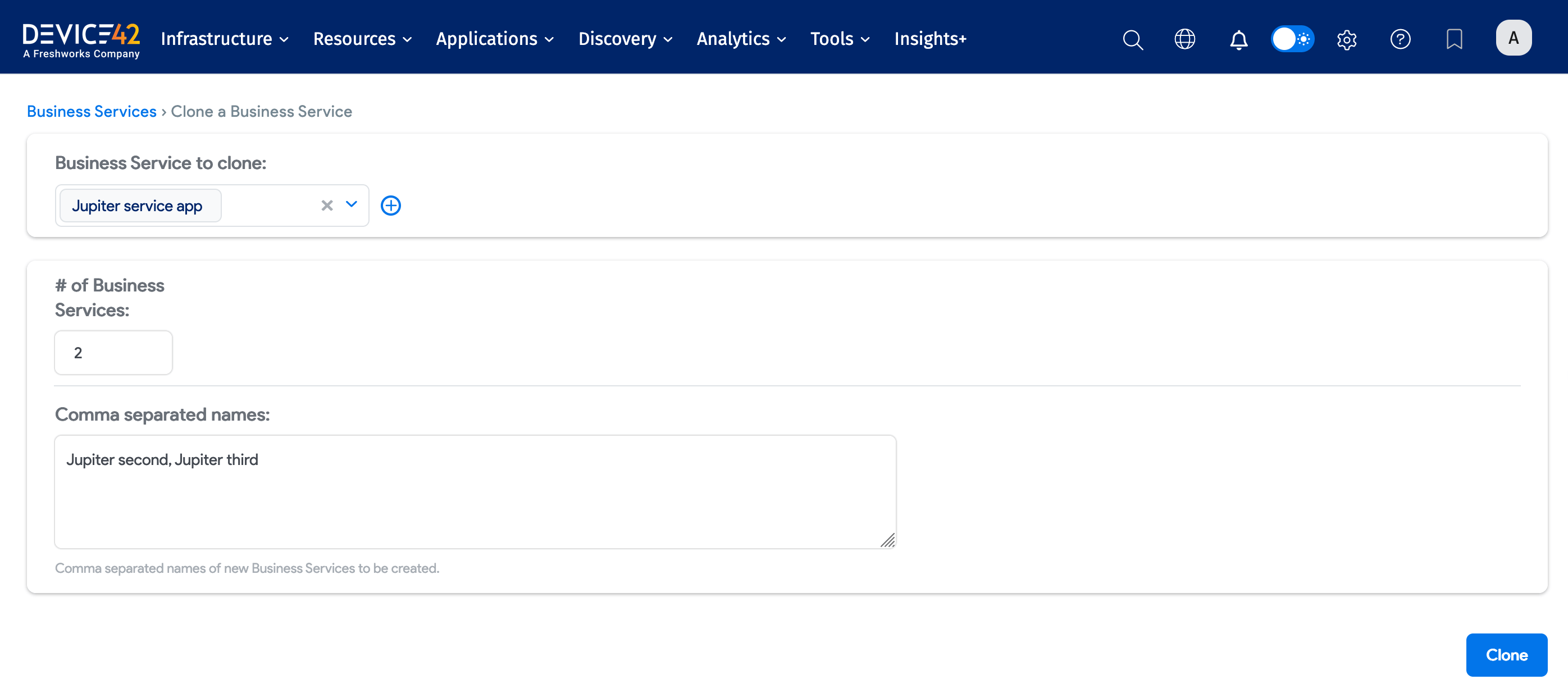

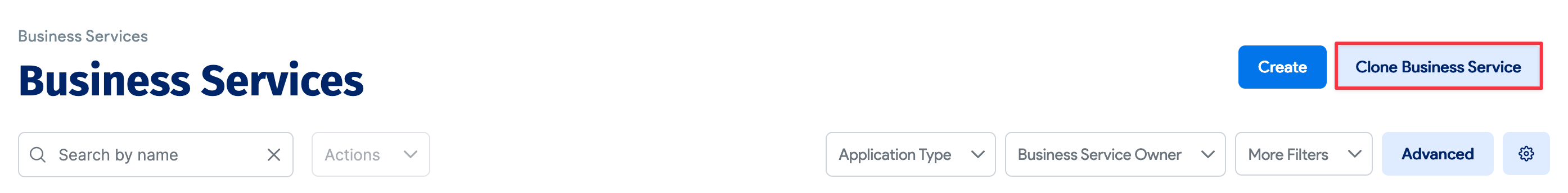

From Applications > Business Services, click Create to define a new Business Service or Clone an existing one to use as a starting point.

Fill out the Business Service Form

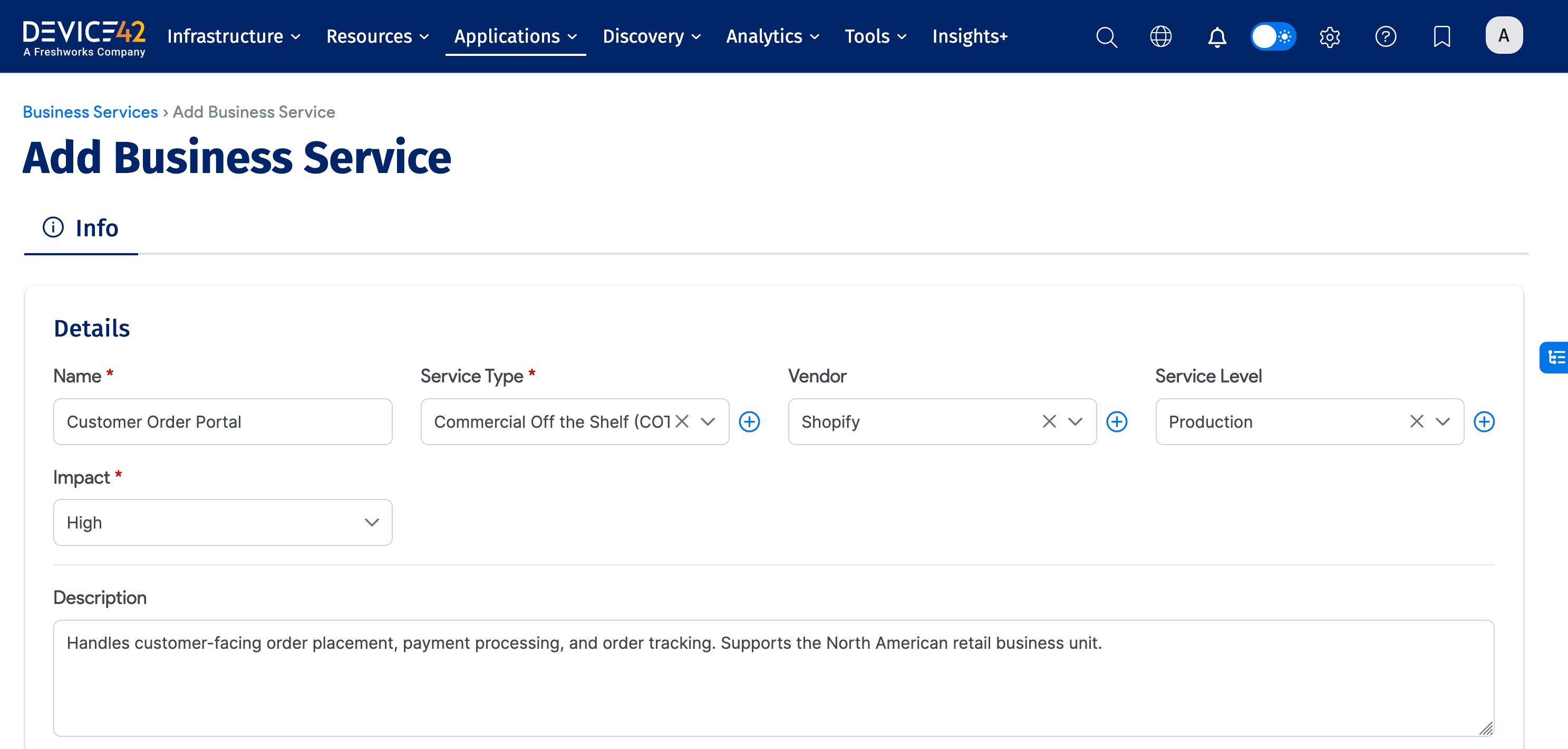

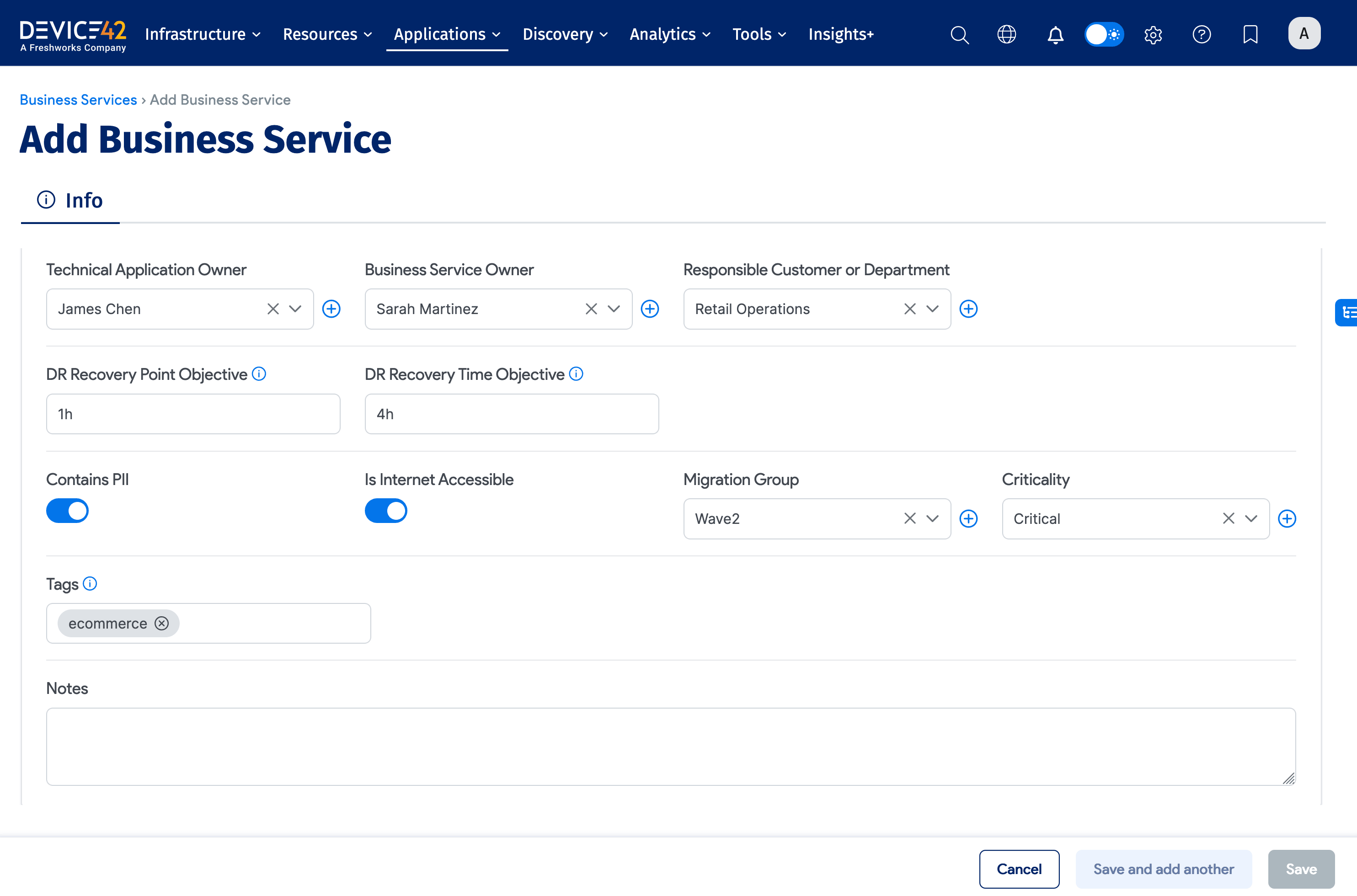

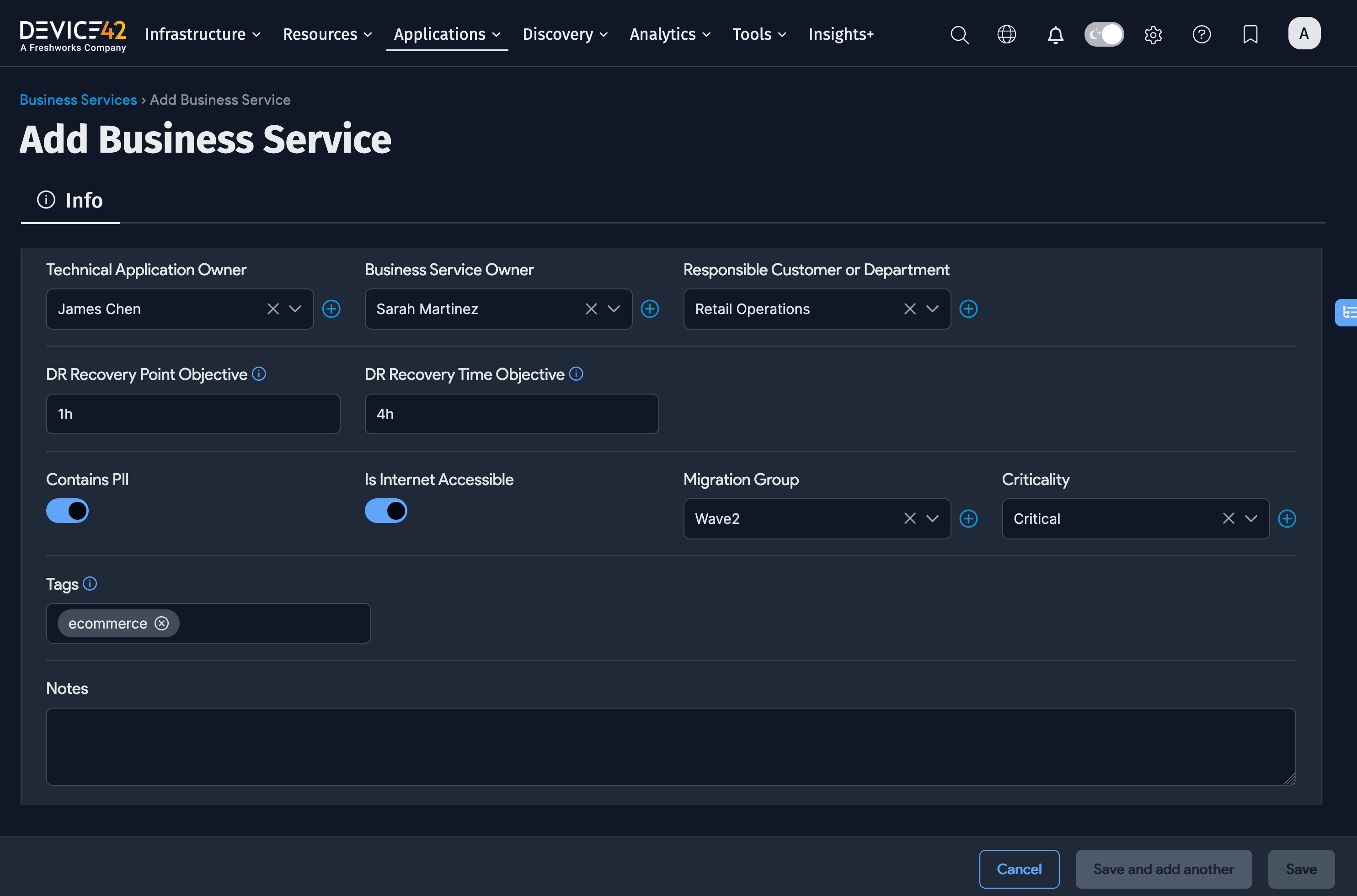

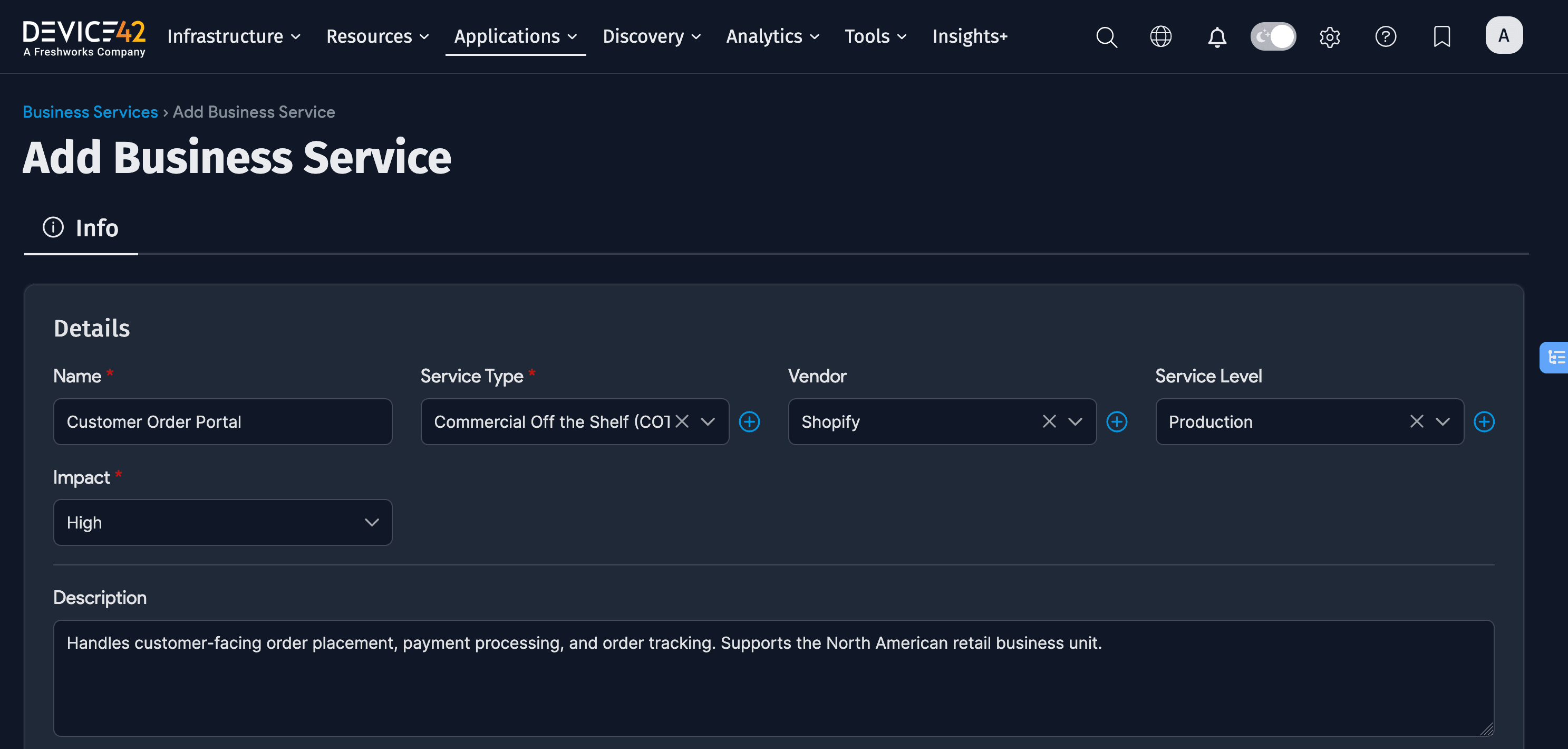

To create a new Business Service, fill out the Info form with the following details. After saving, you'll have access to the Application Layout canvas to visualize dependencies and relationships between items.
-
Enter the application Name and select the Service Type (COTS, COTS with Customization, or Custom).

-

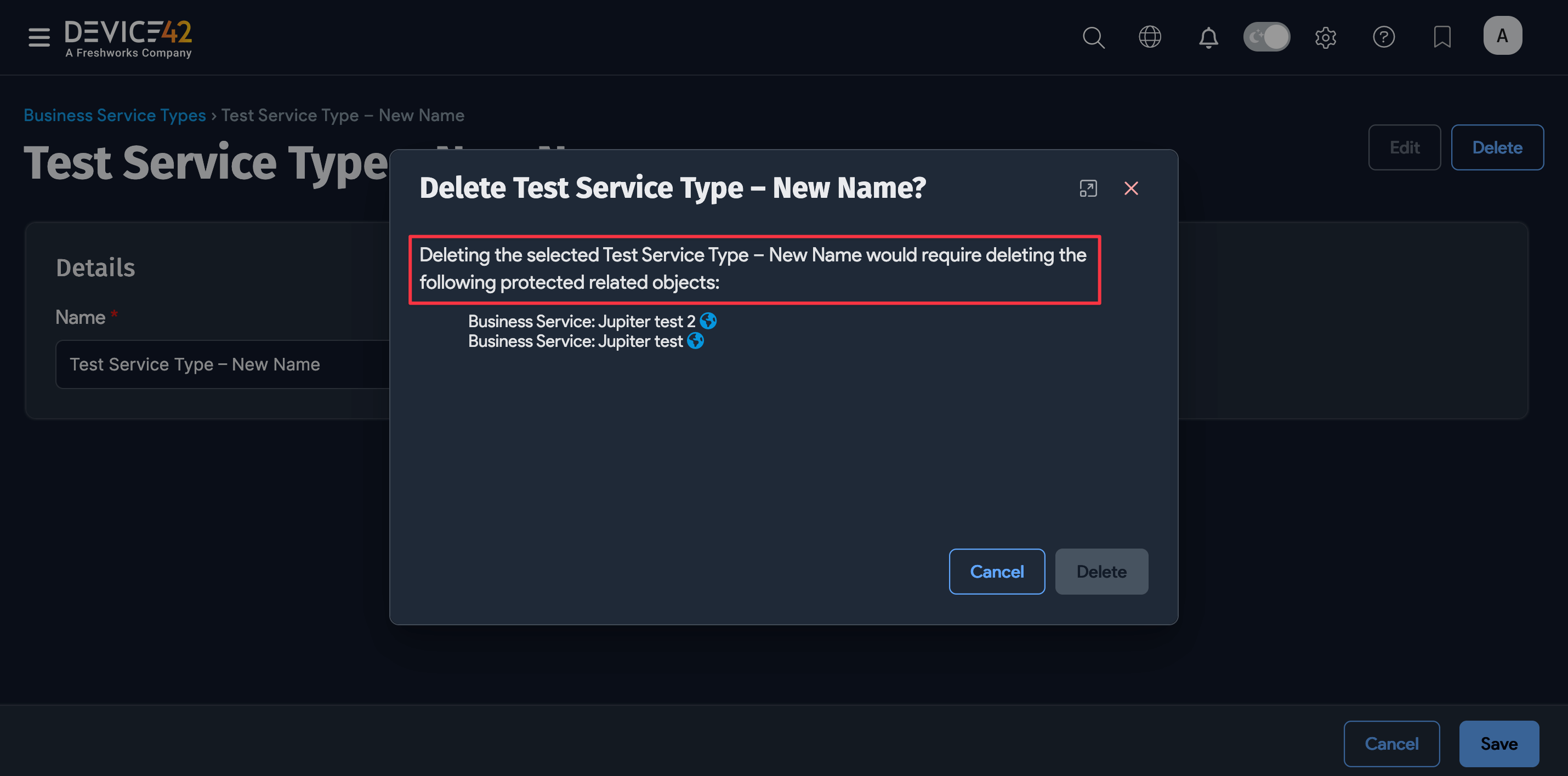

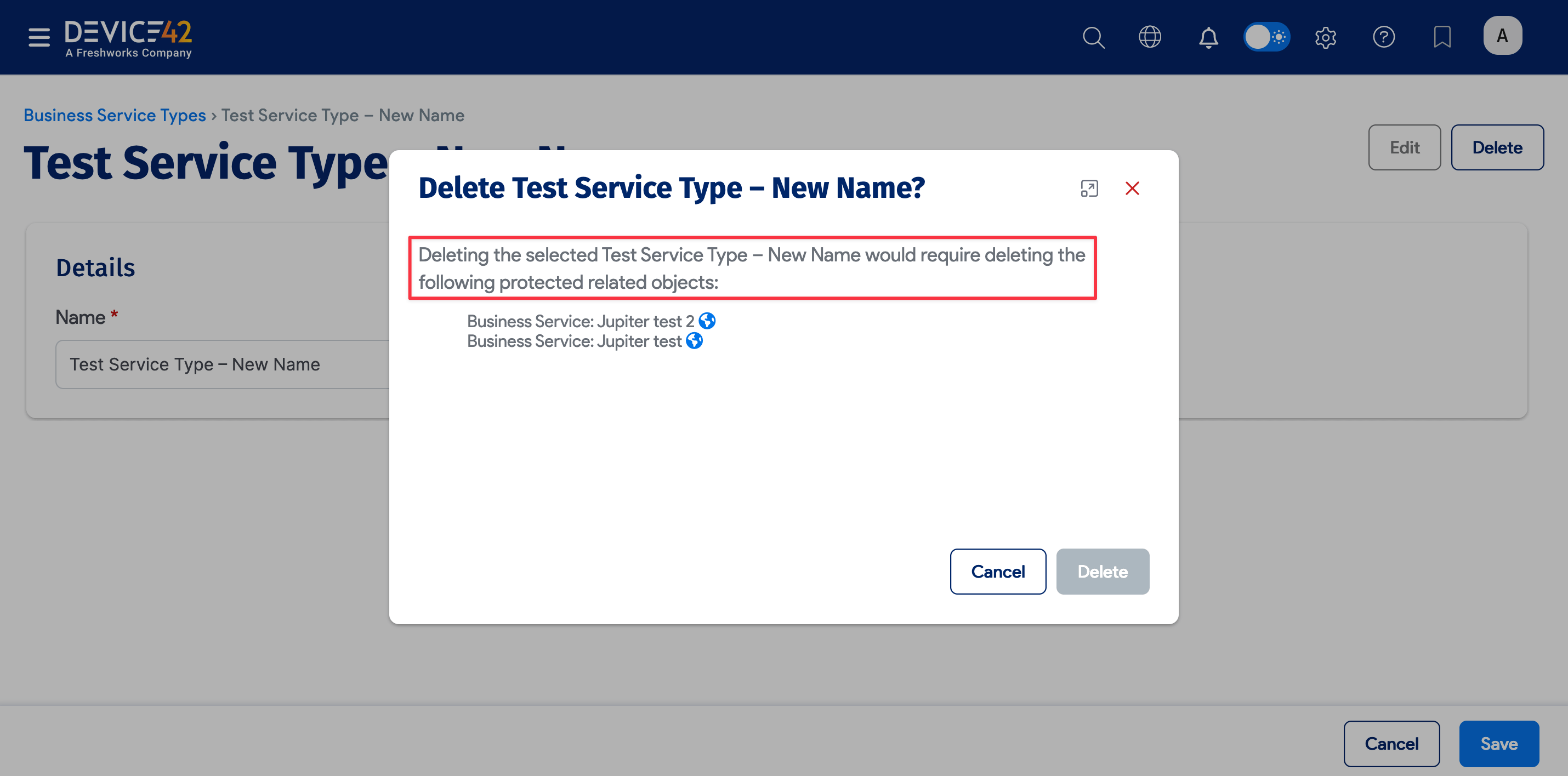

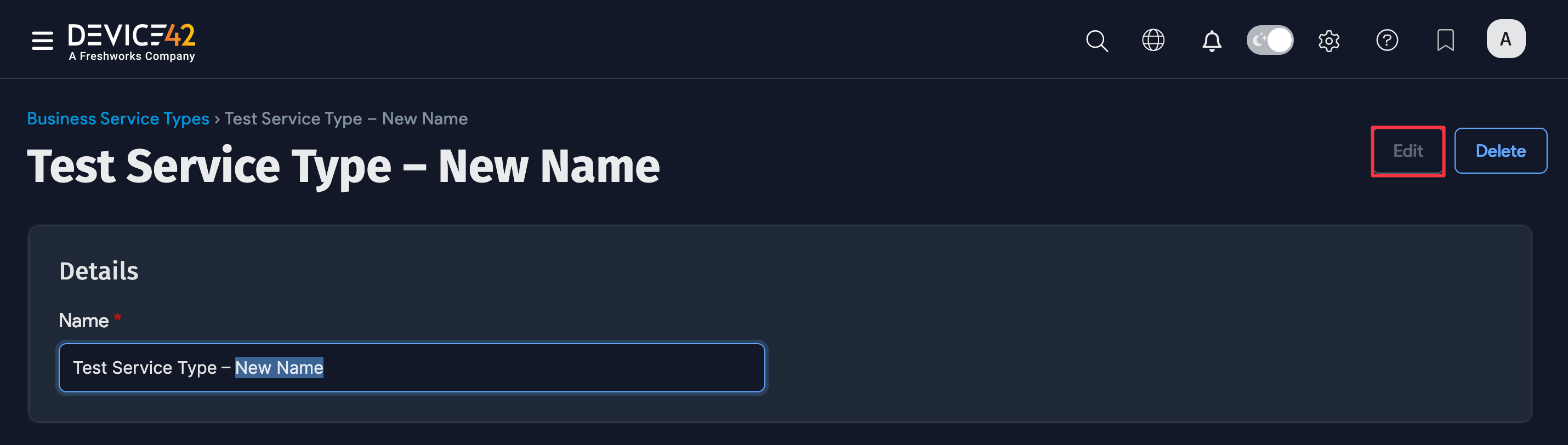

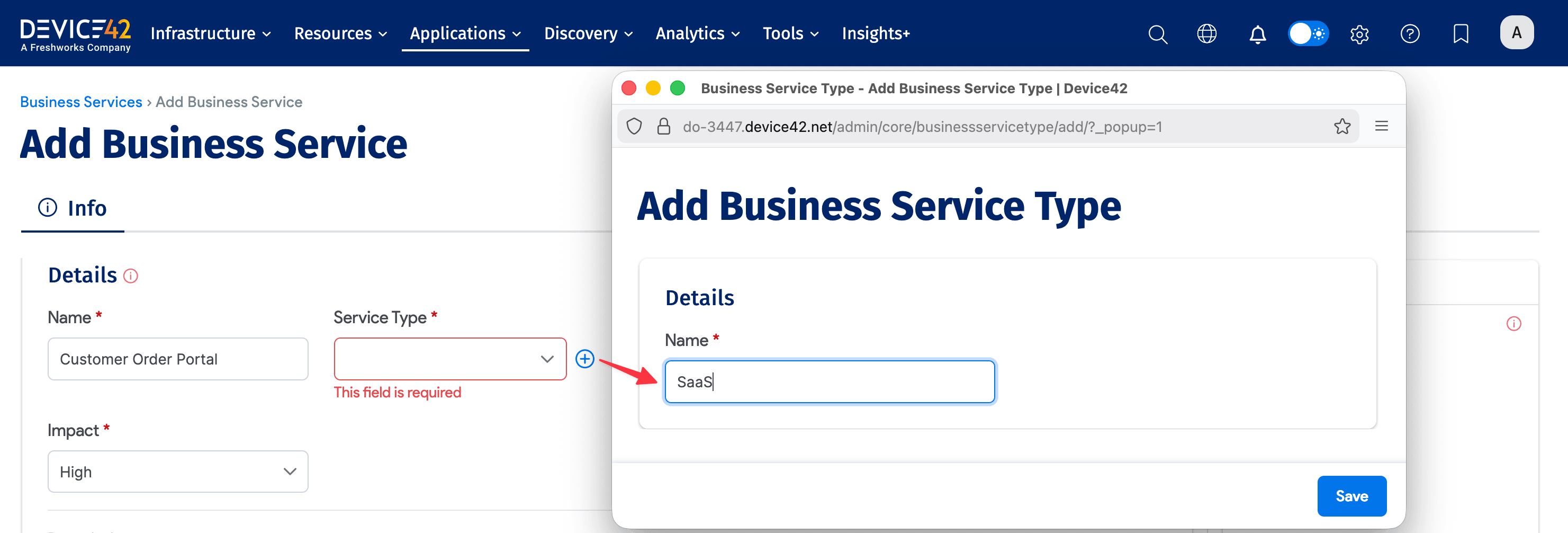

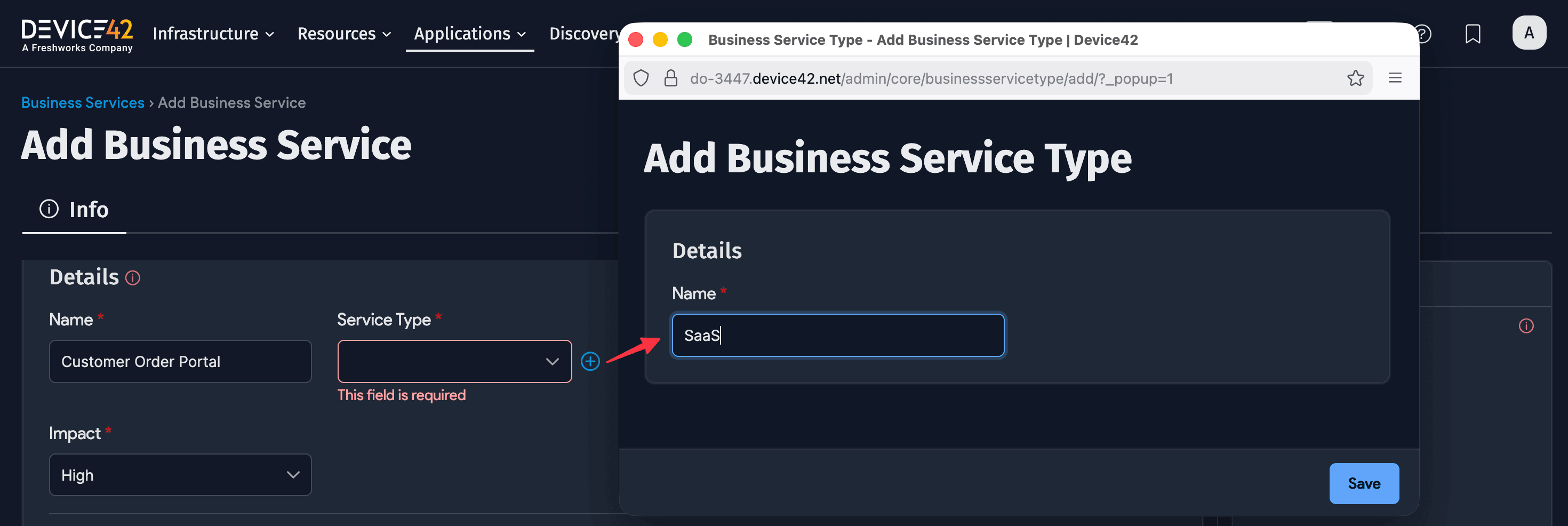

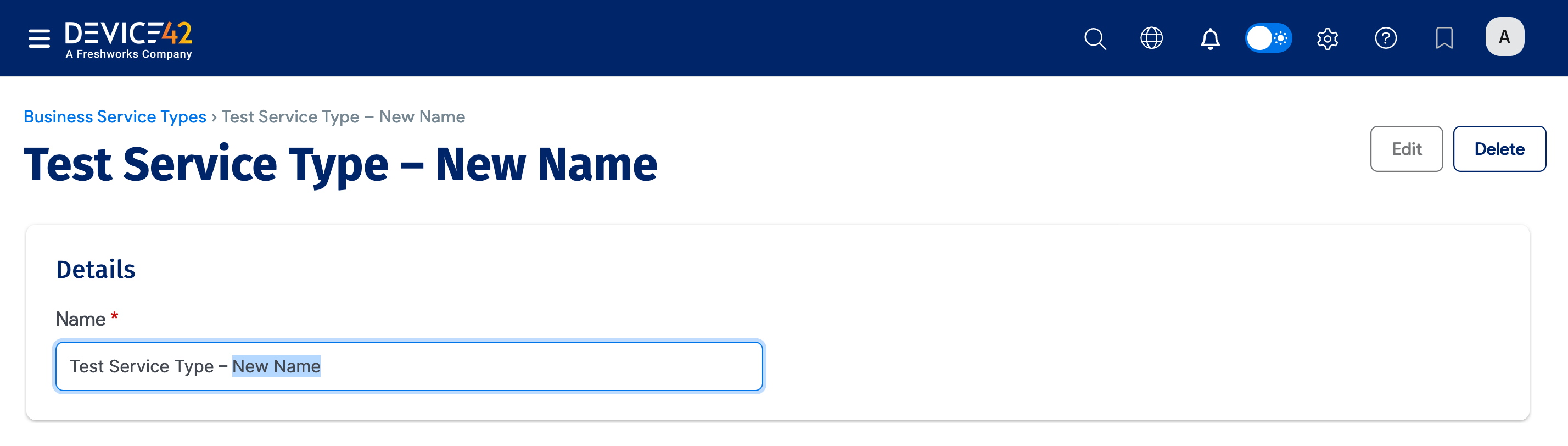

Add new values if they are not yet available in a dropdown. For example, define a new Service Type by clicking the + button next to the Service Type field. See Edit or Delete a Service Type for more details.

-
Select the Technical Application Owner, Business Service Owner, and Responsible Customer or Department.
-
For DR Recovery Point Objective and DR Recovery Time Objective, use the format 1w 2d 3h 4m 5s (1 week, 2 days, 3 hours, 4 minutes, and 5 seconds). Each term is optional, and all numbers must be integers. For example, enter 2d 6h for a period of two days and six hours.
-

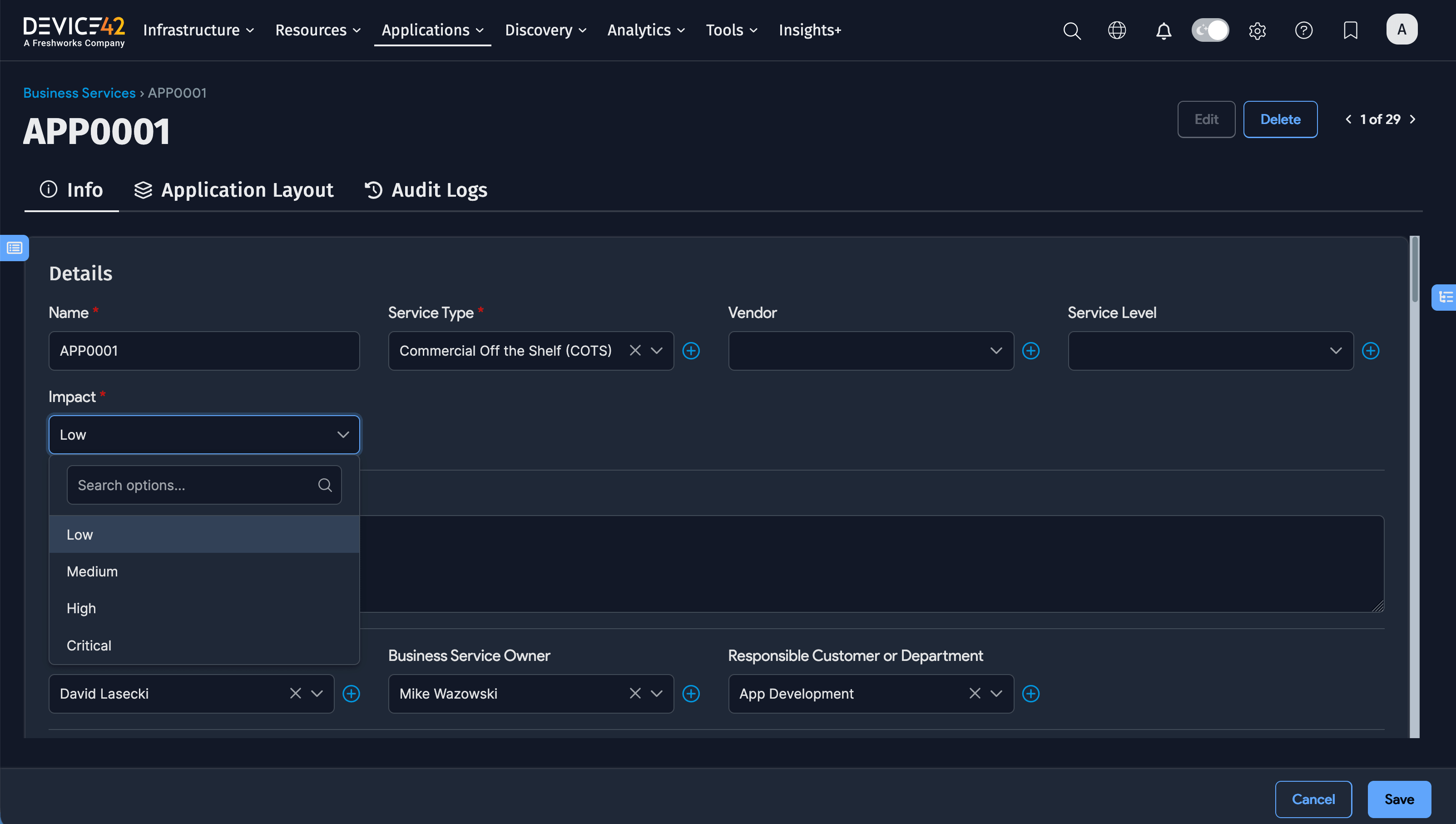

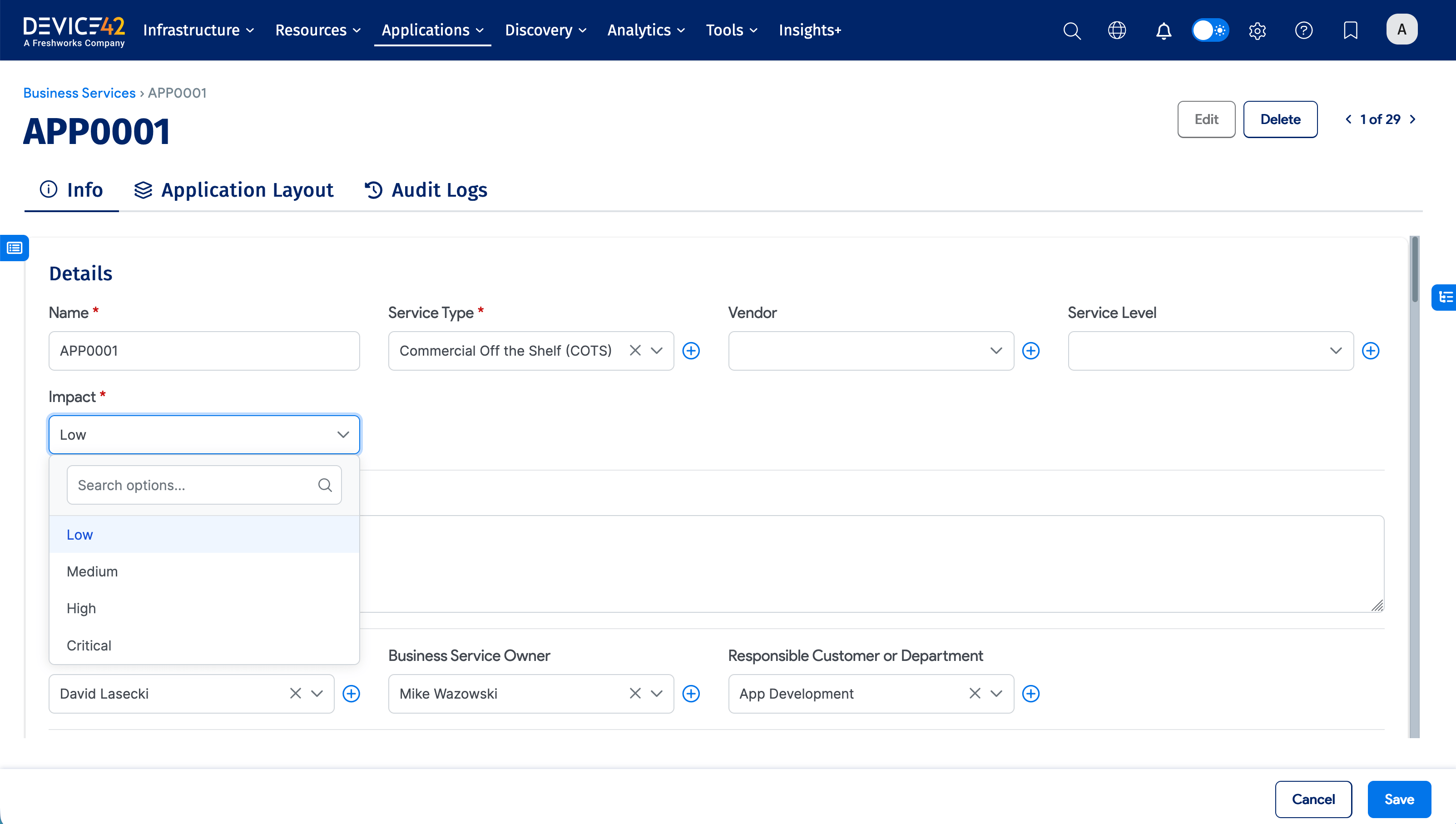

Select an Impact of Critical, High, Medium, or Low. Impact and Criticality are separate values, so you can use each according to your organization's risk and service-management model. The Impact value is also available through the API, DOQL, and Standard Reports.

-
Select the Migration Group and Criticality, and add any Notes or Tags.

Add and Remove Form Items

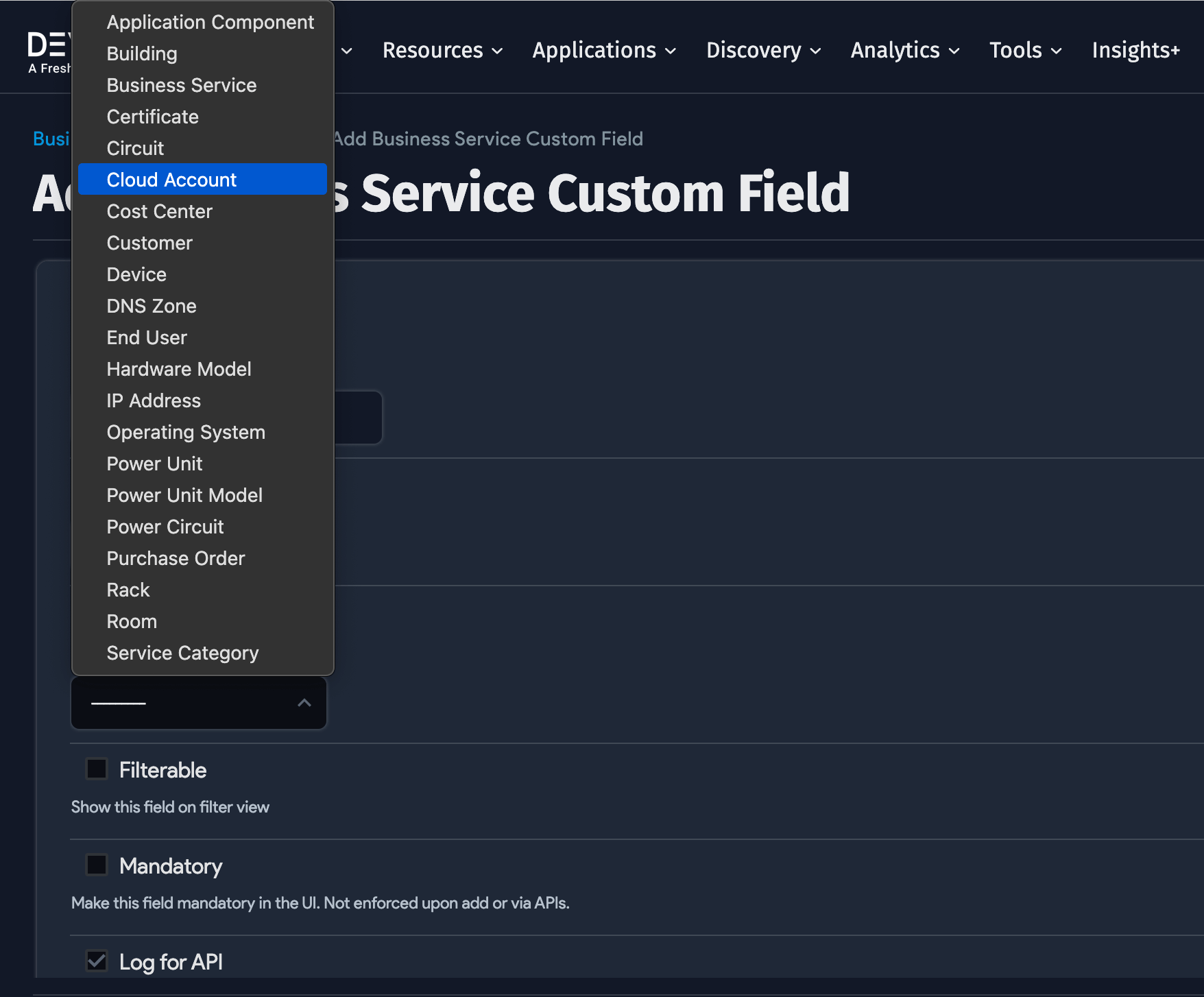

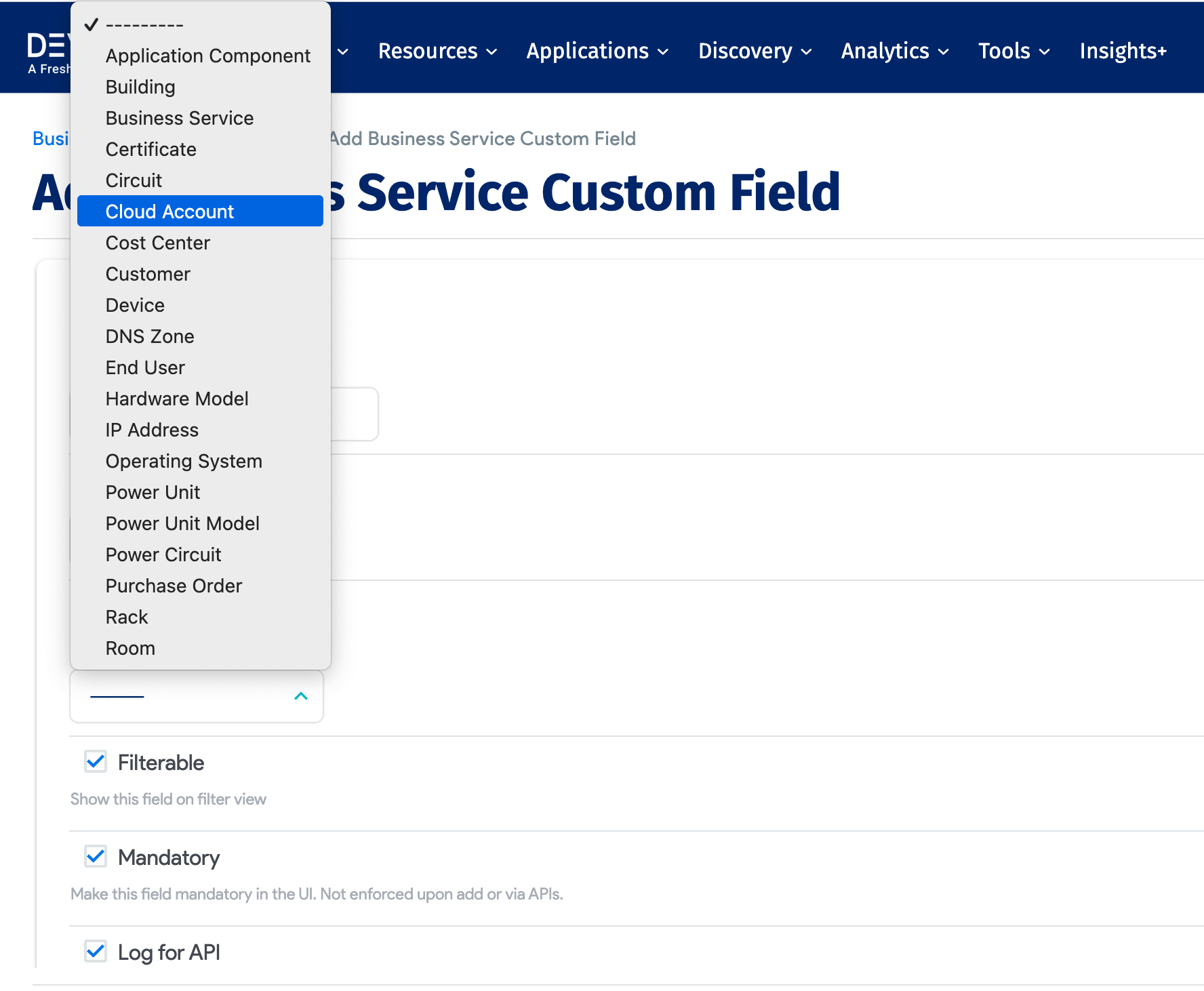

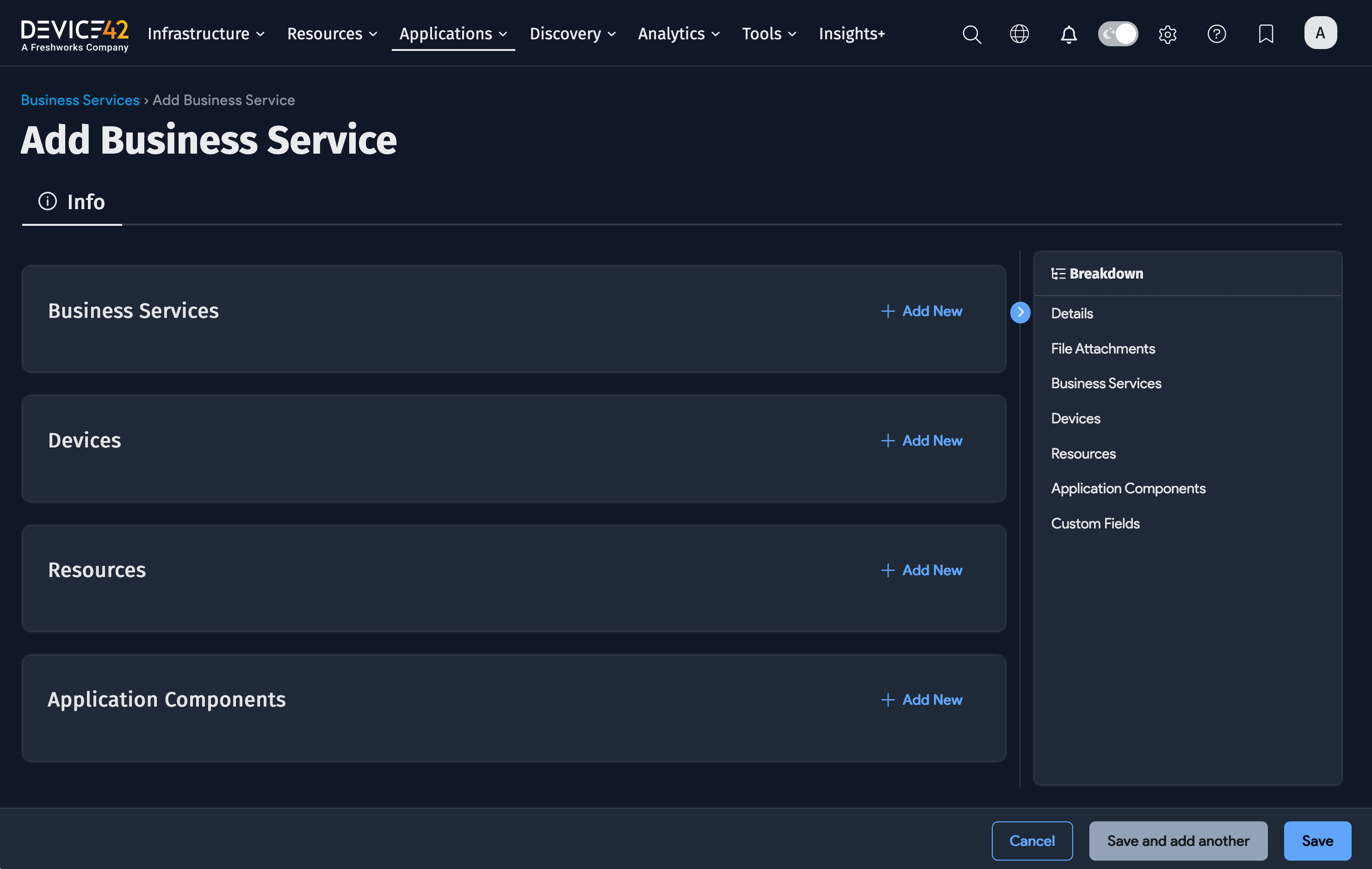

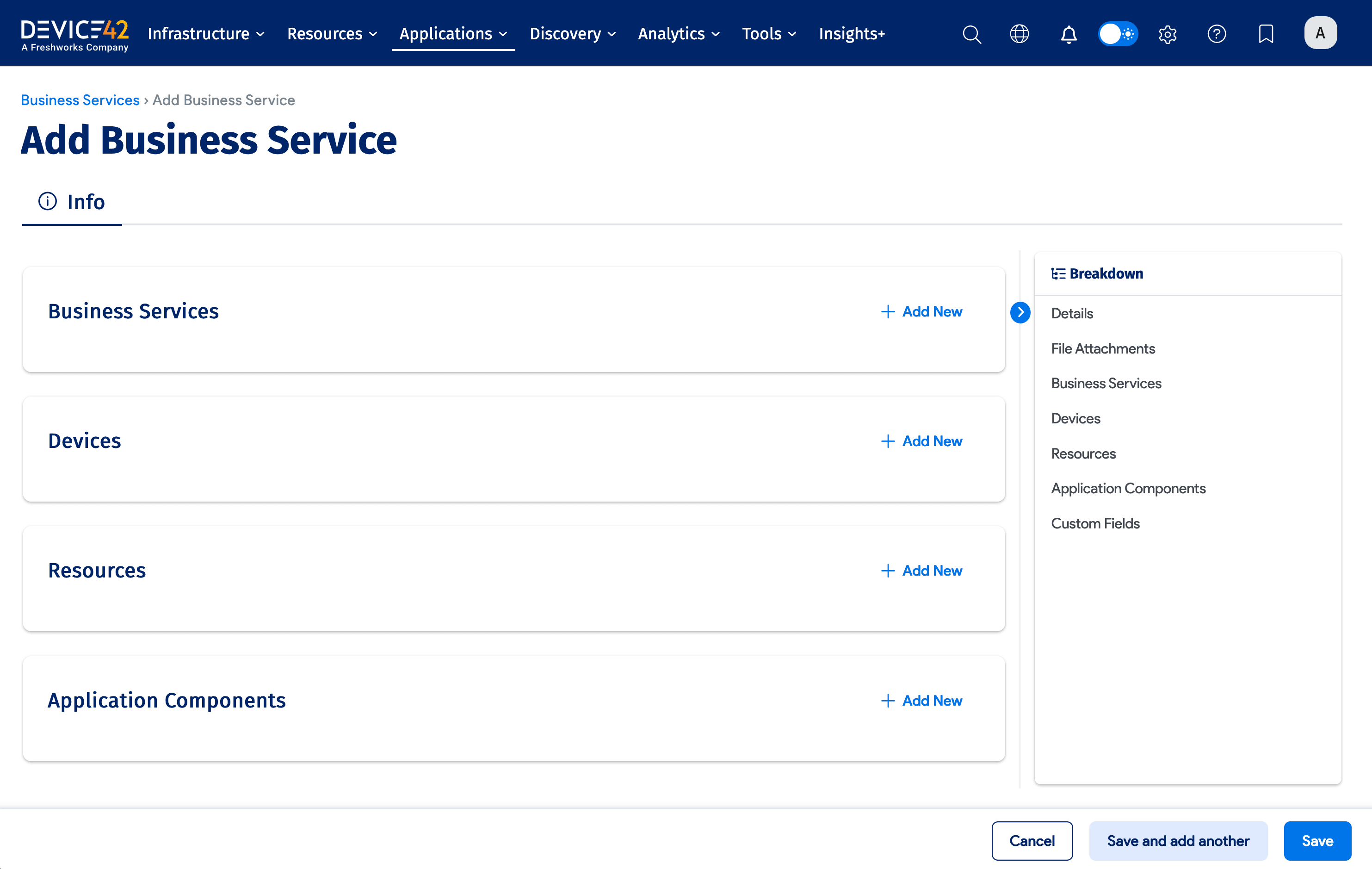

From the Info form or the Application Layout canvas, you can associate the following items with your Business Service (in addition to File Attachments and Custom Fields):
- Business Services: Link other Business Services to model service-to-service relationships.
- Devices: Add the physical or virtual machines that support the service.
- Resources: Add cloud or infrastructure resources such as databases and storage.
- Application Components: Add the application layers (web servers, databases, load balancers) that make up the service.
Currently, Application Groups can only be added from the canvas. See Add Application Groups below.

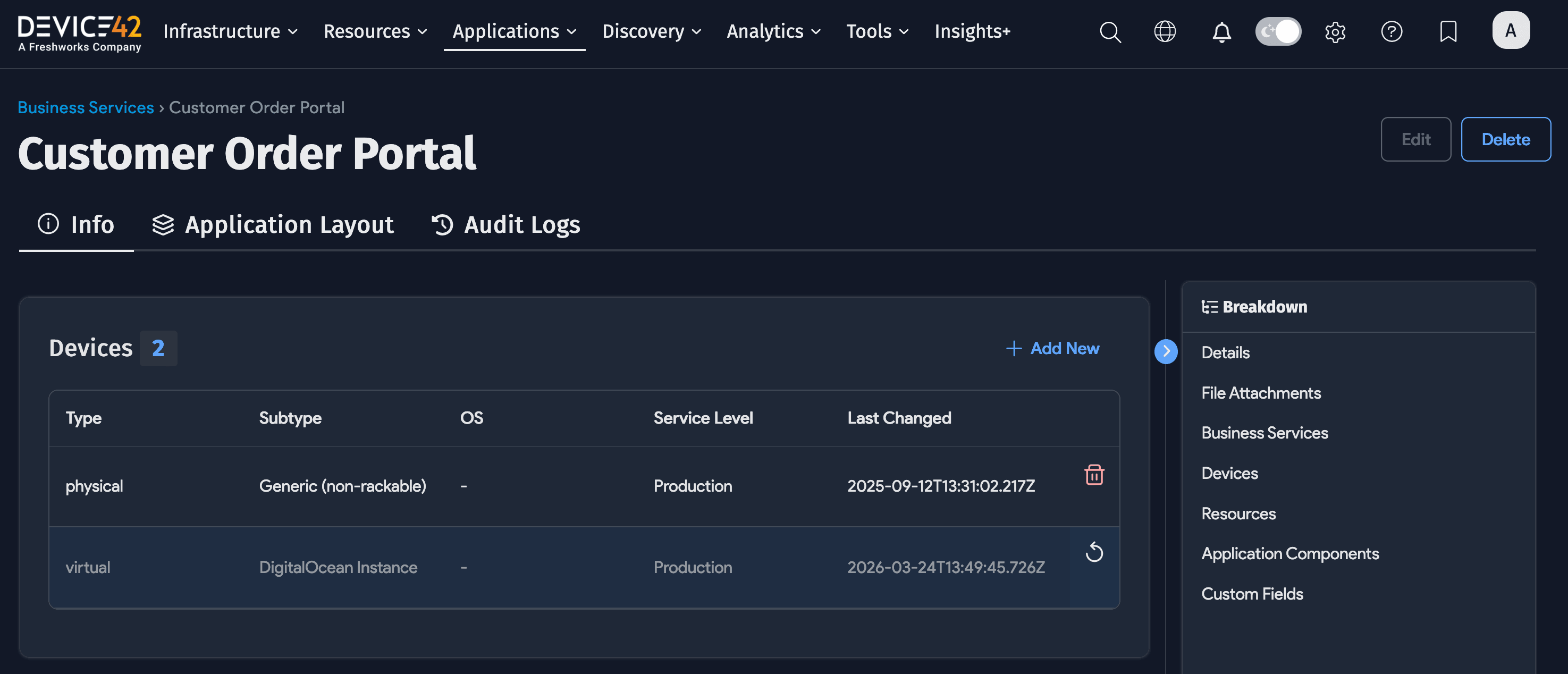

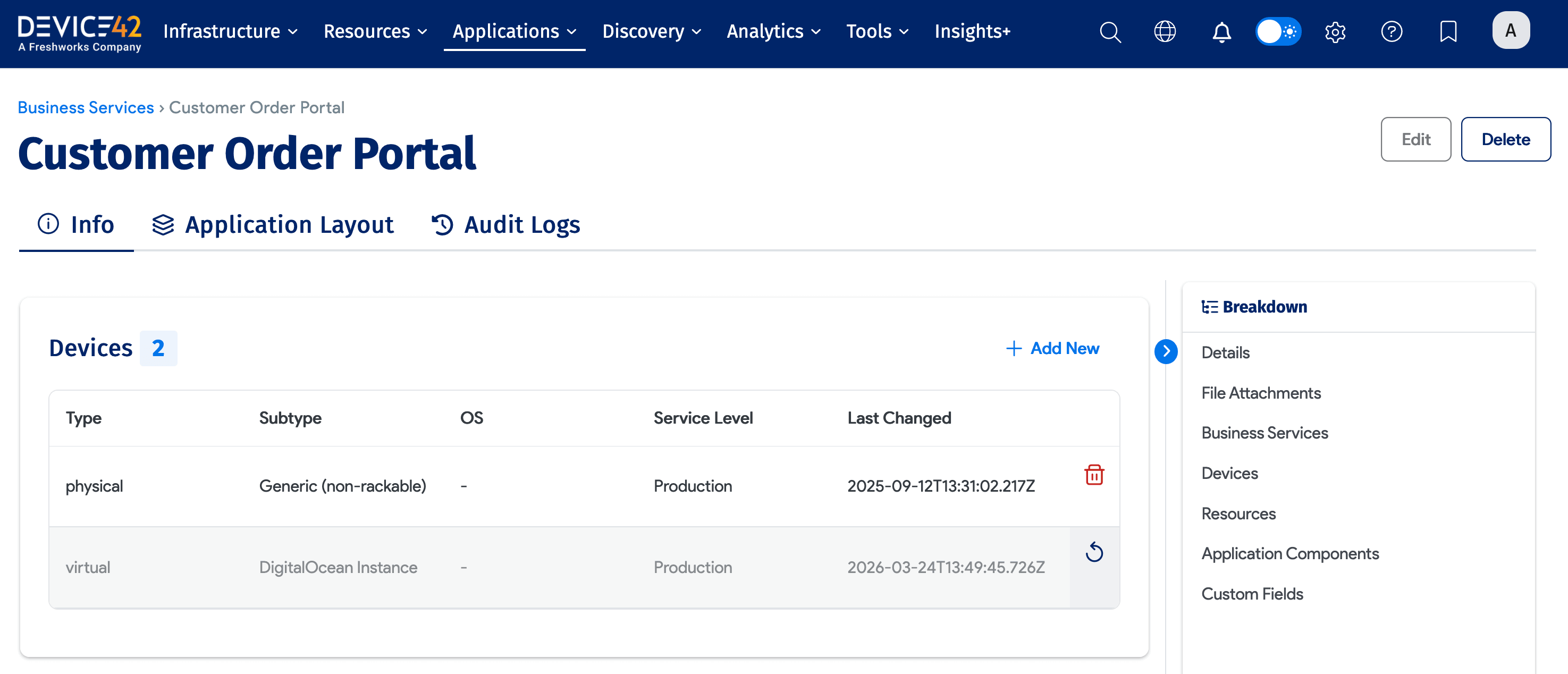

Remove inline items by clicking the trash can icon. If the item was previously saved, you can click the Restore button to undo the removal during the current session.

The Application Layout Canvas

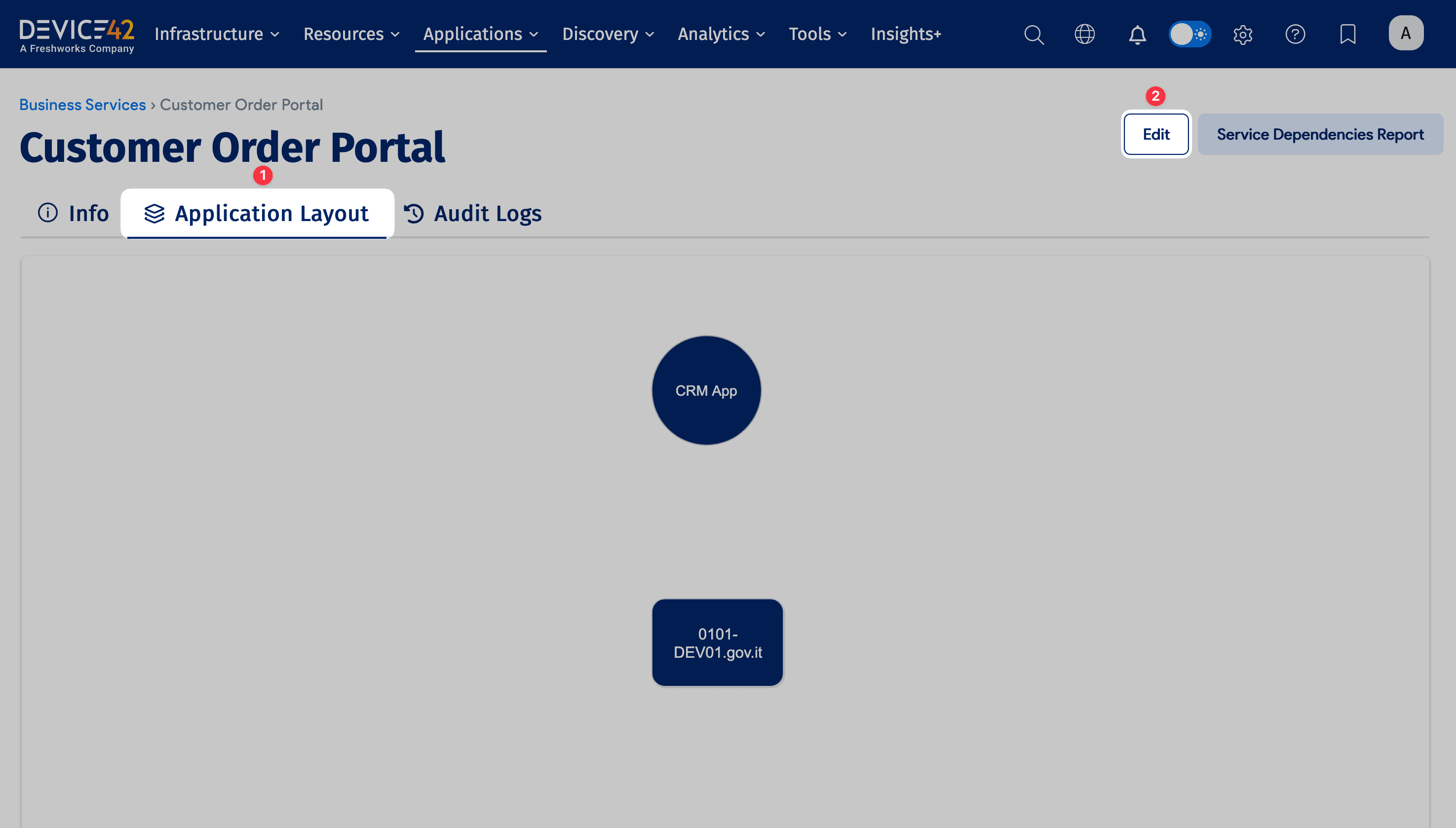

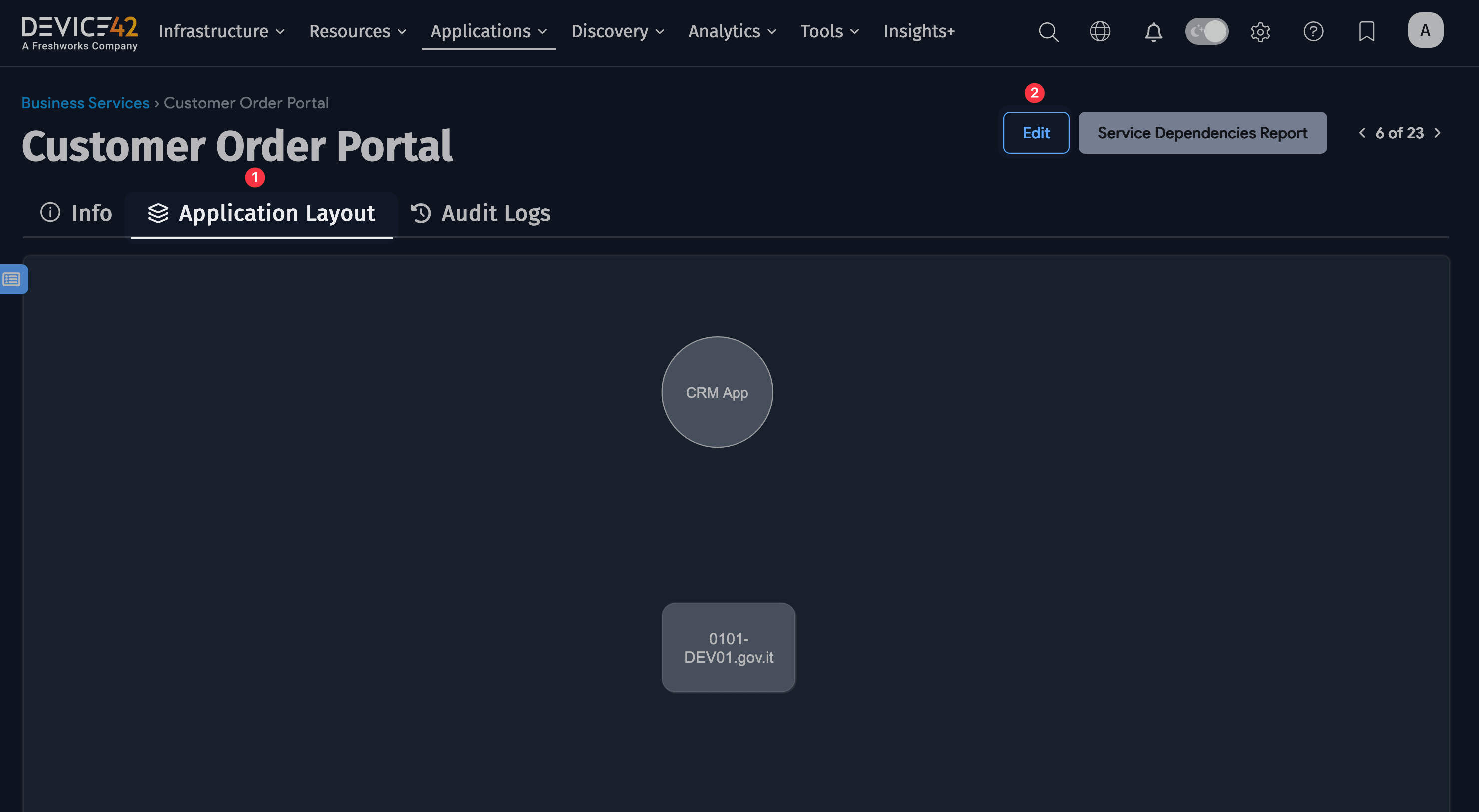

After saving a Business Service, you can open its Application Layout to build and edit dependencies on the visualization canvas. Any items added through the form will already be visible on the canvas.
Click the Edit button on the top right of the canvas to activate edit mode.

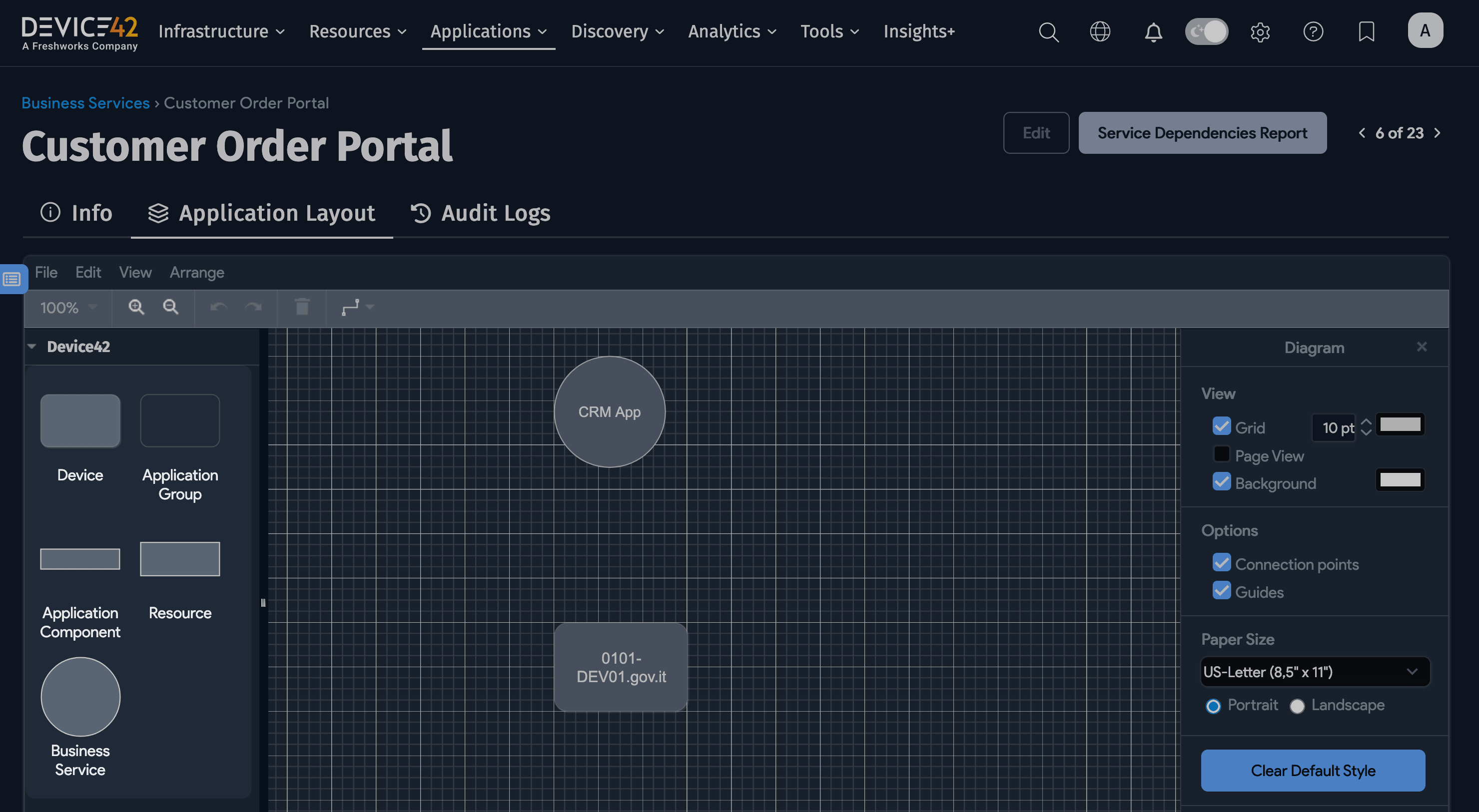

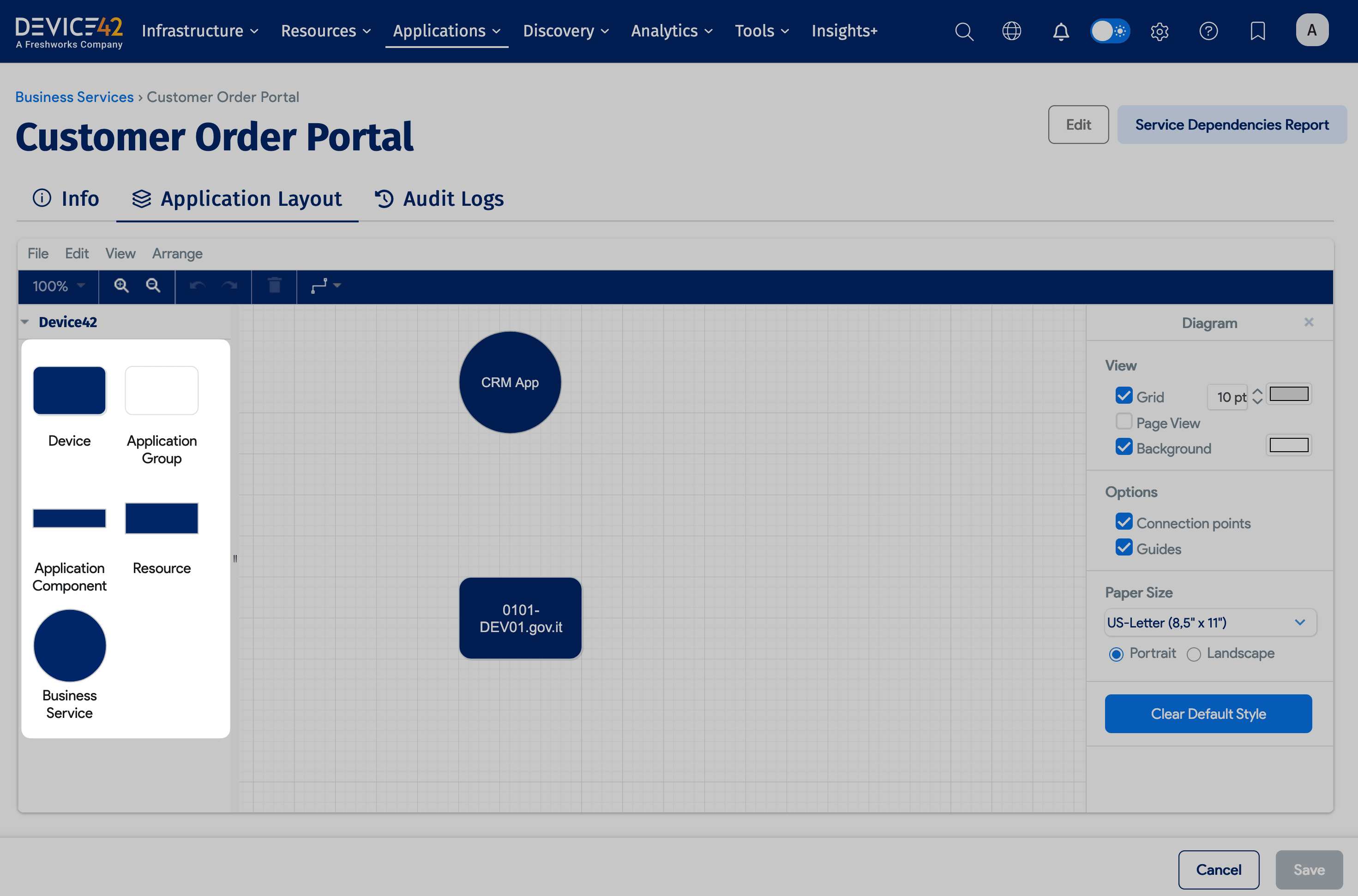

From the left panel, drag the Business Service, Device, Resource, Application Group, or Application Component blocks onto the canvas to open a dialog where you can search for and select items to add. You can add multiple items of each type at a time.

The following sections show examples of adding each item to the canvas.
Add Business Services

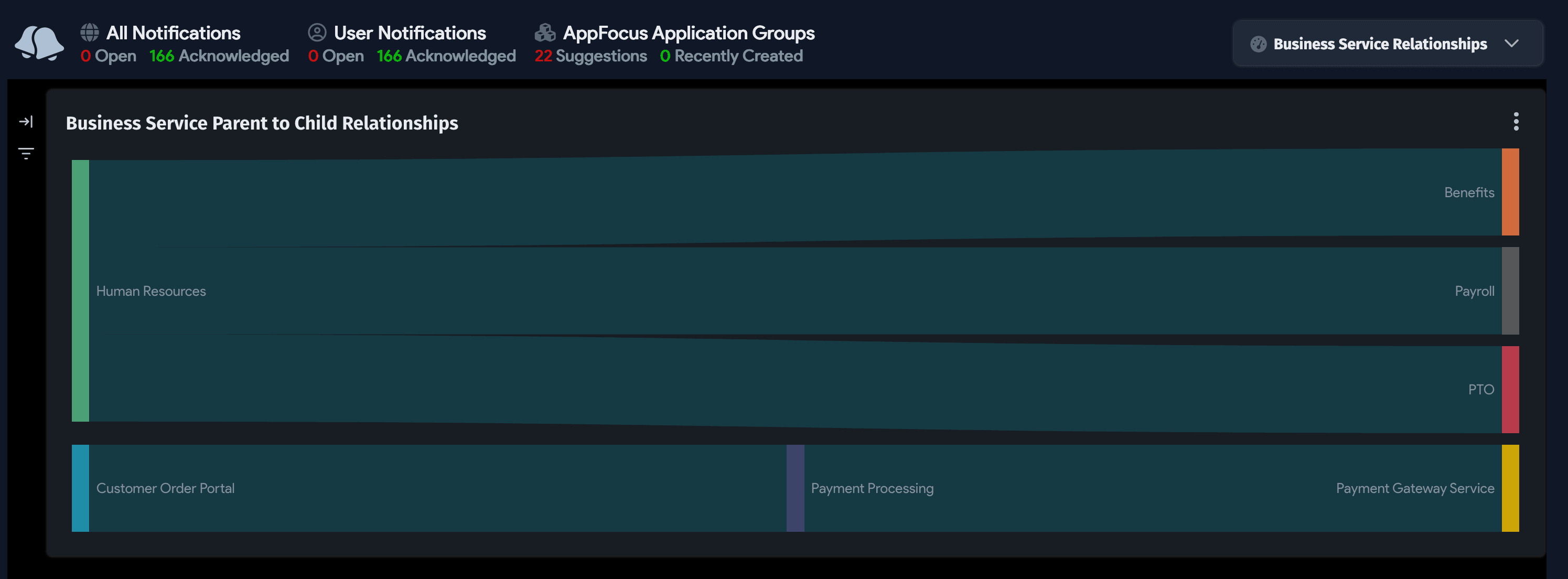

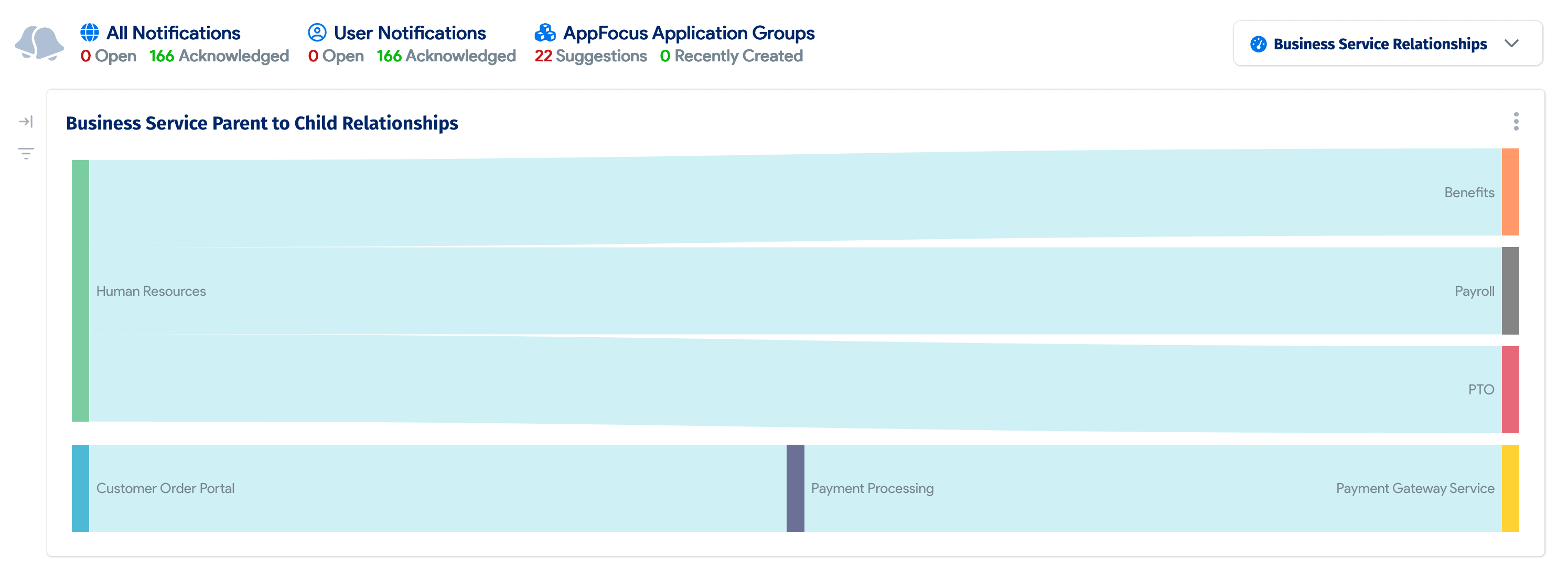

Add existing Business Services to model service-to-service relationships on the canvas. See Business Service Relationships for more on this feature.

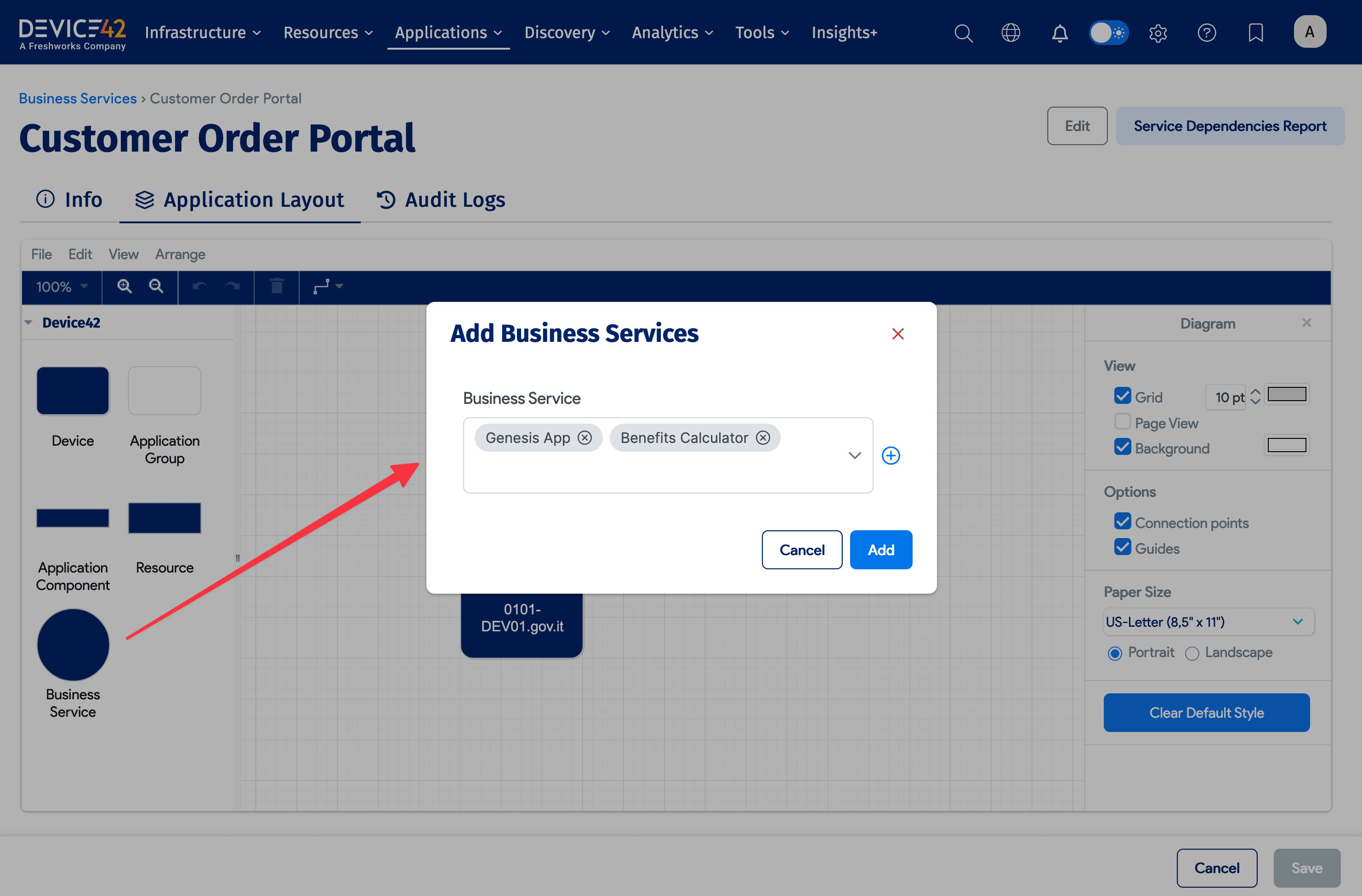

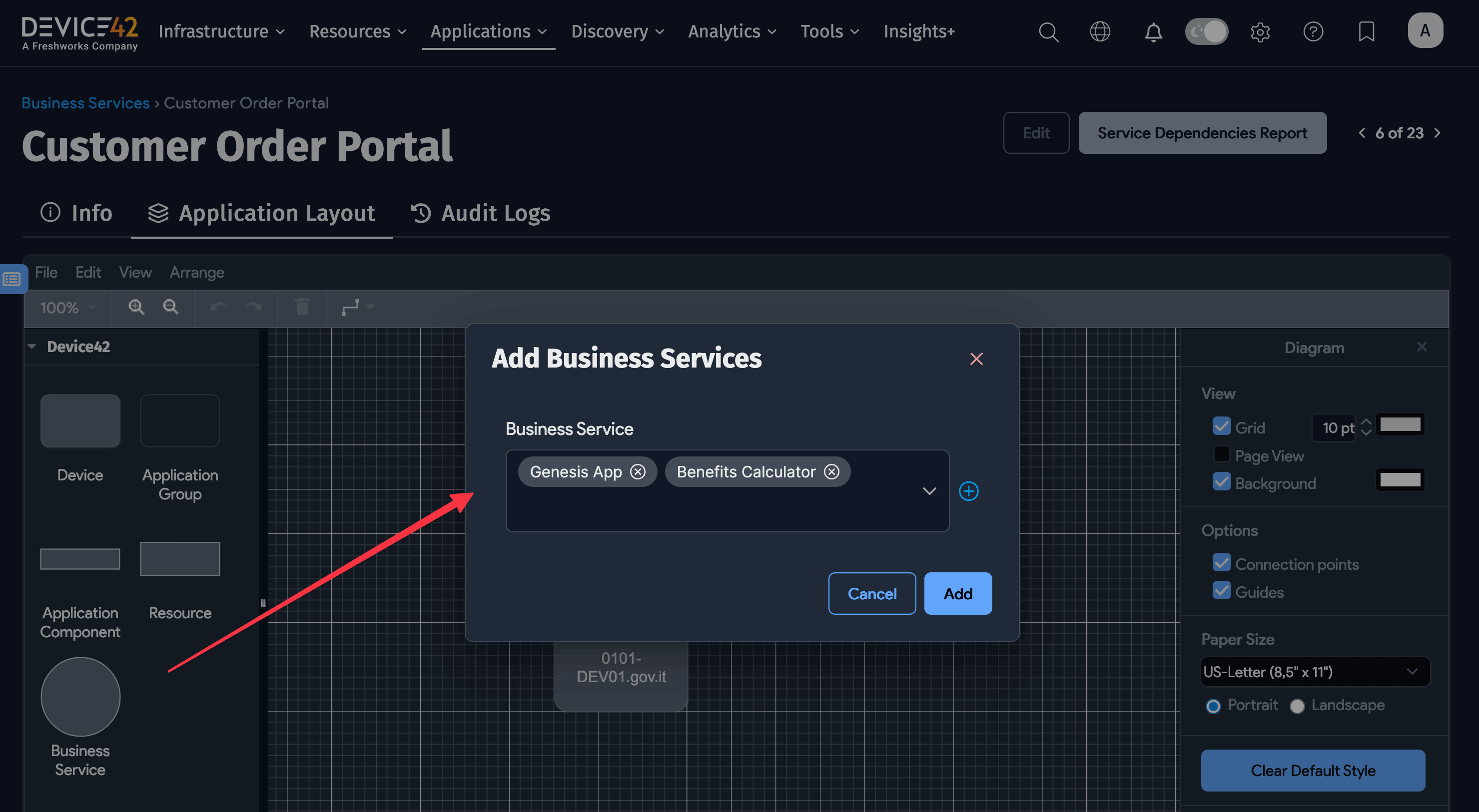

Drag the Business Service block to the canvas to open the Add Business Service box. Search for a Business Service by name, or click the + button to create a new one.

Add Application Components
Application Components represent the logical layers of your application, such as web servers, databases, application servers, and load balancers. Adding them to a Business Service maps out the software architecture behind the service, giving you visibility into which application layers support each business function.

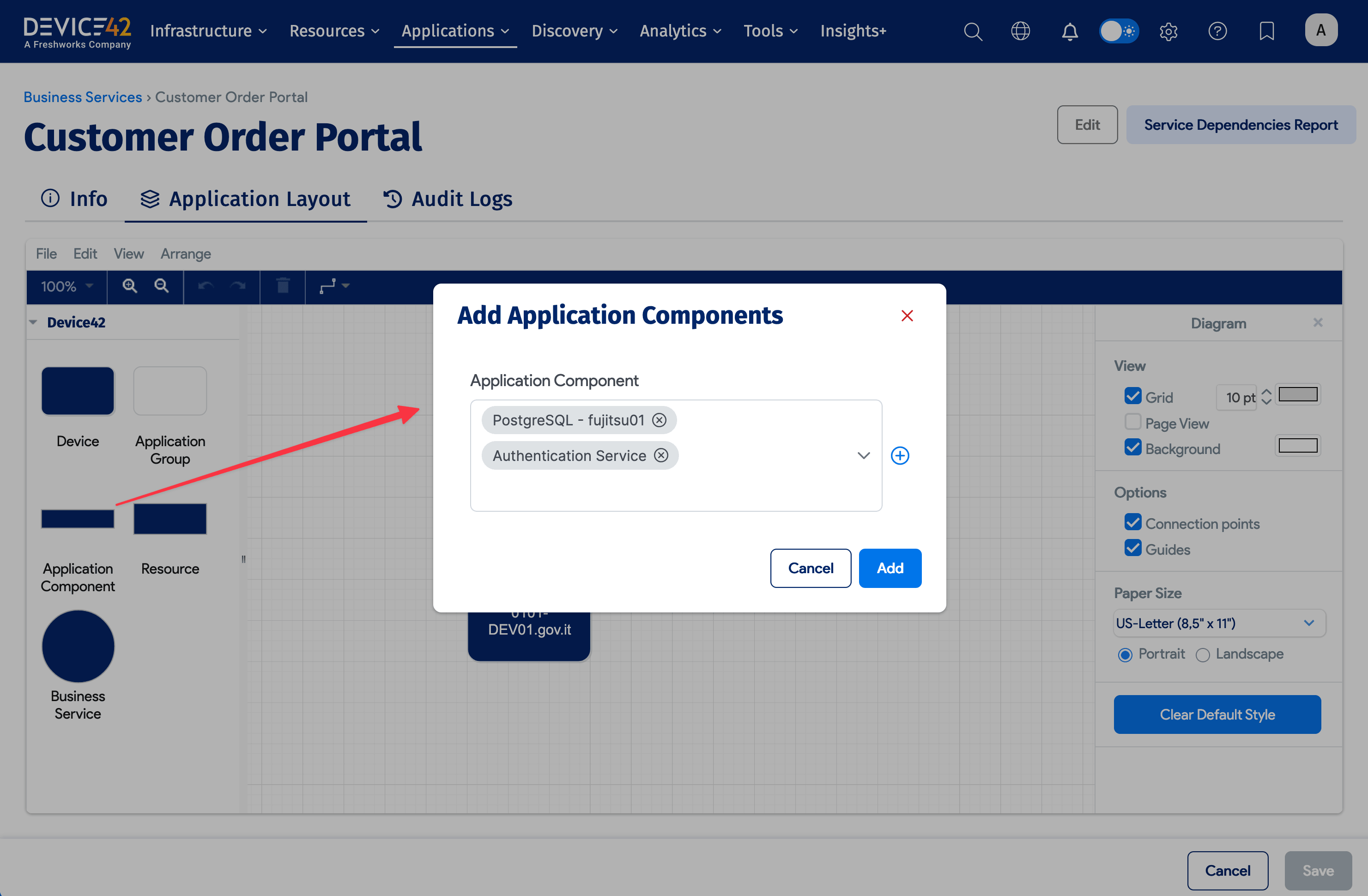

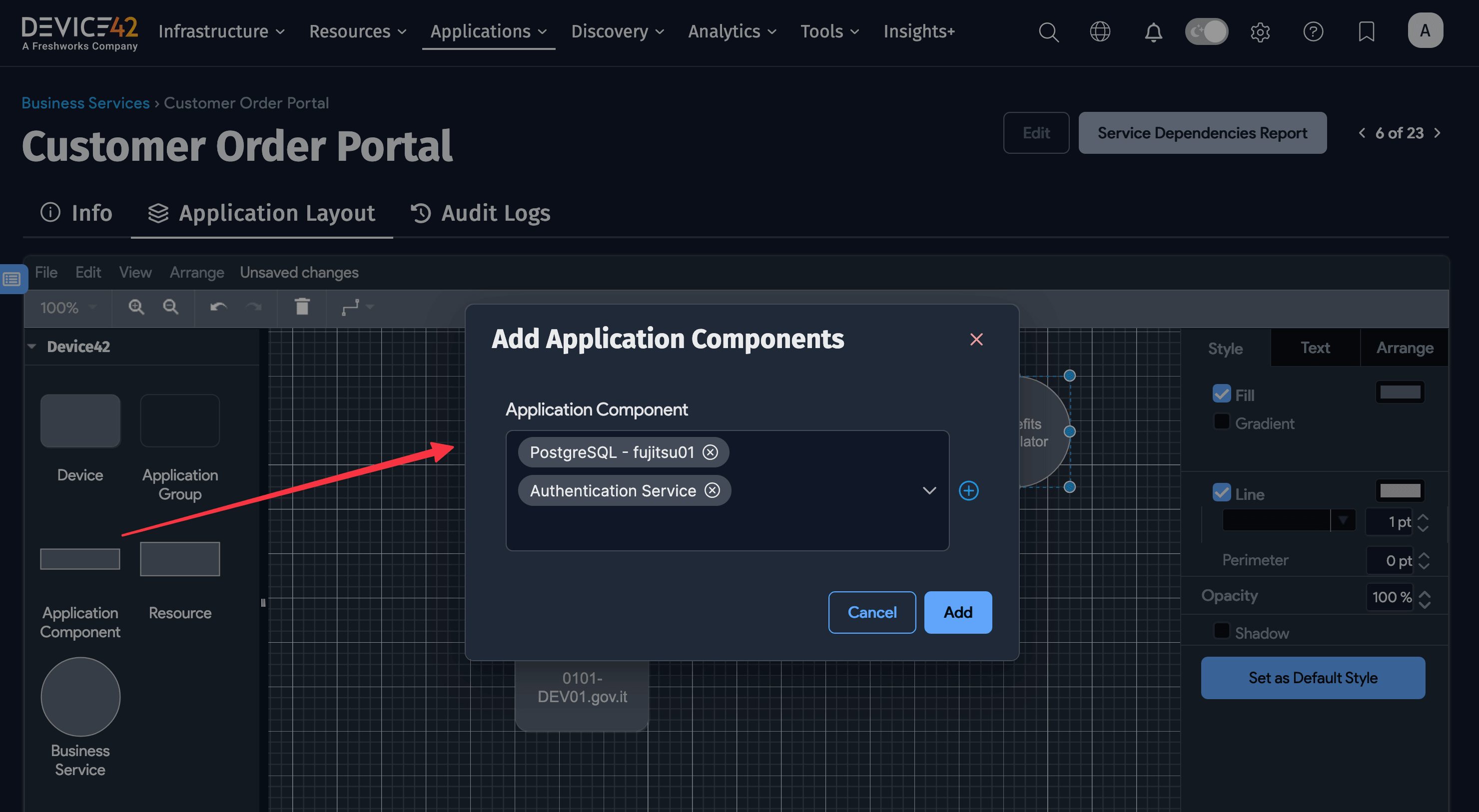

Drag the Application Component block to the canvas to open the Add Application Component dialog. Search for a component by name, or click the + button to create a new one.

Add Application Groups

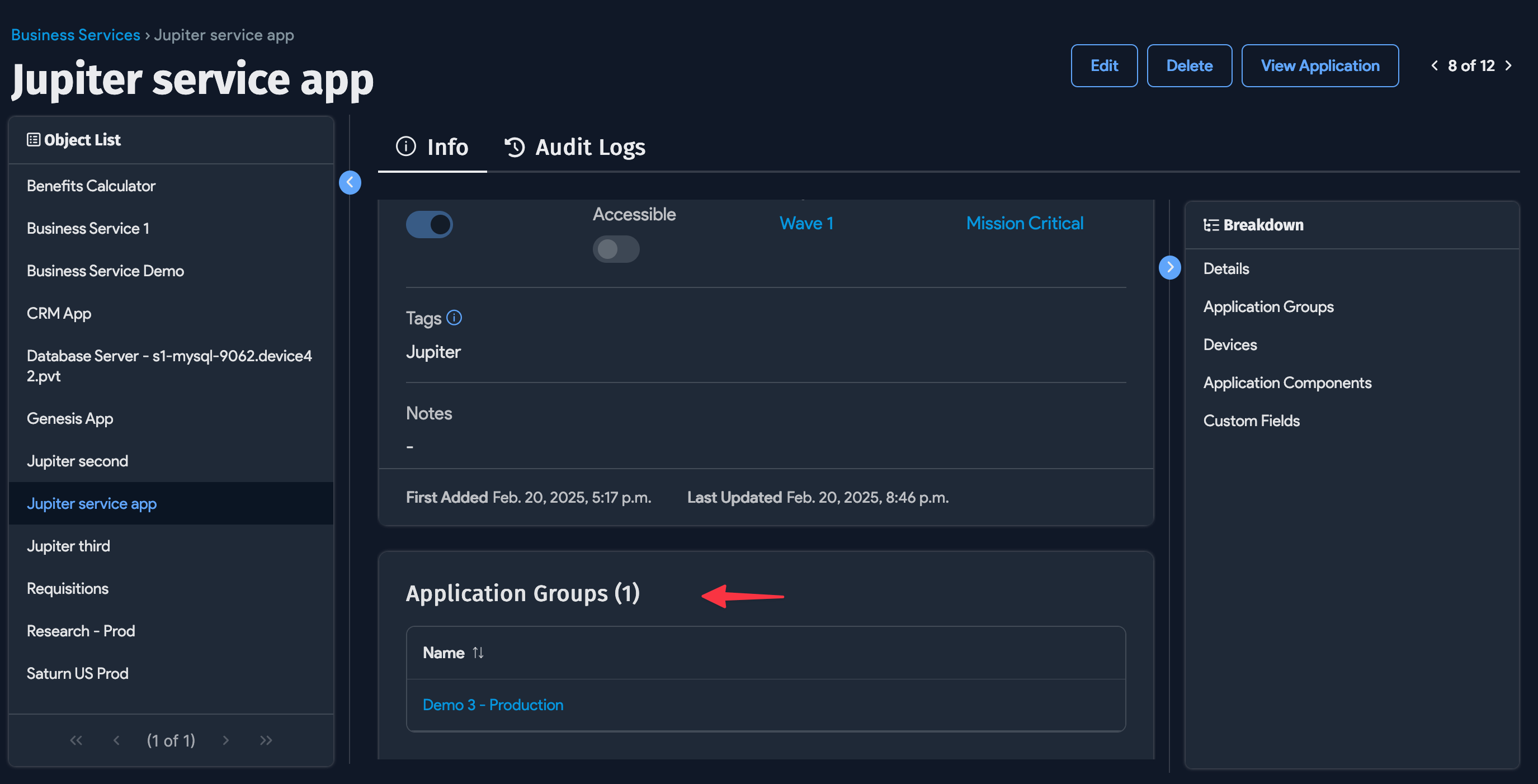

Application Groups are automatically generated sets of devices and services that share discovered communication dependencies. Adding an Application Group to a Business Service brings in its discovered infrastructure, so you don't need to manually add each device. As discovery finds new dependencies, the Application Group updates automatically.

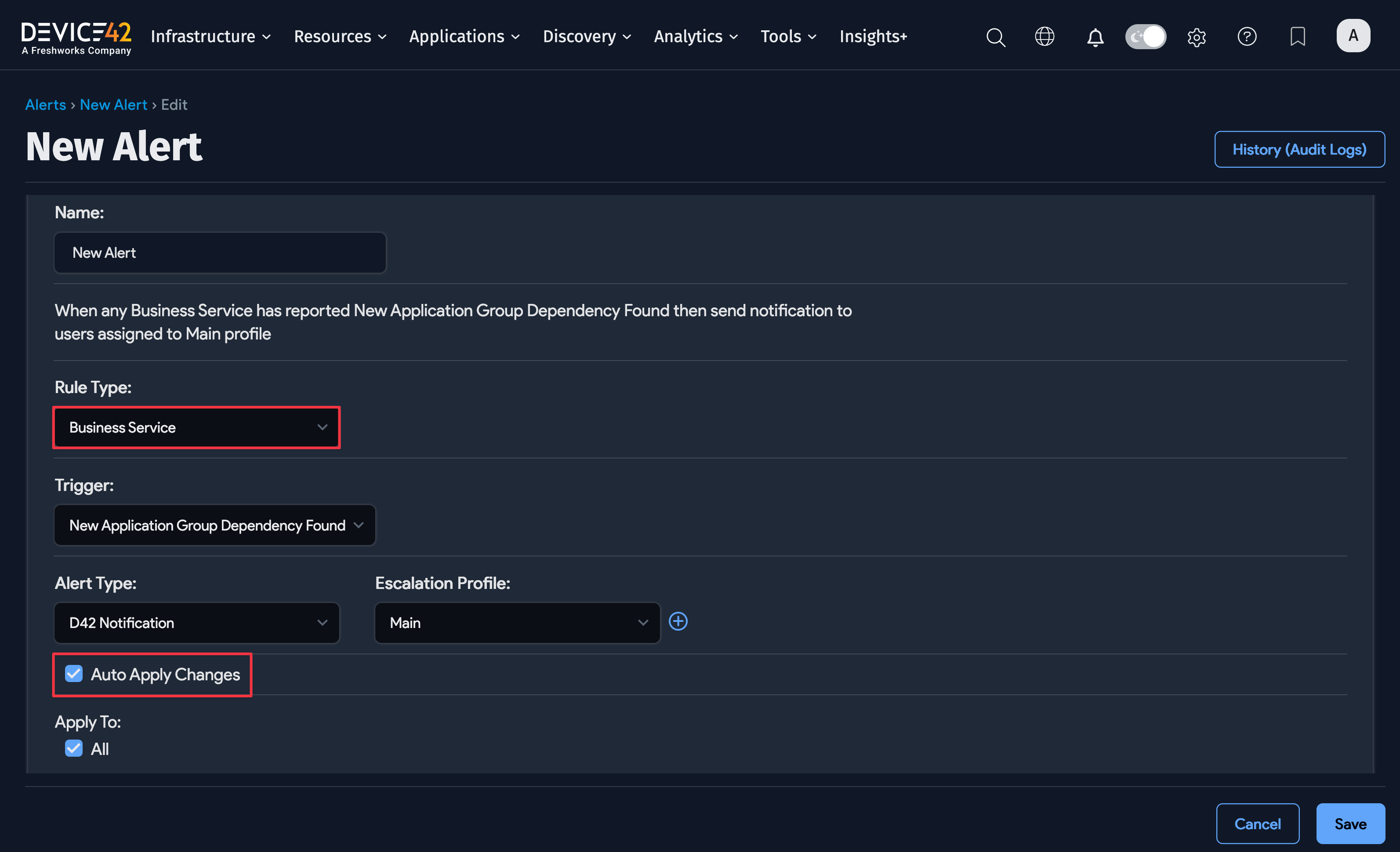

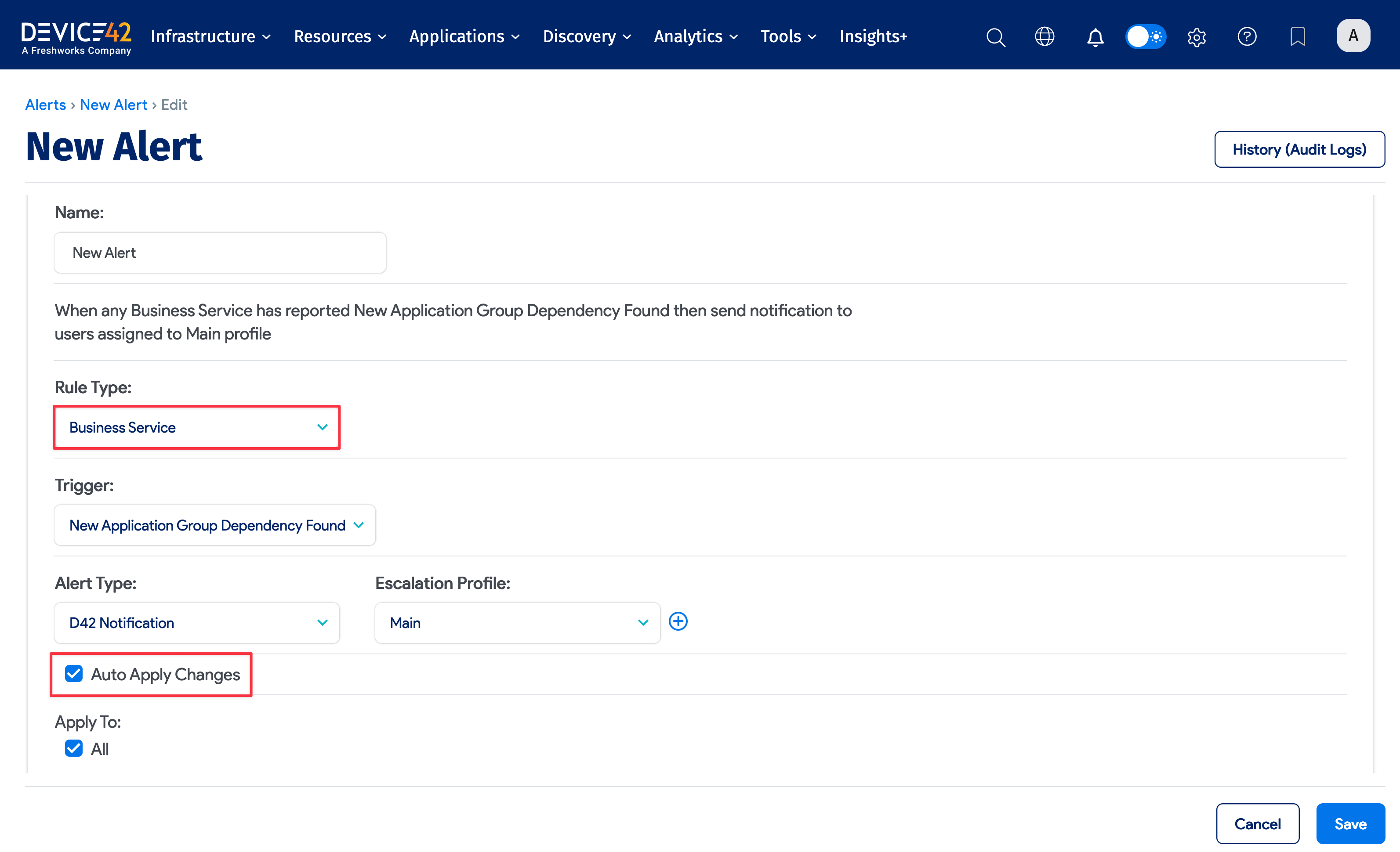

You can also configure alerts to receive notifications when devices are added to or removed from an Application Group linked to your Business Service.

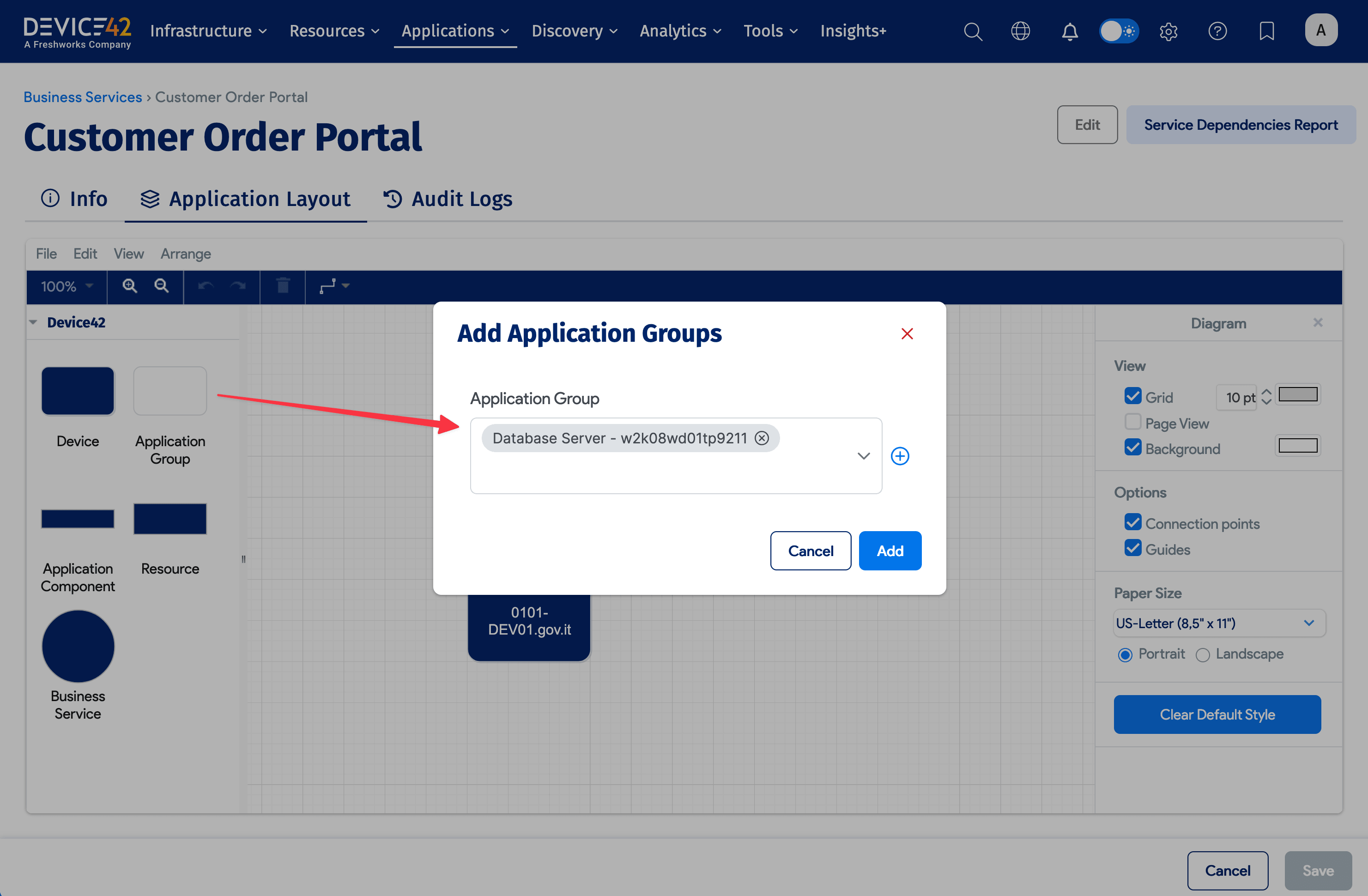

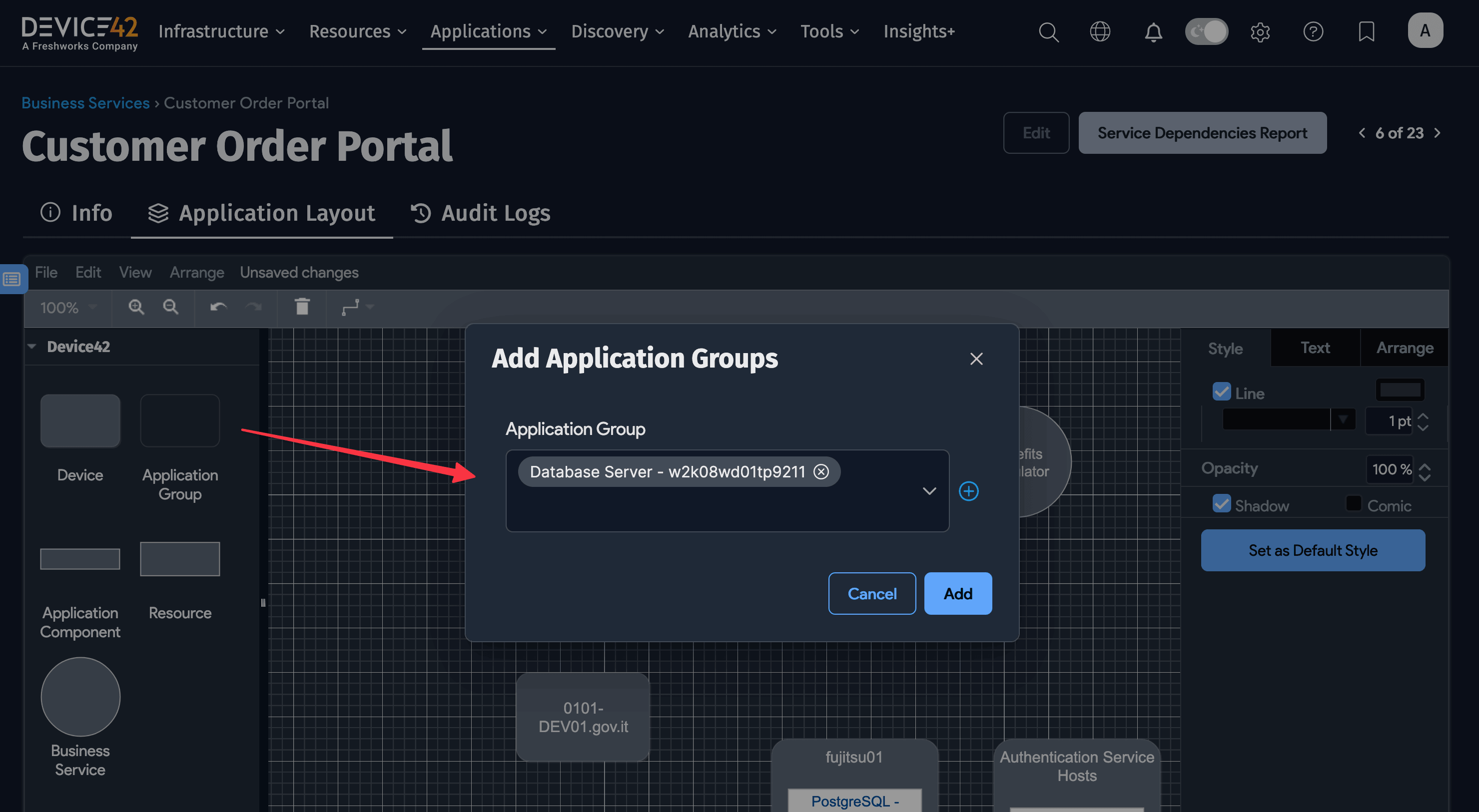

Drag an Application Group block to the canvas to open the Add Application Group dialog. Search for a group by name, or click the + button to create a new one.

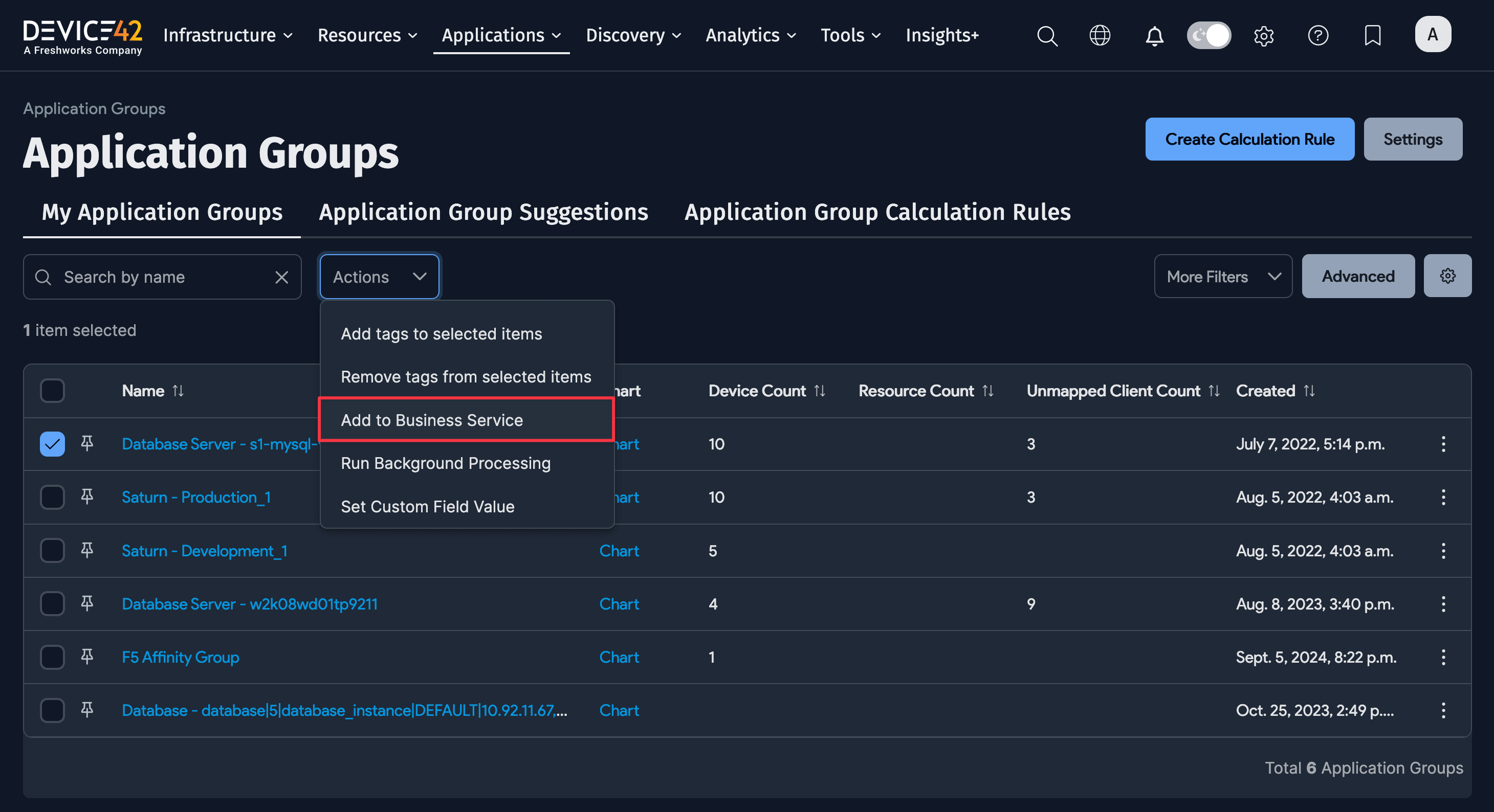

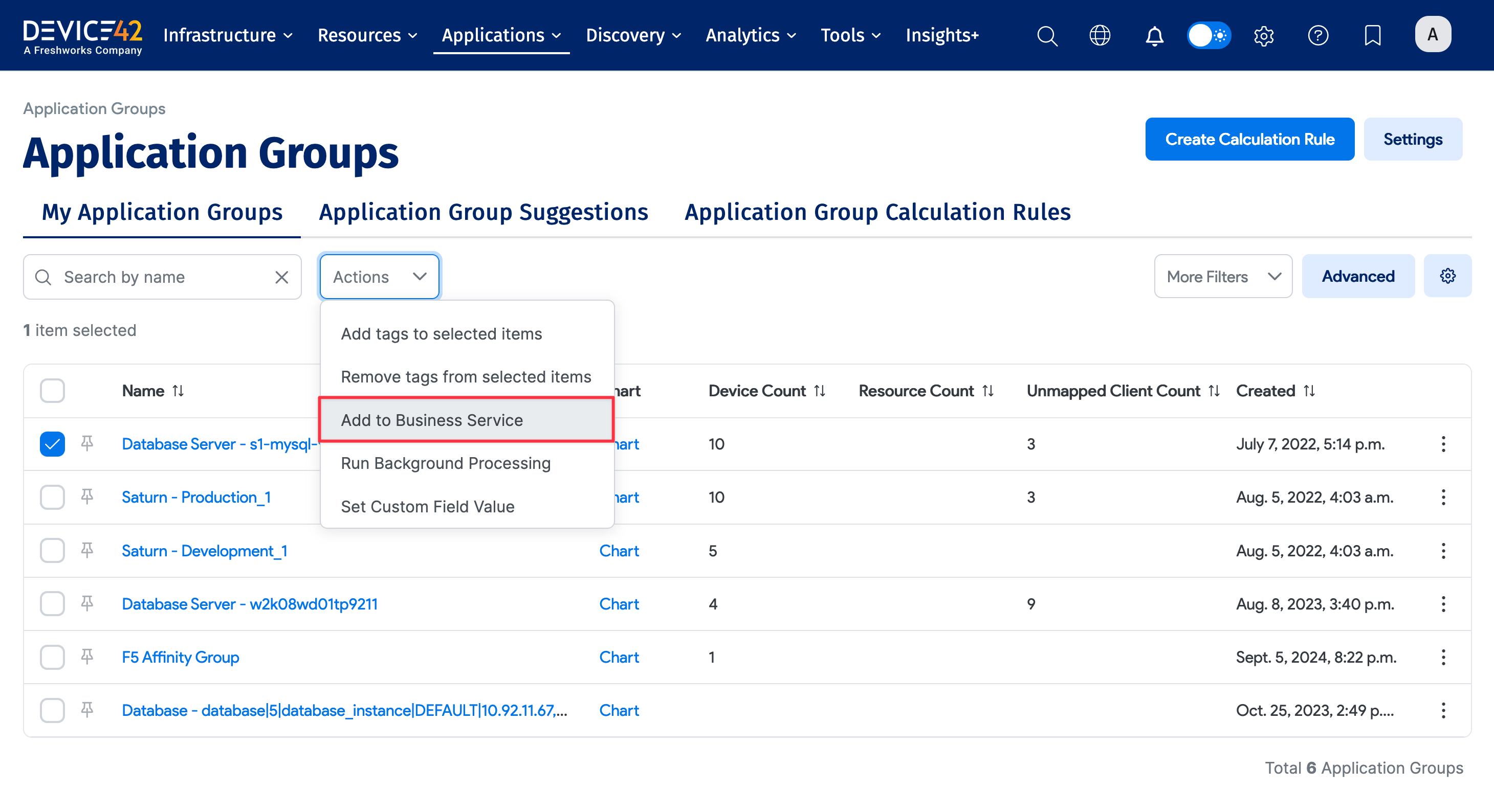

Alternatively, from the Applications > Application Groups list page, select an Application Group and use the Add to Business Service action to link it to an existing Business Service.

Add Devices
Add the physical or virtual machines that power the service to map the underlying infrastructure for capacity planning and impact analysis.

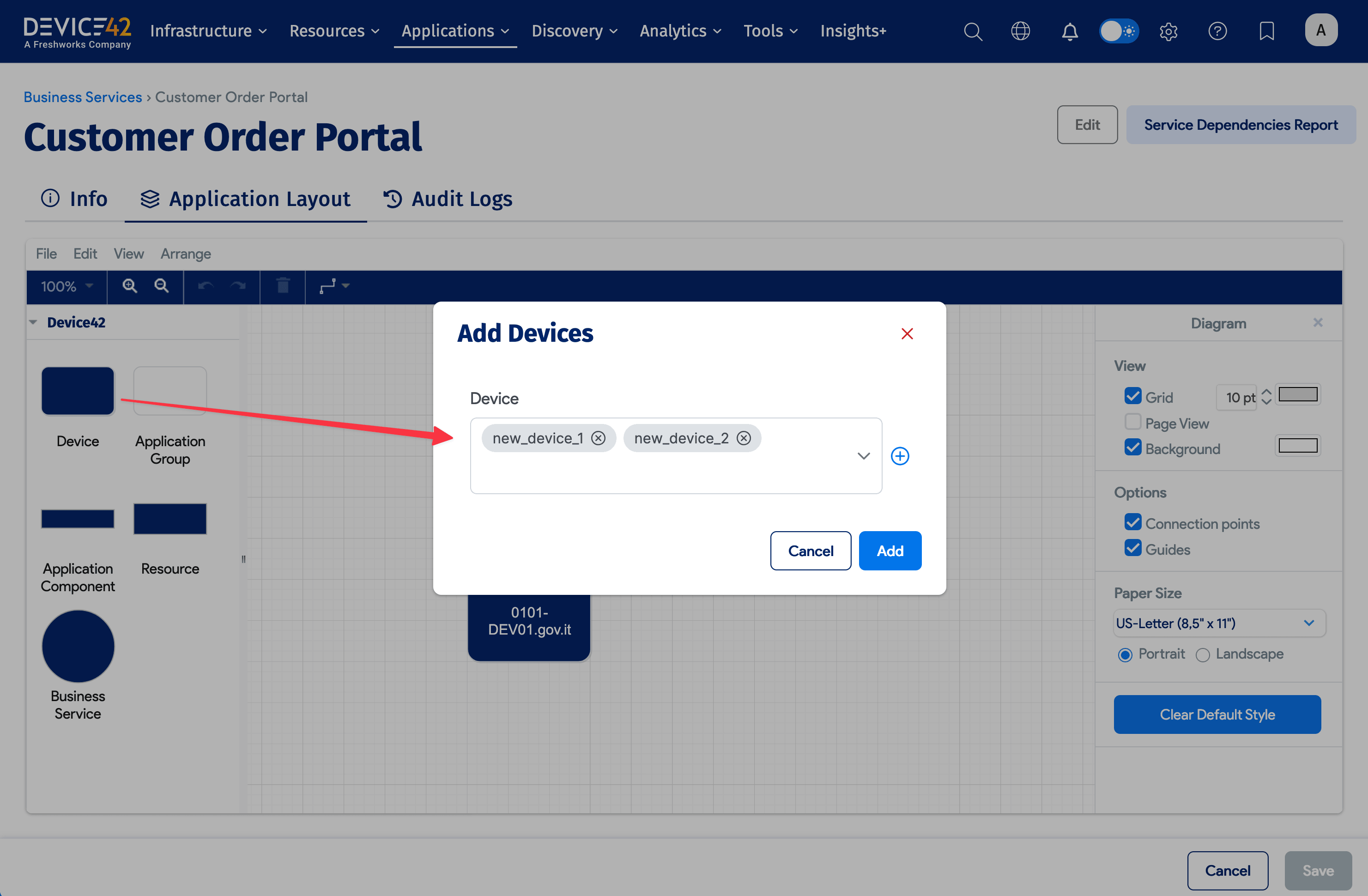

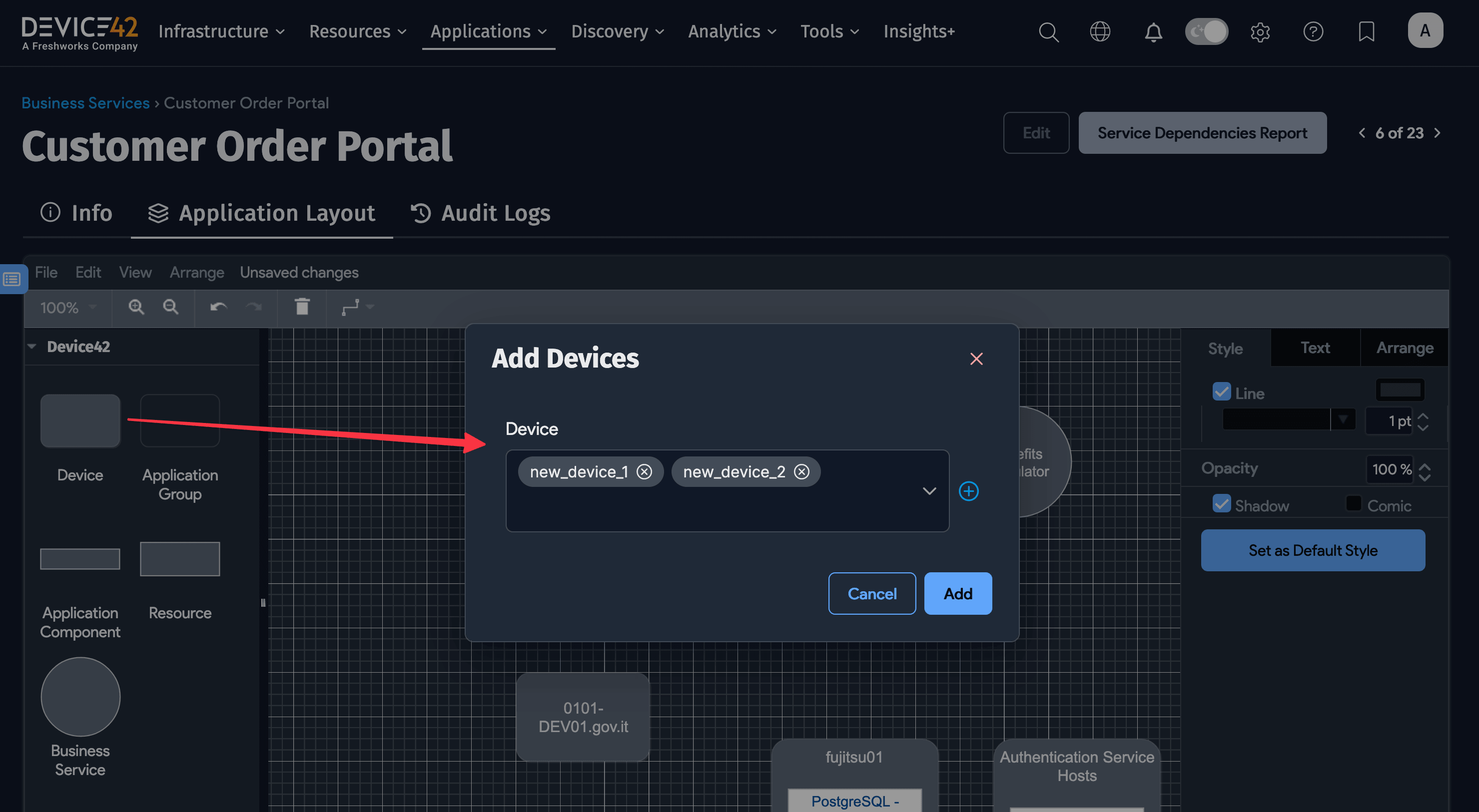

Drag a Device block to the canvas to open the Add Device dialog. Search for a device by name, select it from the list, and click Add. You can also click the + button to create a new device.

Draw Connections

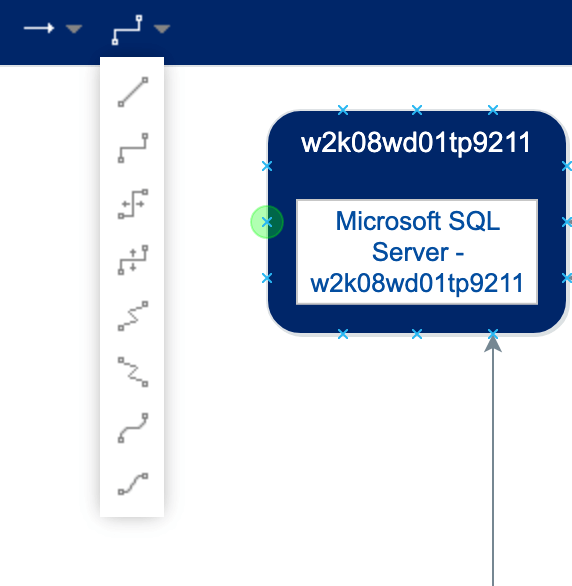

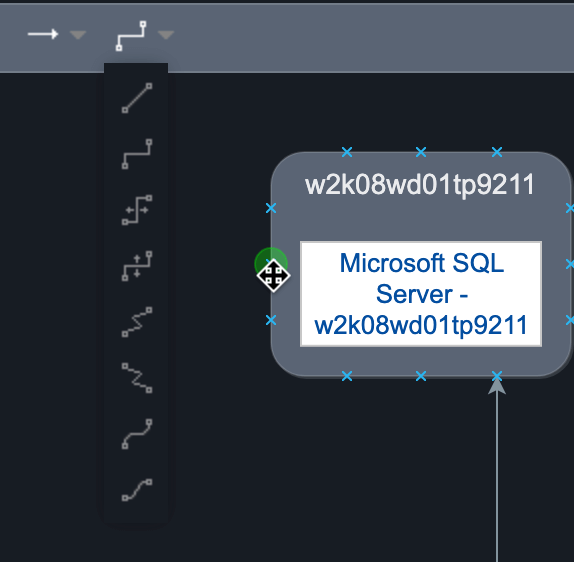

Hover over an item to reveal a green connection point. Click the point and drag to another item to draw a connection line. You can change the line's appearance using the line options dropdown in the toolbar.

Include Text
Double-click anywhere on the canvas to create a text box with a background color.

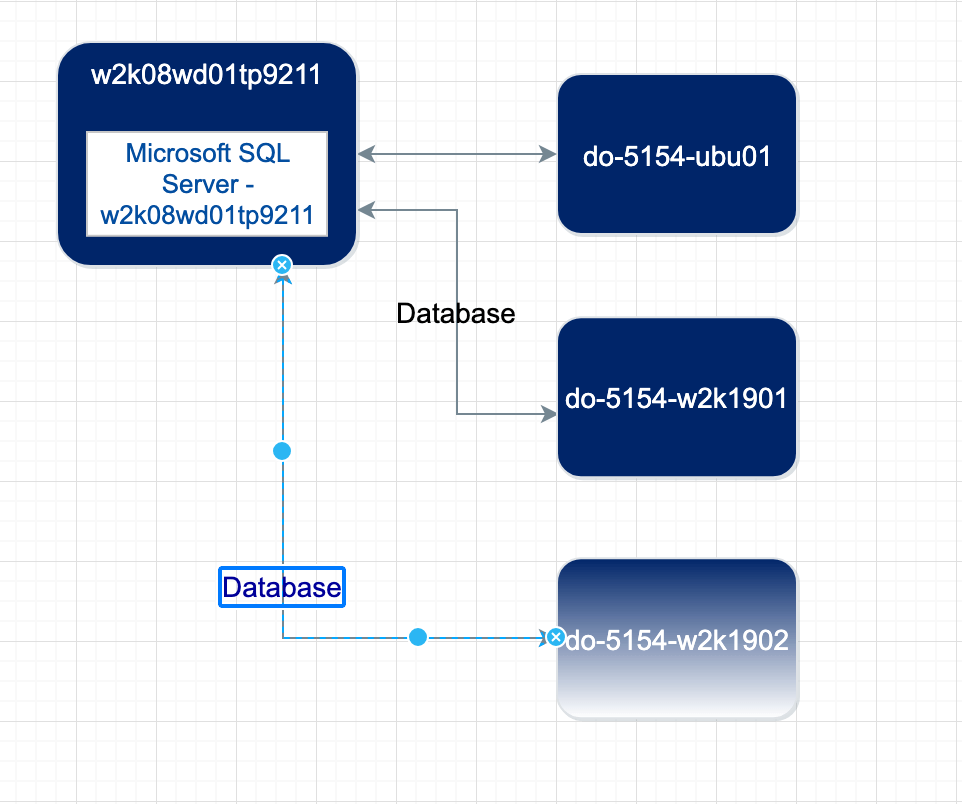

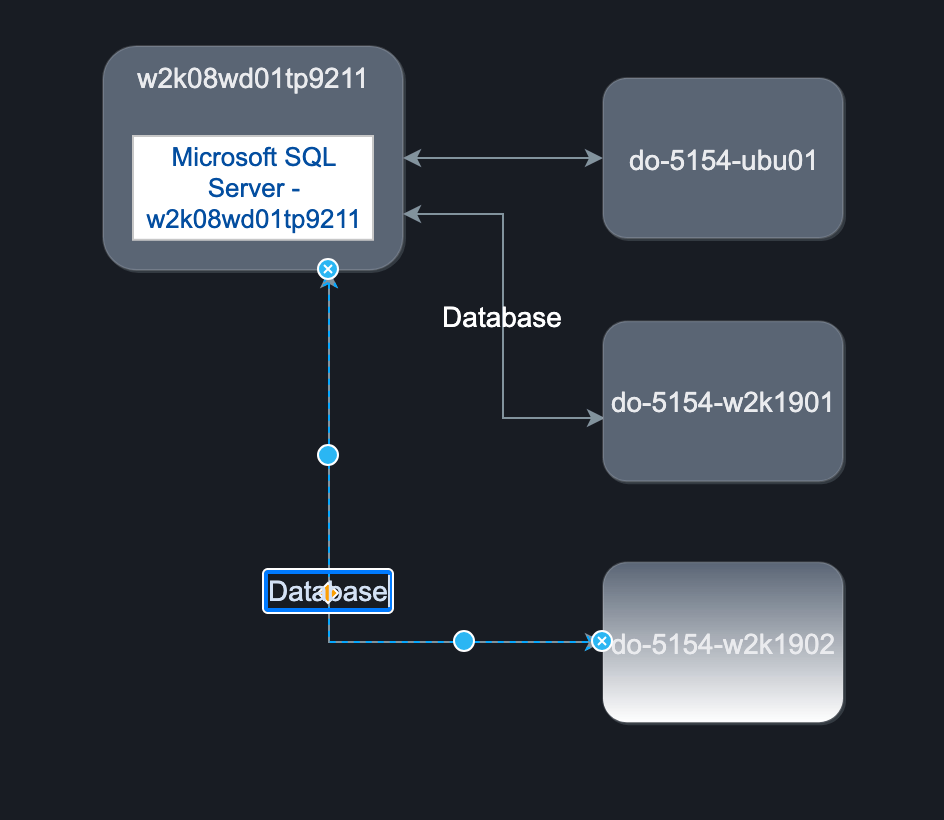

To label connection lines, click on a connection line and type the description or name of the connection it represents.

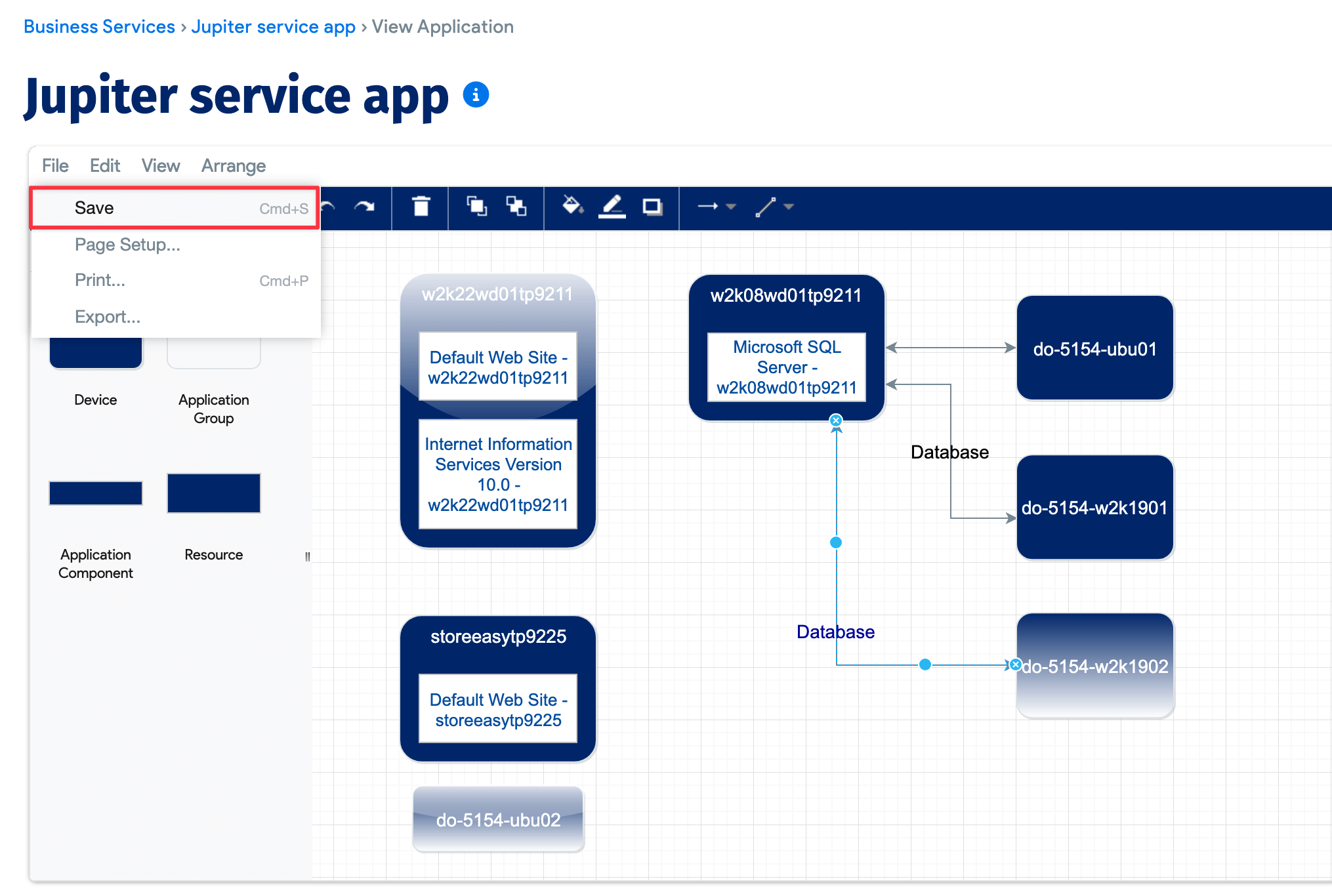

Save the Visualization

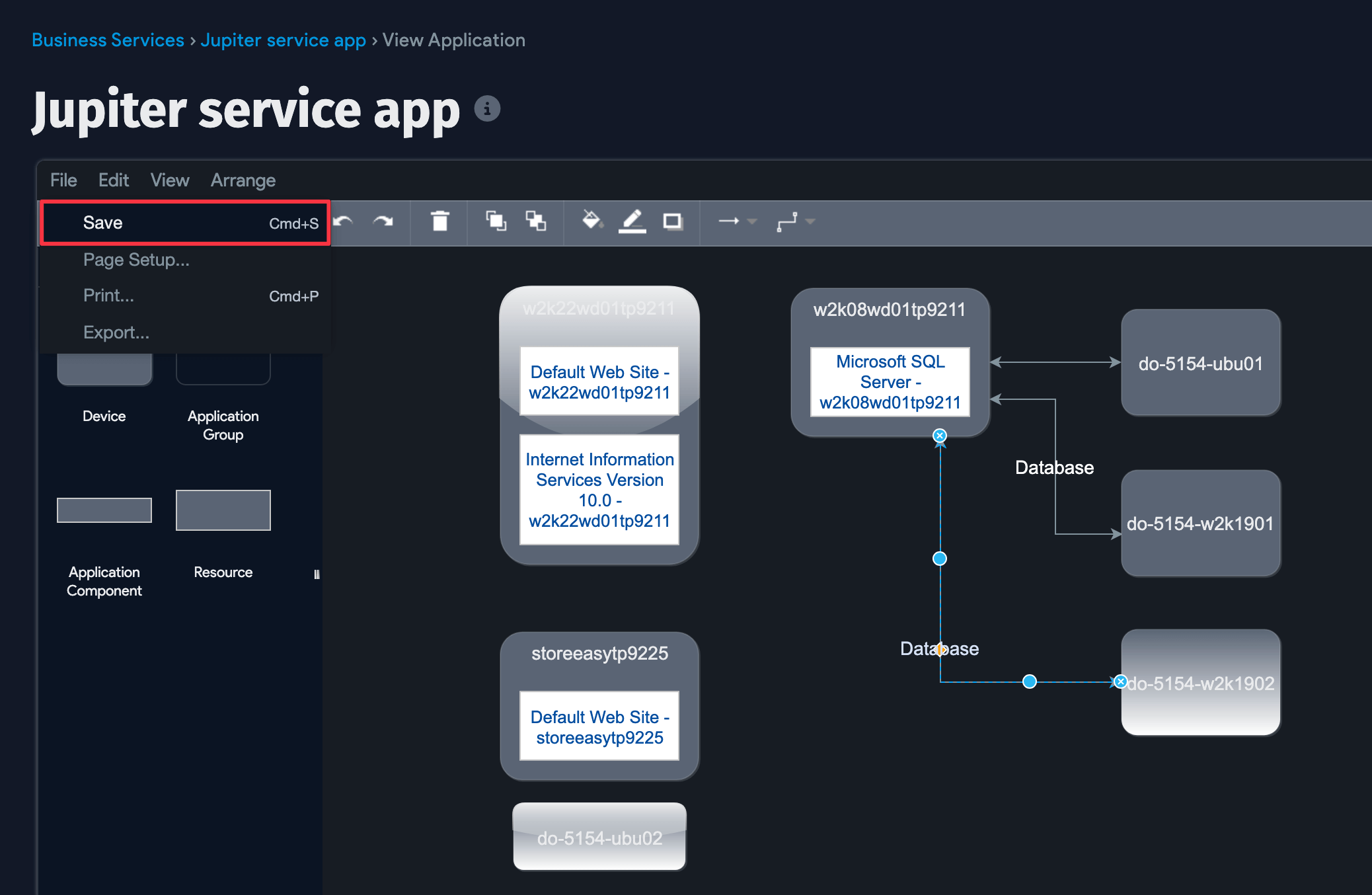

Click the File menu at the top of the canvas and select Save.

Edit the Visualization
You can modify objects and connections directly on the canvas.

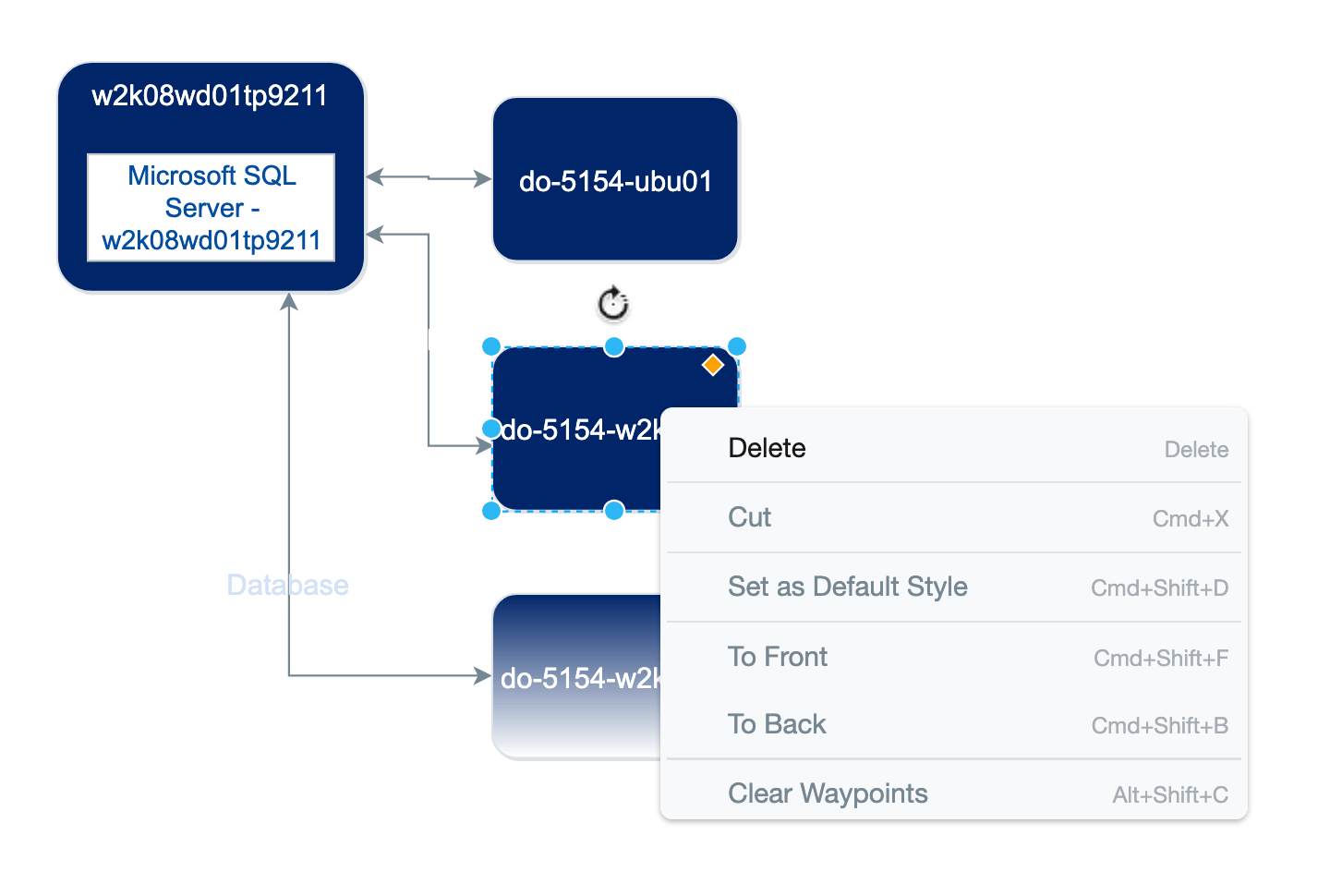

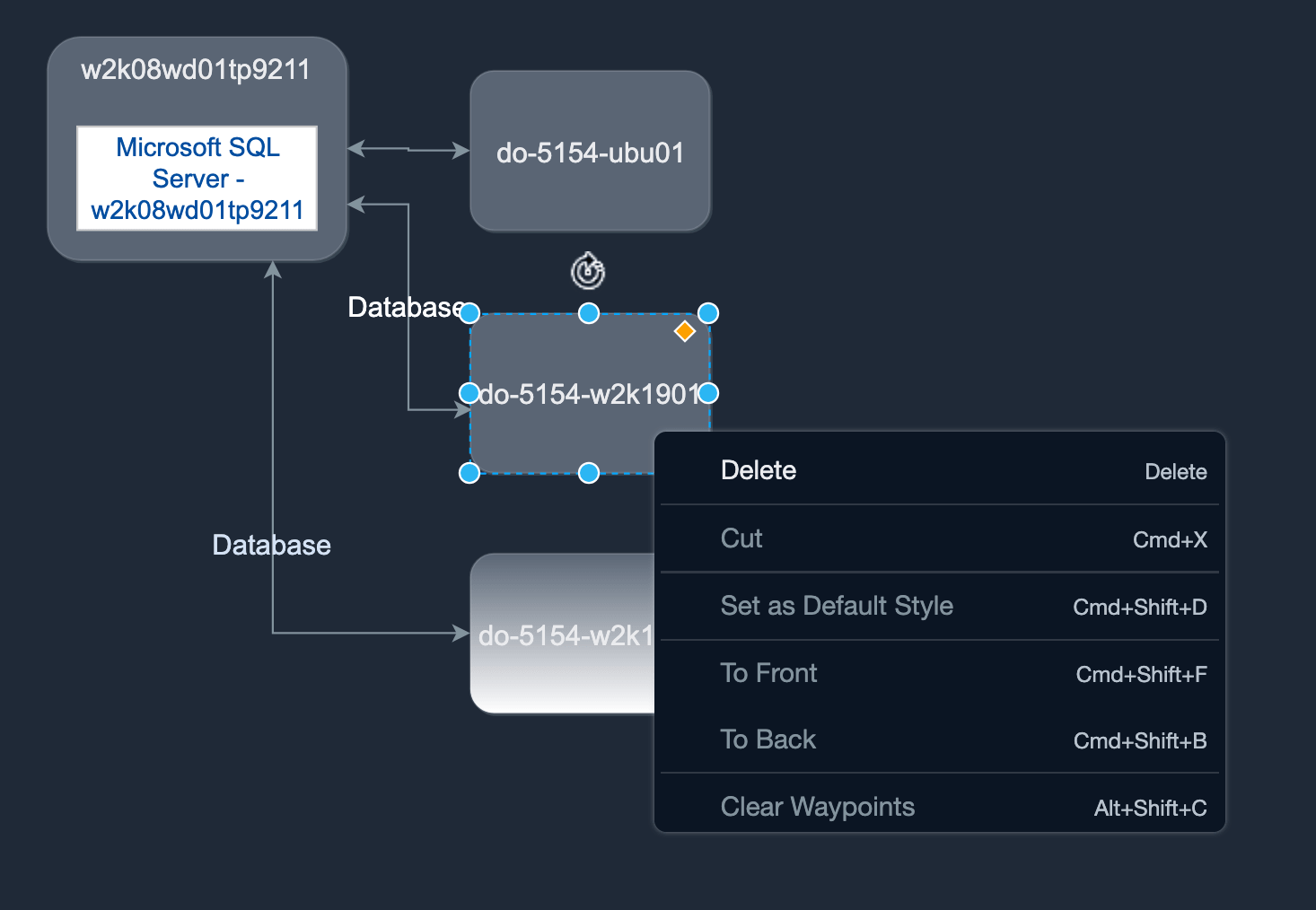

Delete an object: Select it and press the Delete key, or right-click and select Delete from the context menu.

Rename an object: Select it, double-click the name, and type a new name. The renamed label is only for display in this visualization and does not change the underlying record.

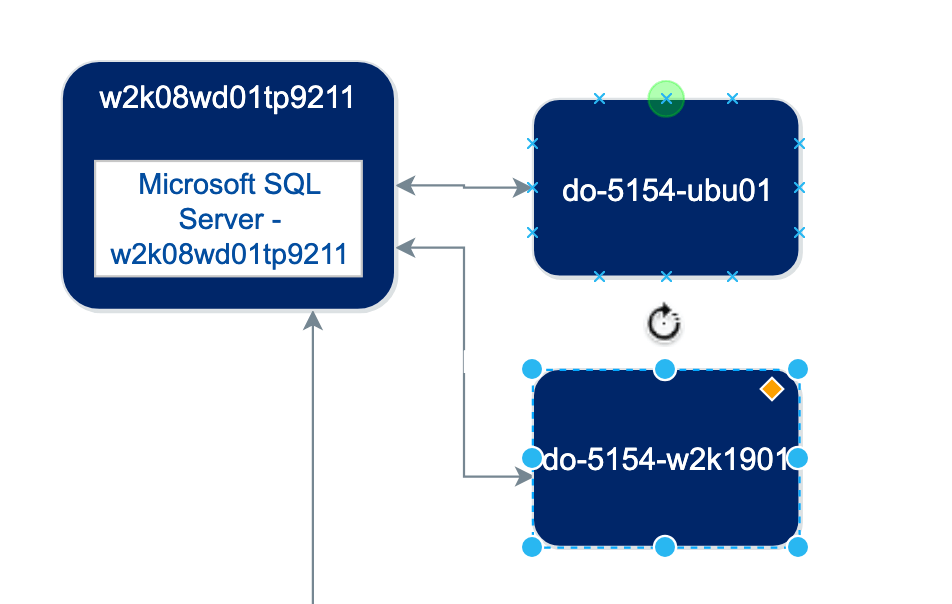

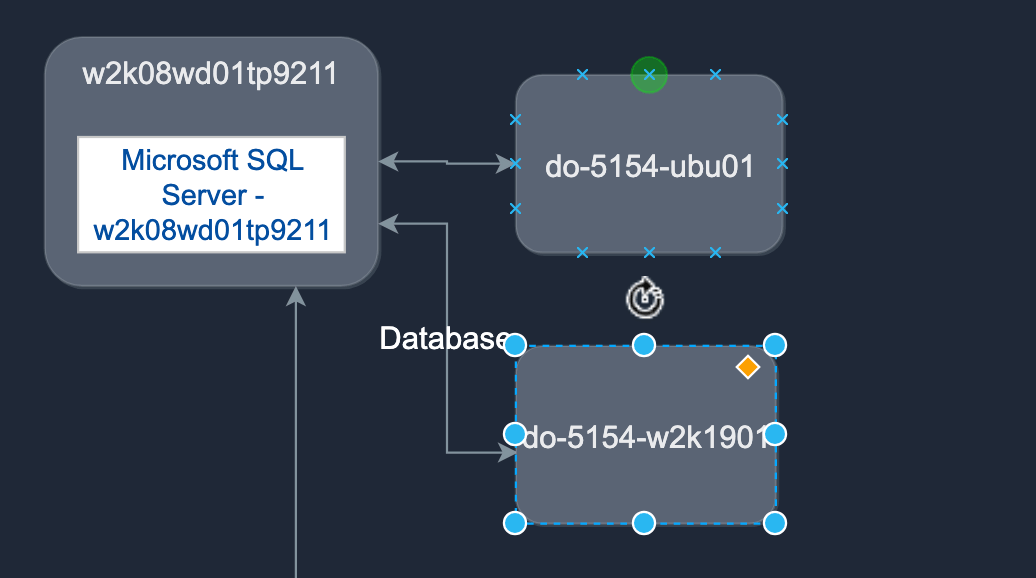

Add or edit connections: Hover over an object to display its connection points (green dots). Click a green dot and drag to connect it to another object.

Removing or deleting objects and connections on the canvas does not affect data stored in Application Groups.
